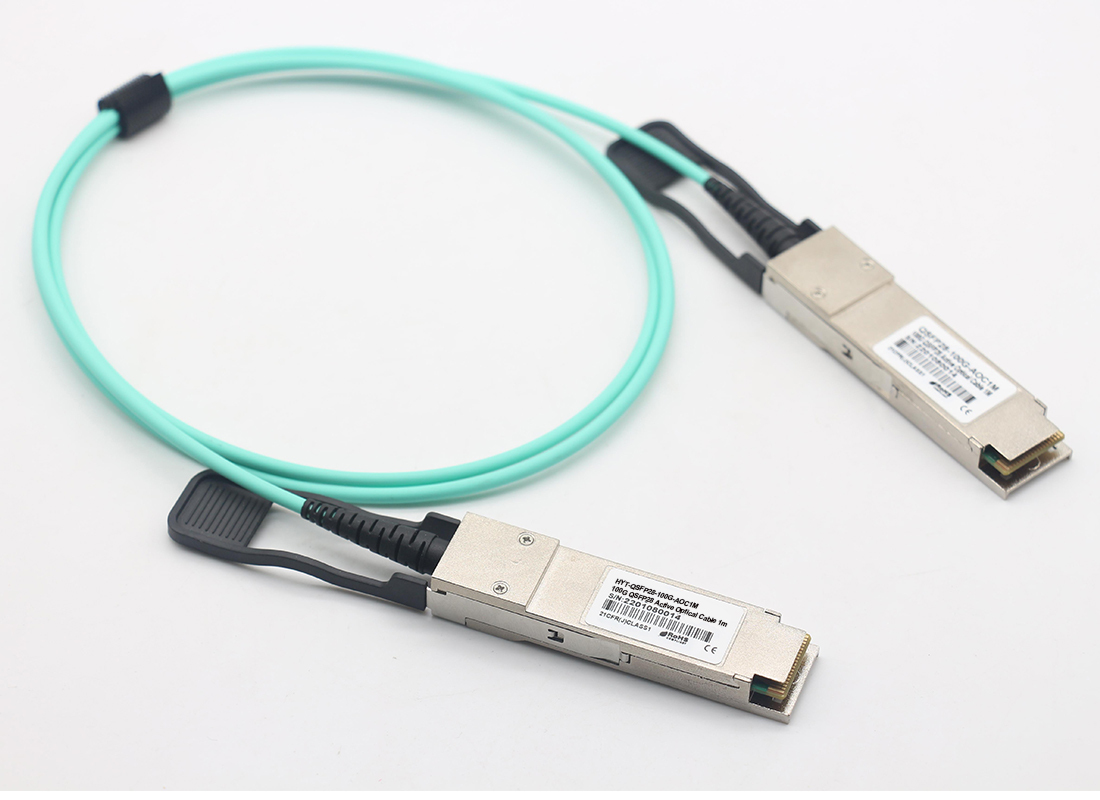

Cisco QSFP-100G-AOC1M Compatible 100G QSFP28 to QSFP28 Active Optical Cable 1m(3ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE acts as a reliable 100g qsfp28 active optical cable manufacturer, offering Cisco QSFP-100G-AOC1M compatible 1m 100G QSFP28 to QSFP28 AOC, 100GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC1M
2 Arista Networks AOC-Q-Q-100G-1M
3  Dell  AOC-QSFP28-100G-1M
4 Juniper Networks  JNP-QSFP28-AOC-1M
5 NVIDIA/Mellanox  MFA1A00-C001
6 H3C QSFP-100G-D-AOC-1M
8 Brocade  QSFP28-100G-AOC-1M
Description

Cisco QSFP-100G-AOC1CM Compatible 100G QSFP28 to QSFP28 Active Optical Cable 1m(3ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

As a professional 100g qsfp28 active optical cable manufacturer, HYTOPTODEVICE provides this Cisco compatible 1m QSFP28 to QSFP28 active optical cable, fully coded to match Cisco QSFP-100G-AOC1M. Built with 850nm VCSEL parallel optical engine, it delivers stable 100Gbps full-duplex transmission, free from electromagnetic interference, perfect for short-distance top-of-rack intra-rack connections inside high-density data centers. We support private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC1M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 1m (3ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100g qsfp28 active optical cable manufactured by us can interoperate with mainstream network brands for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Data center top-of-rack short 100G interconnection
● High performance computing HPC cluster networking
● Storage area network SAN and server rack connectivity
● Enterprise high-density switch interlinks
● 100G Ethernet leaf-spine fabric short-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What transmission distance can this 1m 100G QSFP28 AOC support for intra-rack networking? A: Standard 100G QSFP28 SR4 AOC can reach up to 100m over OM4 multimode fiber. As a trusted 100g qsfp28 active optical cable manufacturer, our 1m model is widely used for short rack-to-rack cabling inside data centers.

Q2: Can this Cisco compatible 100G QSFP28 AOC be deployed in outdoor or non-climate-controlled spaces? A: No, standard data center AOC from our 100g qsfp28 active optical cable manufacturer lineup is designed only for indoor climate-controlled environments ranging from 0°C to 70°C. Outdoor links require armored fiber with separate transceivers.

Q3: What damage may occur if you pull the AOC cable jacket instead of the connector latch during hot swapping? A: AOC internal fiber cores are fragile and cannot withstand axial pulling force. Pulling the outer jacket may detach internal fiber from the transceiver end. Our 100g qsfp28 active optical cable manufacturer recommends operating only by the pull latch.

Q4: Will nearby power cables create EMI noise and affect the signal quality of this 100G QSFP28 AOC? A: No. Data is transmitted via light over glass fiber instead of copper circuits, so the link is fully immune to EMI and RFI noise. This feature keeps our 100g qsfp28 active optical cable stable in dense power-heavy racks.

Q5: Is this 1m 100G QSFP28 AOC suitable for low-latency HPC and financial trading cluster links? A: Yes. It delivers minimal latency, flexible routing and excellent anti-interference capability, making products from our 100g qsfp28 active optical cable manufacturer suitable for HPC and low-latency data center fabrics.

Q6: What information should I provide when ordering third-party 100G QSFP28 AOC for Cisco Nexus switches? A: Confirm your exact switch model and running firmware release when placing orders. Wrong EEPROM coding will cause port not supported errors. Our 100g qsfp28 active optical cable is pre-coded for Cisco platforms.

Q7: Will Cisco firmware updates lead to compatibility issues for aftermarket 100G QSFP28 AOC? A: MSA-compliant AOC like ours works smoothly through most minor firmware updates. Rare strict vendor lock policies may block third-party modules, and our 100g qsfp28 active optical cable manufacturer can offer re-coding support.

Q8: Can our engineering team rewrite the AOC EEPROM on-site to adapt to other brand switches? A: On-site reflashing requires dedicated programming hardware and software. Confirm your target hardware before purchase. HYTOPTODEVICE, your 100g qsfp28 active optical cable manufacturer, provides coding boards and software as technical support.

Q9: Is open-source network OS SONiC compatible with this Cisco matched 100G QSFP28 AOC? A: Yes. SONiC follows MSA specifications without strict vendor lock-in. Our 100g qsfp28 active optical cable supports plug-and-play operation on open-source switch OS.

Q10: Do both ends of this direct-connect 100G AOC need separate EEPROM configuration? A: Yes, each QSFP28 end requires EEPROM data matching the connected network device. Our 100g qsfp28 active optical cable manufacturer will complete dual-end coding according to your connection topology.

Q11: Which rack thermal conditions will trigger overheating faults on QSFP28 AOC transceiver modules? A: The modules are rated 0°C–70°C. Poor airflow and enclosed hot racks rapidly increase module temperature. You can view real-time temperature via DDM diagnostics from our 100g qsfp28 active optical cable.

Q12: Will long-time high-temperature operation reduce the service life of 100G QSFP28 AOC? A: Long-term operation near or above 70°C accelerates laser diode aging and reduces service life. Our 100g qsfp28 active optical cable passes temperature cycling testing for stable reliability.

Q13: Does this 100G QSFP28 AOC meet low power consumption standards for green data center construction? A: Yes. Its power consumption stays below 1.4W, helping reduce total power draw for energy-efficient data center builds from our 100g qsfp28 active optical cable manufacturer.

Q14: What harm will extrusion or heavy compression bring to a QSFP28 active optical cable? A: Heavy compression can crack internal glass fibers and break the optical path even if the outer jacket remains intact. Avoid crushing and tight bending when routing our 100g qsfp28 active optical cable.

Q15: What is the plug and unplug cycle rating for the pull-tab latches on these 100G QSFP28 AOC connectors? A: Standard pull-release latches support roughly 50–100 normal insertion cycles. Rough pulling on the cable body easily breaks the latch. Every cable from our 100g qsfp28 active optical cable manufacturer goes through latch inspection before shipment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
