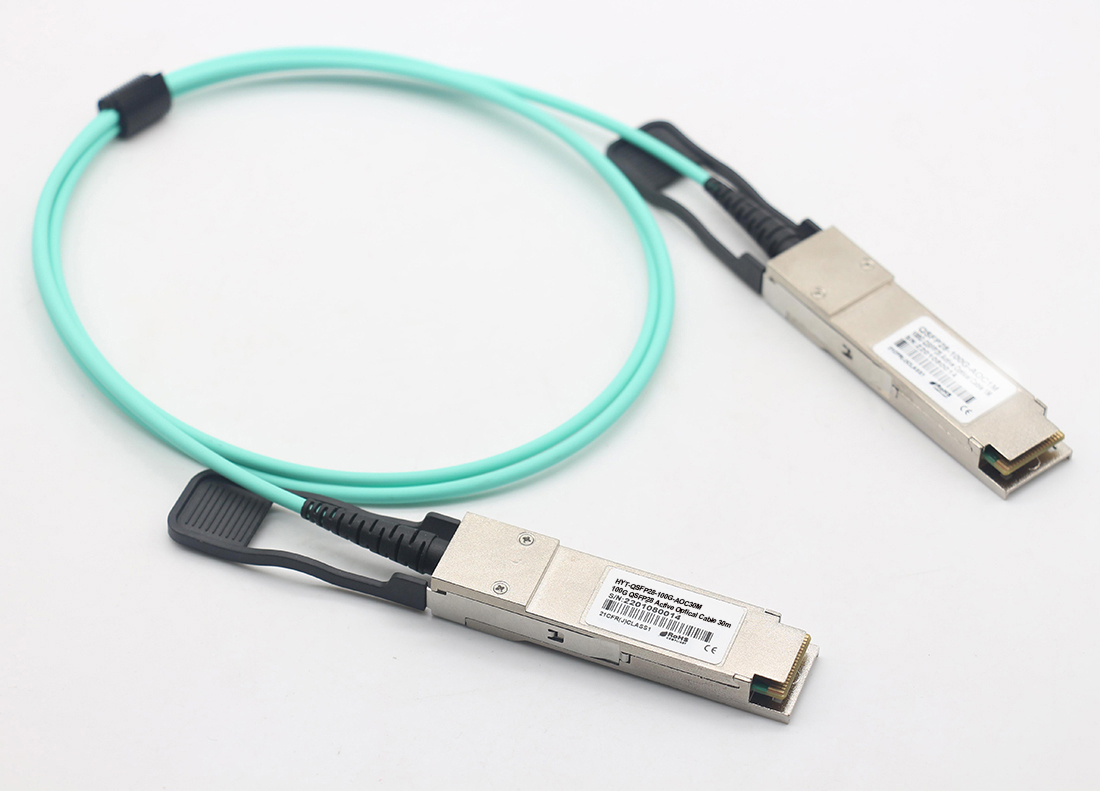

Cisco QSFP-100G-AOC30M Compatible 100G QSFP28 Active Optical Cable 30m(98ft) Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco compatible 100g qsfp28 active fiber optic cable 30m, Cisco QSFP-100G-AOC30M compatible 30m 100G QSFP28 AOC, built with 100GBASE-SR4 multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available, suitable for large data center inter-row uplinks, HPC cluster and SAN interconnection. Factory direct bulk wholesale, sample available and flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC30M
2 Arista Networks AOC-Q-Q-100G-30M
3  Dell  AOC-QSFP28-100G-30M
4 Juniper Networks  JNP-QSFP28-AOC-30M
5 NVIDIA/Mellanox  MFA1A00-C030
6 H3C QSFP-100G-D-AOC-30M
7 Brocade  QSFP28-100G-AOC-30M
Description

Cisco QSFP-100G-AOC30M Compatible 100G QSFP28 Active Optical Cable 30m(98ft) Bulk Factory Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE supplies cisco compatible 100g qsfp28 active fiber optic cable 30m, Cisco QSFP-100G-AOC30M compatible 30m 100G QSFP28 AOC, built with 100GBASE-SR4 multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available, suitable for large data center inter-row uplinks, HPC cluster and SAN interconnection. Factory direct bulk wholesale, sample available and flexible MOQ.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC30M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 30m (98ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible 100g qsfp28 active fiber optic cable 30m from our factory can interoperate with mainstream network hardware for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Extended inter-row 100G interconnection in large data center
● High performance computing HPC cluster cross-bay interlinks
● Storage area network SAN and long-distance server rack uplink
● Enterprise high-density switch fabric extended interconnections
● 100G Ethernet leaf-spine long-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What reach can a standard 100G QSFP28 AOC support for data center links?

A: 100G QSFP28 AOC products deliver reliable connectivity from 1m up to 100m when paired with OM3 or OM4 multimode fiber, which makes our cisco compatible 100g qsfp28 active fiber optic cable 30m a solid choice for long intra-rack and cross-rack high-speed data center connections.

Q2: Can I install this 100G QSFP28 AOC cable outdoors or in spaces without temperature control?

A: No. Standard enterprise AOCs including the HYTOPTODEVICE 30m 100G AOC are designed exclusively for indoor climate-controlled environments ranging from 0°C to 70°C, lacking armored construction and weatherproof coatings for outdoor exposure.

Q3: Is it possible to use these 100G QSFP28 AOC cables to connect network switches on separate floors?

A: It works if your required cable length falls within the AOC maximum reach of 100m. For multi-floor or building-to-building transmission, standalone transceivers plus structured fiber cabling are usually more suitable.

Q4: Is split-brand EEPROM coding available for a direct link with Cisco on one end and Arista on the other?

A: Yes. HYTOPTODEVICE provides custom split coding options for this cisco compatible 100g qsfp28 active fiber optic cable 30m, ensuring each connector establishes correct handshake communication with its matched vendor hardware.

Q5: Are these 100G AOC cables built to comply with MSA industry specifications?

A: Yes. Mechanical and electrical interfaces conform to SFF-8665 QSFP28 MSA standards, ensuring stable interoperability with validated network devices.

Q6: What are the common reasons that a 100G link stays down after plugging in the AOC cable?

A: Typical causes include incorrect port speed settings, disabled FEC functions, mismatched EEPROM vendor coding, or loose connector contact. You can check these points first when troubleshooting your Cisco switch deployment.

Q7: Can this regular QSFP28 to QSFP28 AOC split one 100G port into four separate 25G SFP28 channels?

A: Standard point-to-point 100G AOC cannot fan out signals. If you need 4×25G breakout connectivity, you have to select a dedicated 100G QSFP28 to 4x 25G SFP28 breakout AOC instead.

Q8: Does this 100G QSFP28 AOC support jumbo frame transmission such as 9000-byte MTU?

A: Yes. This HYTOPTODEVICE active optical cable forwards Ethernet frames transparently, supporting jumbo frames and standard frame sizes without packet fragmentation.

Q9: Will the internal fiber strands get damaged if someone accidentally steps on this AOC cable?

A: Yes. Crushing or stepping on the cable can crack internal glass fibers and break the optical transmission path, even if there is no obvious damage on the outer jacket.

Q10: Are 100G AOC cables heavy enough to create port sag and mechanical stress on switch ports?

A: No. AOCs are much lighter than copper DAC alternatives. This cisco compatible 100g qsfp28 active fiber optic cable 30m brings minimal mechanical load and prevents port sag on switch cages.

Q11: Under what circumstances should I pick passive copper DAC instead of a 100G AOC?

A: Select passive DAC when your link distance is within 2–3 meters. At 100G rate, copper reach is limited, yet DACs cost less, consume zero power and offer better physical durability for short-range connections.

Q12: Which use cases favor separate transceivers plus fiber patch cords over integrated AOC assemblies?

A: Separate optics and patch cords work better for routing through patch panels, mixing different cable lengths, or replacing individual damaged fiber cords without swapping the whole cable assembly.

Q13: How can I test this 100G AOC and confirm its performance before putting it into production networks?

A: Run bench testing on staging switches, confirm stable link status, check interface counters for zero CRC errors, and review DOM readings to verify acceptable optical power levels.

Q14: What support options are available if I receive the wrong vendor coding for compatibility?

A: HYTOPTODEVICE provides flexible exchange, re-programming and return services for sample and bulk orders, resolving compatibility issues when vendor coding fails to match your network hardware.

Q15: How does integrated 100G AOC reduce power consumption compared to discrete modular optics?

A: Integrated AOC assemblies like our cisco compatible 100g qsfp28 active fiber optic cable 30m adopt optimized power design, consuming less power and generating less heat than paired standalone transceivers plus fiber patch cords.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
