| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-100G-AOC3M | |
| 2 | Arista Networks | AOC-Q-Q-100G-3M | |
| 3 | Dell | AOC-QSFP28-100G-3M | |
| 4 | Juniper Networks | JNP-QSFP28-AOC-3M | |
| 5 | NVIDIA/Mellanox | MFA1A00-C003 | |
| 6 | H3C | QSFP-100G-D-AOC-3M | |
| 7 | Brocade | QSFP28-100G-AOC-3M |

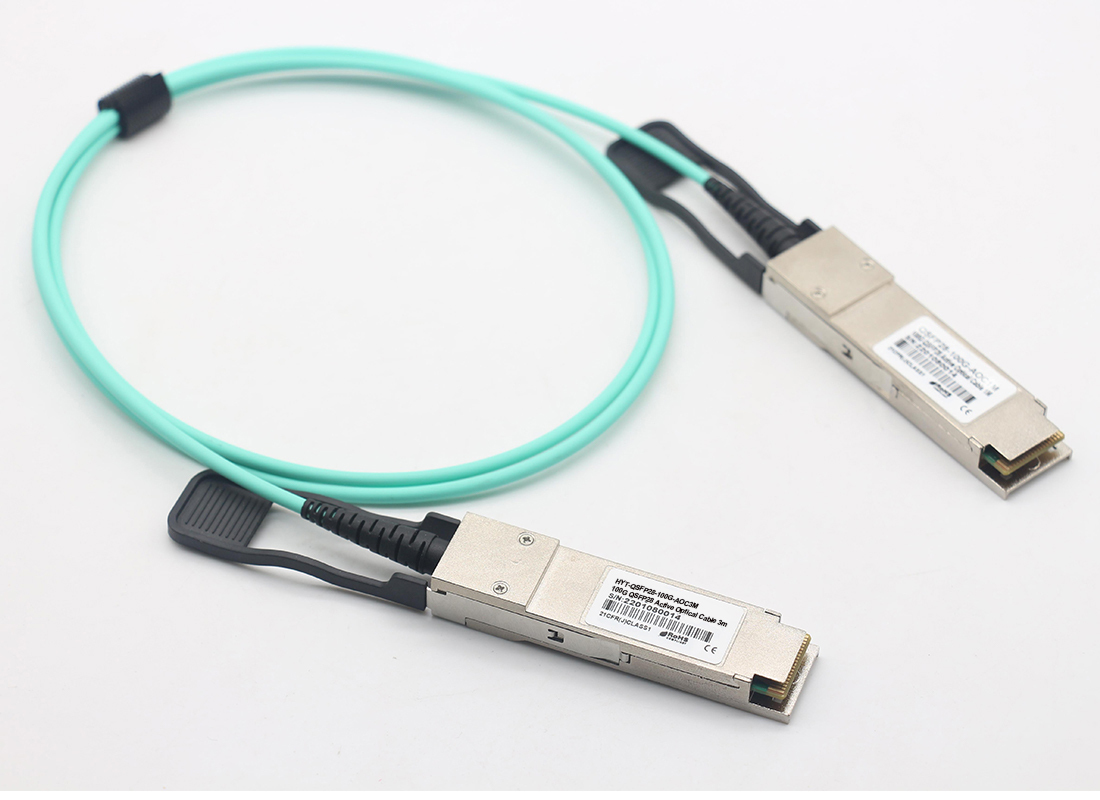

Key Technical Specifications
| Cisco Compatible |
QSFP-100G-AOC3M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28 to QSFP28 | Max Data Rate | 100Gbps |
| Operating Wavelength | 850nm | Fiber Cable | OM3 MMF |
| Cable Length | 3m (10ft) | Power Consumption | ≤2.2W |
| Jacket Material | OFNP | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Minimum Bend Radius | 30mm | Protocols | IEEE 802.3 bm, SFF-8665 |
| Application |
100G Ethernet
|
Warranty | 5 Years |
Usage Guidelines & Best Practices
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this cisco compatible 100G QSFP28 aoc active optical cable supplied by us can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.






Q1: What transmission distance can this 3m cisco compatible 100g qsfp28 aoc active optical cable support for rack-to-rack links? A: Standard 100G QSFP28 SR4 AOC can reach up to 100m over OM4 multimode fiber. Our 3m model is engineered for reliable mid-distance rack-to-rack cabling within data center environments.
Q2: Can this Cisco compatible 100G QSFP28 AOC run in outdoor or non-temperature-controlled deployment spaces? A: No, standard data center AOC from our cisco compatible 100g qsfp28 aoc active optical cable lineup is designed only for indoor climate-controlled environments ranging from 0°C to 70°C. Outdoor links require armored fiber with separate transceivers.
Q3: What damage will occur if technicians pull the cable jacket instead of the connector latch during hot swap? A: AOC internal fiber cores are fragile and cannot withstand axial pulling force. Pulling the outer jacket may detach internal fiber from the transceiver end. Our cisco compatible 100g qsfp28 aoc active optical cable supplier recommends operating only by the pull latch.
Q4: Can nearby power distribution cables cause EMI interference and degrade signal quality of this 100G QSFP28 AOC? A: No. Data is transmitted via light over glass fiber instead of copper circuits, so the link is fully immune to EMI and RFI noise. This feature keeps our cisco compatible 100g qsfp28 aoc active optical cable stable in dense power-heavy racks.
Q5: Is this 3m 100G QSFP28 AOC suitable for low-latency HPC and trading cluster interconnections? A: Yes. It delivers minimal latency, flexible routing and excellent anti-interference capability, making our cisco compatible 100g qsfp28 aoc active optical cable suitable for HPC and low-latency data center fabrics.
Q6: What details should I provide when ordering third-party 100G QSFP28 AOC for Cisco Nexus switches? A: Confirm your exact switch model and running firmware release when placing orders. Wrong EEPROM coding will cause port not supported errors. Our cisco compatible 100g qsfp28 aoc active optical cable is pre-coded for Cisco platforms.
Q7: Will Cisco firmware upgrades trigger compatibility failures for aftermarket 100G QSFP28 AOC? A: MSA-compliant AOC like ours works smoothly through most minor firmware updates. Rare strict vendor lock policies may block third-party modules, and our cisco compatible 100g qsfp28 aoc active optical cable supplier can offer re-coding support.
Q8: Is it possible to reflash the AOC EEPROM on-site to match other brand network switches? A: On-site reflashing requires dedicated programming hardware and software. Confirm your target hardware before purchase. HYTOPTODEVICE, your cisco compatible 100g qsfp28 aoc active optical cable supplier, provides coding boards and software as technical support.
Q9: Does open networking OS SONiC support plug-and-play with this Cisco matched 100G QSFP28 AOC? A: Yes. SONiC follows MSA specifications without strict vendor lock-in. Our cisco compatible 100g qsfp28 aoc active optical cable supports plug-and-play operation on open-source switch OS.
Q10: Do both QSFP28 ends of this direct 100G AOC require separate EEPROM programming? A: Yes, each QSFP28 end requires EEPROM data matching the connected network device. Our cisco compatible 100g qsfp28 aoc active optical cable supplier will complete dual-end coding according to your connection topology.
Q11: What rack thermal conditions may lead to overheating of the integrated QSFP28 AOC transceivers? A: The modules are rated 0°C–70°C. Poor airflow and enclosed hot racks rapidly increase module temperature. You can view real-time temperature via DDM diagnostics from our cisco compatible 100g qsfp28 aoc active optical cable.
Q12: Will prolonged high-temperature operation shorten the service life of this 100G QSFP28 AOC? A: Long-term operation near or above 70°C accelerates laser diode aging and reduces service life. Our cisco compatible 100g qsfp28 aoc active optical cable passes temperature cycling testing for stable reliability.
Q13: Does this 100G QSFP28 AOC fit low-power requirements for green data center infrastructure? A: Yes. Its power consumption stays below 1.4W, helping reduce total power draw for energy-efficient data center builds from our cisco compatible 100g qsfp28 aoc active optical cable supplier.
Q14: What risks are brought by squeezing or heavy compression on a QSFP28 active optical cable? A: Heavy compression can crack internal glass fibers and break the optical path even if the outer jacket remains intact. Avoid crushing and tight bending when routing our cisco compatible 100g qsfp28 aoc active optical cable.
Q15: What is the rated plug/unplug cycle for the pull-tab latches on these 100G QSFP28 AOC connectors? A: Standard pull-release latches support roughly 50–100 normal insertion cycles. Rough pulling on the cable body easily breaks the latch. Every cable from our cisco compatible 100g qsfp28 aoc active optical cable supplier goes through latch inspection before shipment.
Packaging & Custom OEM Solutions
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
