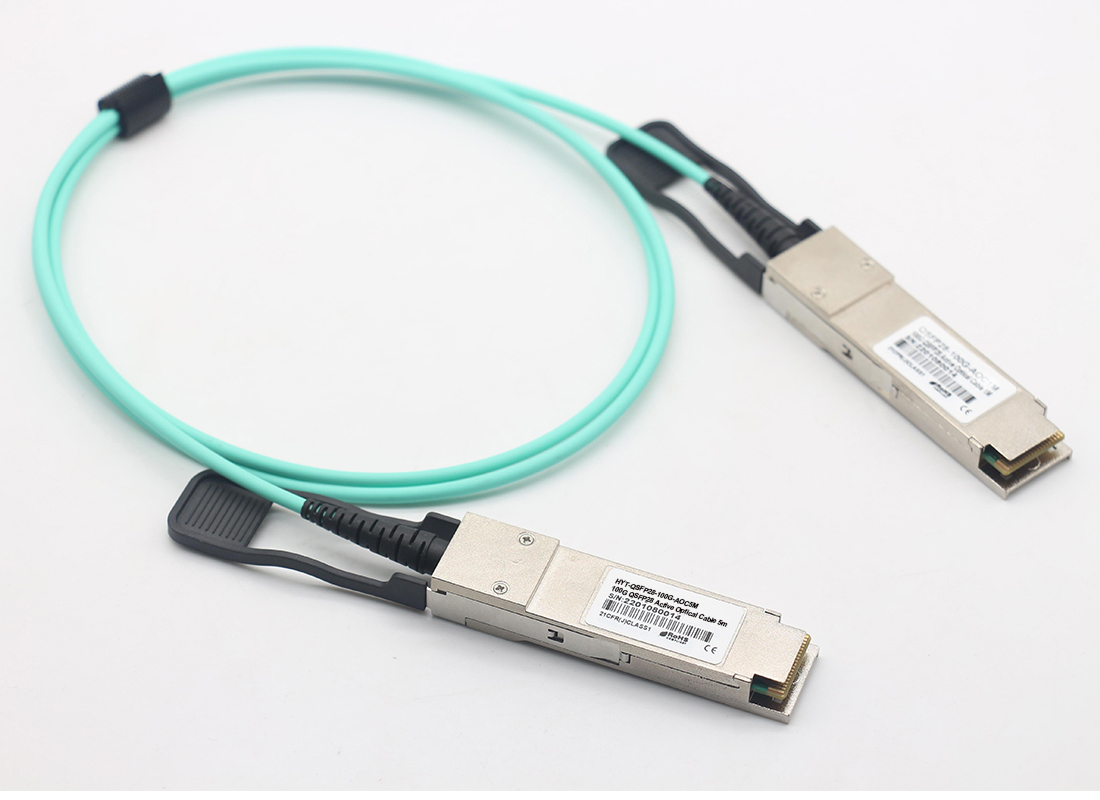

 Cisco QSFP-100G-AOC5M Compatible 100G QSFP28  Active Optical Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE acts as a reliable supplier of Cisco compatible 100g active optical cable 5m, offering Cisco QSFP-100G-AOC5M compatible 5m 100G QSFP28 to QSFP28 AOC, 100GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC5M
2 Arista Networks AOC-Q-Q-100G-5M
3  Dell  AOC-QSFP28-100G-5M
4 Juniper Networks  JNP-QSFP28-AOC-5M
5 NVIDIA/Mellanox  MFA1A00-C005
6 H3C QSFP-100G-D-AOC-5M
7 Brocade  QSFP28-100G-AOC-5M
Description

 Cisco QSFP-100G-AOC5M Compatible 100G QSFP28  Active Optical Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

As a professional supplier of Cisco compatible 100g active optical cable 5m, HYTOPTODEVICE provides this Cisco compatible 5m QSFP28 to QSFP28 active optical cable, fully coded to match Cisco QSFP-100G-AOC5M. Built with 850nm VCSEL parallel optical engine, it delivers stable 100Gbps full-duplex transmission, free from electromagnetic interference, perfect for cross-rack medium-range connections inside high-density data centers. We support private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC5M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 5m (16ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this Cisco compatible 100g active optical cable 5m supplied by us can interoperate with mainstream network brands for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Data center top-of-rack short 100G interconnection
● High performance computing HPC cluster networking
● Storage area network SAN and server rack connectivity
● Enterprise high-density switch interlinks
● 100G Ethernet leaf-spine fabric short-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: How does latency on a 5m Cisco compatible 100G QSFP28 AOC compare to 100G copper DAC? A: This Cisco compatible 100g active optical cable 5m brings only nanosecond-scale latency from internal electro-optical conversion circuits. The tiny delay will not hinder HPC, cloud and enterprise data center workloads from HYTOPTODEVICE.

Q2: Will tight coiling or sharp bends permanently damage the fiber inside 100G QSFP28 AOC assemblies? A: Yes. These 100G AOCs follow a 30mm minimum bend radius specification. Bending beyond this limit may crack internal glass fiber and permanently break the 100G link of our Cisco compatible 100g active optical cable 5m.

Q3: Can high-voltage power trunking near data center racks create EMI issues for 100G active optical cabling? A: No. Signal transmission relies on light pulses inside glass fiber instead of electrical signals. The Cisco compatible 100g active optical cable 5m from HYTOPTODEVICE is fully immune to electromagnetic interference.

Q4: Is signal jitter a common concern for 100G QSFP28 AOC cross-rack links? A: No. Integrated CDR circuits inside each transceiver recover and clean high-speed signals, keeping bit error rates extremely low for our Cisco compatible 100g active optical cable 5m in dense fabric environments.

Q5: Can unconfigured third-party 100G AOC run plug-and-play on Cisco and NVIDIA Mellanox switches without transceiver error alerts? A: You need to select the correct EEPROM coding matching your hardware during ordering. Improper coding will trigger transceiver unsupported warnings. HYTOPTODEVICE pre-codes this Cisco compatible 100g active optical cable 5m for Cisco platforms.

Q6: Can Cisco switch firmware updates render aftermarket 100G QSFP28 AOC non-functional? A: MSA-standard EEPROM chips fitted on our Cisco compatible 100g active optical cable 5m tolerate most minor firmware upgrades. Rare strict vendor lock policies may block third-party cables, and we offer re-coding support.

Q7: Are generic 100G AOCs compatible with white-box switches running SONiC or Cumulus Linux? A: Yes. Open-source network operating systems rarely enforce rigid vendor lock-in. Our Cisco compatible 100g active optical cable 5m supports simple plug-and-play deployment on open networking switches.

Q8: Do I need matched EEPROM settings on both ends for a cross-rack 100G AOC direct link? A: Yes. Each QSFP28 end must carry EEPROM data matching the connected switch or server port. HYTOPTODEVICE completes dual-end programming for this Cisco compatible 100g active optical cable 5m based on your connection topology.

Q9: Is manual FEC port setup required for reliable 100G AOC cross-rack interconnections? A: Most 100G fabric links require Reed-Solomon FEC enabled on switch ports to maintain stable transmission. The exact rule depends on your switch vendor and link length for our Cisco compatible 100g active optical cable 5m.

Q10: What commands confirm that a Cisco switch correctly identifies a 100G QSFP28 AOC transceiver? A: You can run CLI commands including show interface transceiver or show inventory to validate module detection. This Cisco compatible 100g active optical cable 5m supports full DDM reporting for easy status checking.

Q11: What troubleshooting steps fix intermittent link flapping after installing 100G cross-rack AOC? A: Review switch error counters, verify correct FEC configuration, inspect and clean optical contacts, and review DOM telemetry for abnormal optical power readings on our Cisco compatible 100g active optical cable 5m.

Q12: Is power draw higher on 100G QSFP28 AOC compared with passive twinax DAC cables? A: Yes. Laser and conversion hardware on both ends consume power, typically 2.5W to 4.5W per assembly, while passive copper DAC uses zero power. Our Cisco compatible 100g active optical cable 5m meets standard power specs.

Q13: Can insufficient rack airflow cause thermal overheating for 100G QSFP28 AOC transceivers? A: The Cisco compatible 100g active optical cable 5m works reliably within 0°C–70°C. Sealed racks with poor airflow will push transceiver temperature above limits and risk unstable links.

Q14: How robust are the pull latch and tab structures on QSFP28 connectors of 100G AOC cables? A: Standard pull-release latches support 50–100 normal hot-swap cycles. Pulling the cable jacket instead of the tab will break the latch. Every Cisco compatible 100g active optical cable 5m from HYTOPTODEVICE passes latch inspection before shipment.

Q15: Can technicians splice or repair a cut or crushed 100G QSFP28 AOC on site? A: No. Integrated transceivers are miniaturized and factory assembled. Field splicing is impossible, and damaged units must be fully replaced. HYTOPTODEVICE supplies replacement Cisco compatible 100g active optical cable 5m for bulk projects.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
