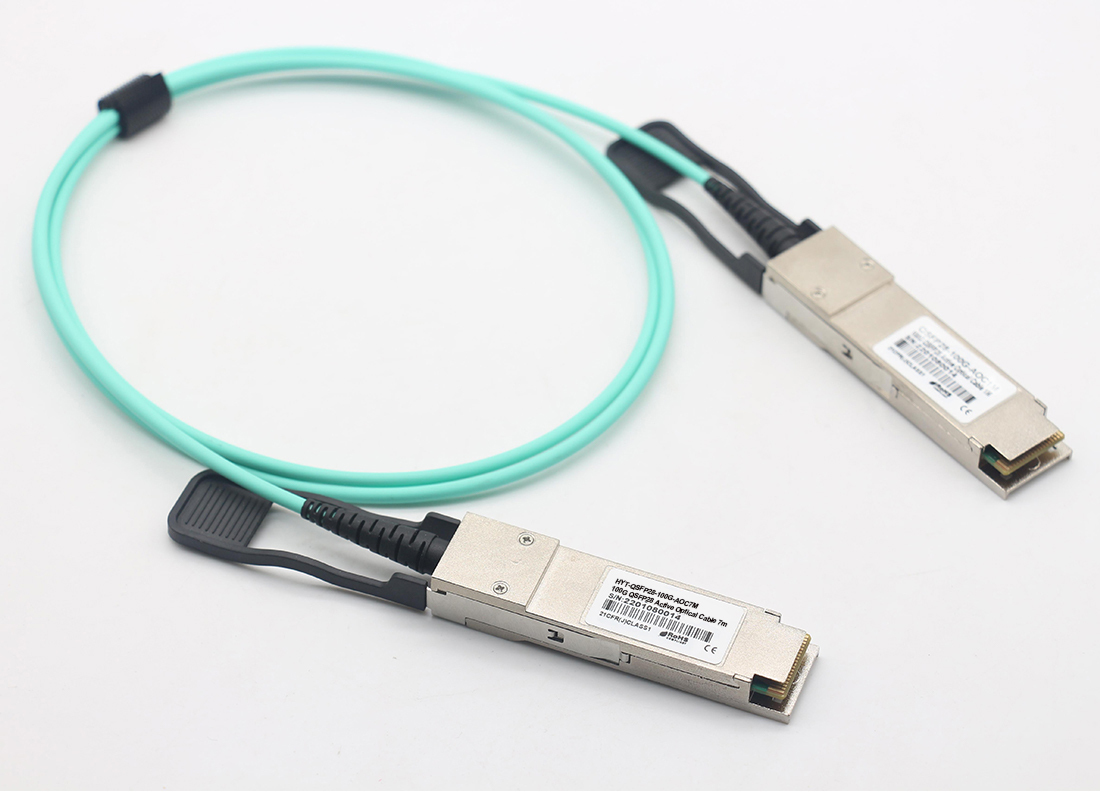

Cisco QSFP-100G-AOC7M Compatible 100G QSFP28 to QSFP28 AOC Active Optical Cable 7m(23ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies reliable 100G QSFP28 to QSFP28 Active Optical Cable, Cisco QSFP-100G-AOC7M compatible 7m 100G QSFP28 AOC, 100GBASE-SR4 multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Custom EEPROM programming and private label available, suited for data center leaf-spine uplink, HPC cluster and SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC7M
2 Arista Networks AOC-Q-Q-100G-7M
3  Dell  AOC-QSFP28-100G-7M
4 Juniper Networks  JNP-QSFP28-AOC-7M
5 NVIDIA/Mellanox  MFA1A00-C007
6 H3C QSFP-100G-D-AOC-7M
7 Brocade  QSFP28-100G-AOC-7M
Description

Cisco QSFP-100G-AOC7M Compatible 100G QSFP28 to QSFP28 AOC Active Optical Cable 7m(23ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

As a trusted supplier of 100G QSFP28 to QSFP28 Active Optical Cable, HYTOPTODEVICE provides this Cisco compatible 7m QSFP28 to QSFP28 active optical cable, pre-coded to match Cisco QSFP-100G-AOC7M. Built with 850nm VCSEL parallel optical array, it delivers stable 100Gbps full-duplex transmission and excellent anti-interference performance. This 7m length is ideal for long cross-rack interconnections within high-density data centers. We support private label customization and custom EEPROM programming, all cables are fully tested before delivery with fast sample support and flexible bulk order terms.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC7M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 7m (23ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible 100G QSFP28 to QSFP28 active optical cable supplied by us can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Data center top-of-rack short 100G interconnection
● High performance computing HPC cluster networking
● Storage area network SAN and server rack connectivity
● Enterprise high-density switch interlinks
● 100G Ethernet leaf-spine fabric short-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: How does signal latency of a 7m 100G QSFP28 AOC compare to twinax DAC for cross-rack fabric links? A: This 100G QSFP28 to QSFP28 Active Optical Cable creates minimal nanosecond-level latency from electro-optical conversion circuits. This tiny delay will not impact HPC, cloud and enterprise workloads when deployed from HYTOPTODEVICE.

Q2: What risk occurs if I tightly coil this 7m 100G AOC beyond the recommended bend radius? A: Yes. These 100G AOC assemblies follow a 30mm minimum bend radius requirement. Excessive bending can fracture internal glass fibers and permanently break the 100G link of our Cisco compatible 7m AOC.

Q3: Can power distribution cables running alongside data racks create EMI interference on 100G QSFP28 AOC links? A: No. Signal transmission relies on light pulses across glass fiber rather than electrical signals. The 100G QSFP28 to QSFP28 Active Optical Cable supplied by HYTOPTODEVICE is fully immune to electromagnetic interference.

Q4: Is signal jitter a notable risk factor for long cross-rack 100G AOC connections? A: No. Integrated CDR chips inside each transceiver recover and clean high-speed signals, maintaining ultra-low bit error rates for our 7m Cisco compatible 100G AOC in dense multi-vendor fabric environments.

Q5: Will unprogrammed third-party 100G AOC run plug-and-play on Cisco and NVIDIA Mellanox switches without transceiver alert errors? A: You need to select the correct EEPROM coding matched to your hardware during ordering. Improper coding will trigger unsupported transceiver warnings. HYTOPTODEVICE pre-programs this 100G QSFP28 to QSFP28 Active Optical Cable for Cisco platforms.

Q6: Can Cisco switch firmware upgrades disable aftermarket 100G QSFP28 AOC cables? A: MSA-compliant EEPROM chips fitted on our 7m Cisco compatible 100G AOC tolerate most minor firmware updates. Rare strict vendor lock-in policies may block third-party cables, and we offer re-coding support for bulk clients.

Q7: Are generic 100G AOC cables compatible with white-box switches running SONiC or Cumulus Linux? A: Yes. Open-source network operating systems seldom enforce rigid vendor lock restrictions. Our 100G QSFP28 to QSFP28 Active Optical Cable supports plug-and-play deployment on open networking switches.

Q8: Is matched EEPROM programming required on both cable ends for stable cross-rack 100G direct links? A: Yes. Each QSFP28 connector end must carry EEPROM data matching the connected switch or server port. HYTOPTODEVICE completes dual-end programming for this 7m AOC based on your actual connection topology.

Q9: Do I need to manually enable FEC on switch ports for reliable long-distance 100G AOC interconnections? A: Most 100G fabric links require Reed-Solomon FEC enabled on switch ports to sustain stable transmission. The exact rule depends on your switch vendor and link length for our 100G QSFP28 to QSFP28 Active Optical Cable.

Q10: What CLI commands verify a Cisco switch has successfully identified a 100G QSFP28 AOC transceiver? A: You can run commands such as show interface transceiver or show inventory to validate module detection status. This 7m Cisco compatible AOC supports full DDM reporting for convenient link status inspection.

Q11: What troubleshooting steps resolve intermittent link flapping after installing long cross-rack 100G AOC? A: Check switch interface error counters, confirm FEC settings are correctly configured, inspect and clean optical contacts, and review DOM telemetry for abnormal optical power readings on our 100G QSFP28 to QSFP28 Active Optical Cable.

Q12: Does 100G QSFP28 AOC consume more power than passive twinax DAC cables? A: Yes. Laser and signal conversion hardware on both ends draw power, typically 2.5W to 4.5W per assembly, while passive copper DAC draws zero power. Our 7m Cisco compatible AOC meets standard industry power specifications.

Q13: Can poor rack airflow cause thermal overheating for integrated transceivers on 100G QSFP28 AOC? A: The 100G QSFP28 to QSFP28 Active Optical Cable works reliably within 0°C–70°C operating range. Sealed racks with insufficient airflow will push transceiver temperature above limits and lead to unstable links.

Q14: How durable are the pull tab and latch assemblies on QSFP28 connectors of 100G AOC? A: Standard pull-release latches support 50–100 normal hot-swap cycles. Pulling the cable jacket instead of the dedicated tab will damage the latch. Every 7m Cisco compatible AOC from HYTOPTODEVICE passes latch inspection before shipment.

Q15: Can field technicians splice or repair a cut or crushed 100G QSFP28 AOC on site? A: No. Integrated transceivers are factory assembled with miniaturized optics. Field splicing is not feasible, and damaged units must be fully replaced. HYTOPTODEVICE supplies replacement 100G QSFP28 to QSFP28 Active Optical Cable for bulk data center projects.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
