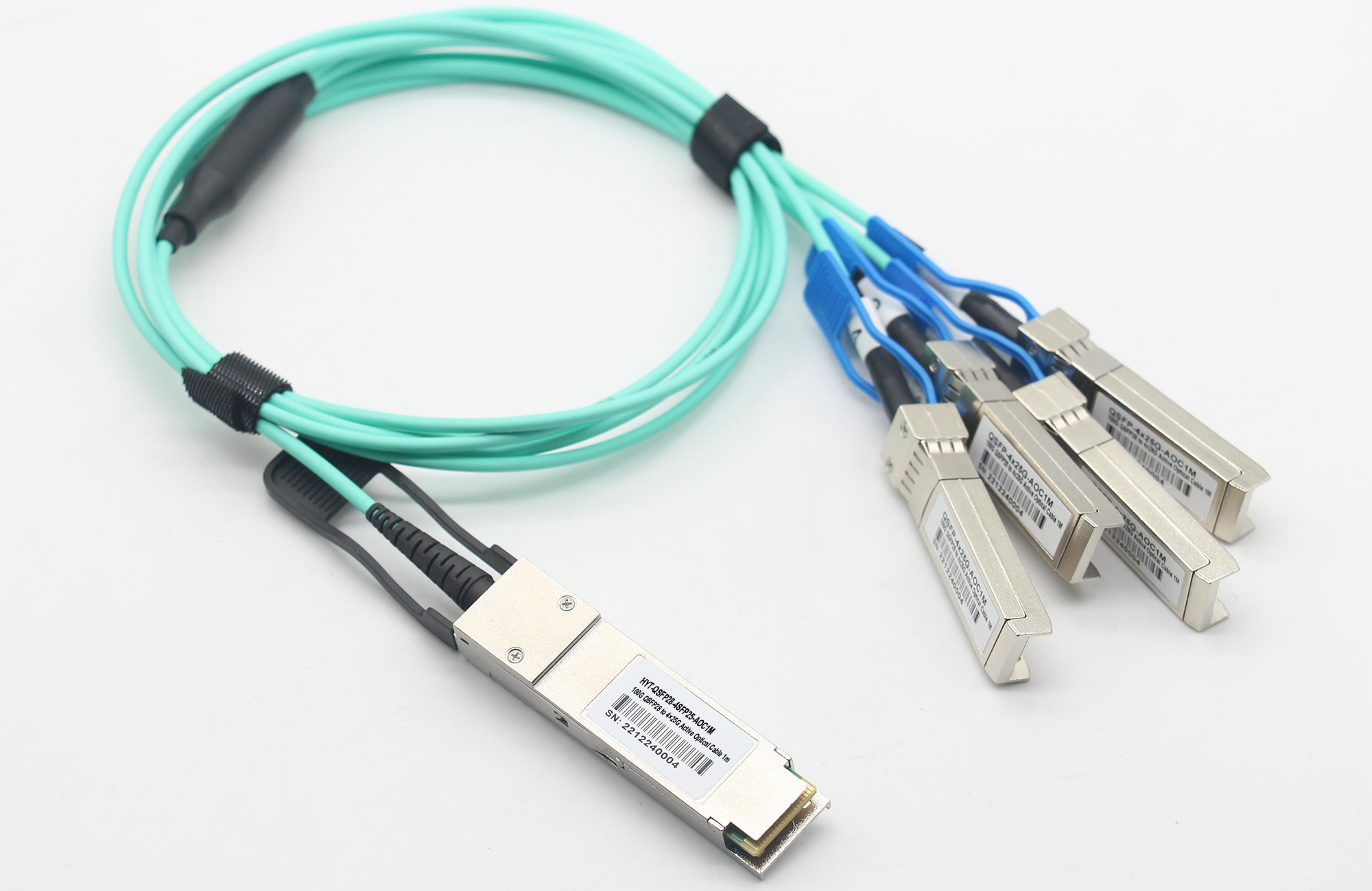

Cisco QSFP-4SFP25G-AOC1M Compatible 100G QSFP28 to SFP28 Breakout Cable 1m(3ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE is a cisco compatible qsfp28 breakout cable supplier. Cisco QSFP-4SFP25G-AOC1M compatible 1m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, samples & flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC1M
2 Arista Networks  AOC-Q-4S-100G-1M
3  Dell  AOC-Q28-4SFP28-25G-1M
4 Juniper Networks  JNP-100G-AOCBO-1M
5 NVIDIA/Mellanox  MFA7A50-C001
6 H3C QSFP28-4SFP28-AOC-1M
7 Brocade   100G-Q28-S28-AOC-0101
Description

Cisco QSFP-4SFP25G-AOC1M Compatible 100G QSFP28 to SFP28 Breakout Cable 1m(3ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE serves as a professional cisco compatible qsfp28 breakout cable supplier. This Cisco QSFP-4SFP25G-AOC1M compatible 1m breakout AOC converts a single 100G QSFP28 port into four separate 25G SFP28 interfaces, constructed with 850nm VCSEL multimode fiber for stable short-distance intra-rack connections in data centers. It is a cost-effective choice for high-density port expansion. We support private label, custom EEPROM programming, sample evaluation and bulk wholesale. Every cable undergoes strict functional testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC1M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 1m (3ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible qsfp28 breakout cable supports mixed-vendor networking hardware. can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Intra-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture short-range rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: What bending guidelines should I follow when routing the four SFP28 breakout tails of this 1m QSFP28 breakout AOC? A: Maintain a minimum bend radius of roughly 30mm at all times. Sharp bends beyond this limit will crack internal glass fibers and permanently break the link of this cisco compatible qsfp28 breakout cable from our supplier.

Q2: Can this 100G breakout AOC deliver full bidirectional 100Gbps aggregate throughput across all four 25G lanes? A: Yes, it supports full wire-speed 100Gbps bidirectional transmission, with four independent 25G channels running at full speed without bandwidth reduction.

Q3: Will short-distance 1-meter transmission introduce timing jitter and impact link stability? A: No. Integrated CDR chips inside optical transceivers actively suppress jitter and sustain an ultra-low bit error rate for reliable short-range data center transmission.

Q4: Can I configure each SFP28 breakout port to run at different speeds for mixed-rate networking deployment? A: No. The 100G QSFP28 input port is fixed to four 25G channels. Individual breakout legs cannot be adjusted to 10G or 50G speeds separately.

Q5: What switch warning logs indicate an EEPROM coding mismatch on this Cisco compatible QSFP28 breakout AOC? A: Typical alerts include "Unsupported transceiver detected", "Security checksum error", or "Unqualified optic detected", which signal incompatible vendor programming.

Q6: Are these 25G SFP28 breakout tails backward compatible with older 10G SFP+ ports on Cisco switches? A: No. SFP28 hardware is designed natively for 25G operation and lacks auto-negotiation to drop down to 10G SFP+ speeds.

Q7: What happens if I mistakenly insert the main QSFP28 plug into a 40G QSFP+ port? A: QSFP28 follows 100G electrical specifications. It cannot establish stable connectivity inside a native 40G QSFP+ port without dedicated signal conversion adapters.

Q8: Which Cisco CLI commands can verify all four breakout sub-channels are successfully identified? A: You can run commands such as show interface status or show inventory to confirm all four breakout sub-interfaces appear in the port inventory list.

Q9: Is it possible to daisy-chain multiple QSFP28 breakout AOCs to extend the cabling distance for rack deployment? A: No. Active optical breakout cables cannot be cascaded. Series interconnection breaks the optical path and triggers total link failure.

Q10: What troubleshooting steps should I take when only three breakout lanes become active after installation? A: Validate the Cisco switch breakout configuration, reseat each SFP28 connector firmly, and review DOM diagnostic readings to locate the faulty optical lane.

Q11: Will squeezing or accidental pressure on the outer jacket damage the internal fiber strands of this breakout AOC? A: Yes. Crushing force can fracture internal glass fibers. The outer jacket may remain intact while the optical transmission path is permanently destroyed.

Q12: Does this compact 1m breakout AOC add weight and cause port sag on Cisco switch slots? A: No. AOC fanout cables are much lighter than copper breakout variants, removing mechanical strain and port sag risks on switch hardware.

Q13: Is field splicing or local repair possible if the cable jacket gets pinched or cut during rack installation? A: No. Transceivers are pre-integrated into the cable assembly. On-site splicing is not practical, and damaged AOC units require full replacement.

Q14: What after-sales support can I access if bulk breakout AOC arrives with incorrect vendor EEPROM coding? A: As your cisco compatible qsfp28 breakout cable supplier, HYTOPTODEVICE provides exchange, return or re-programming service for coding compatibility issues upon delivery.

Q15: Can I request custom non-standard cable lengths instead of stocked standard sizes for my procurement project? A: Standard lengths including 1m,3m,5m,7m,10m,15m,20m are kept in stock. Custom lengths are available for enterprise orders subject to MOQ rules.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
