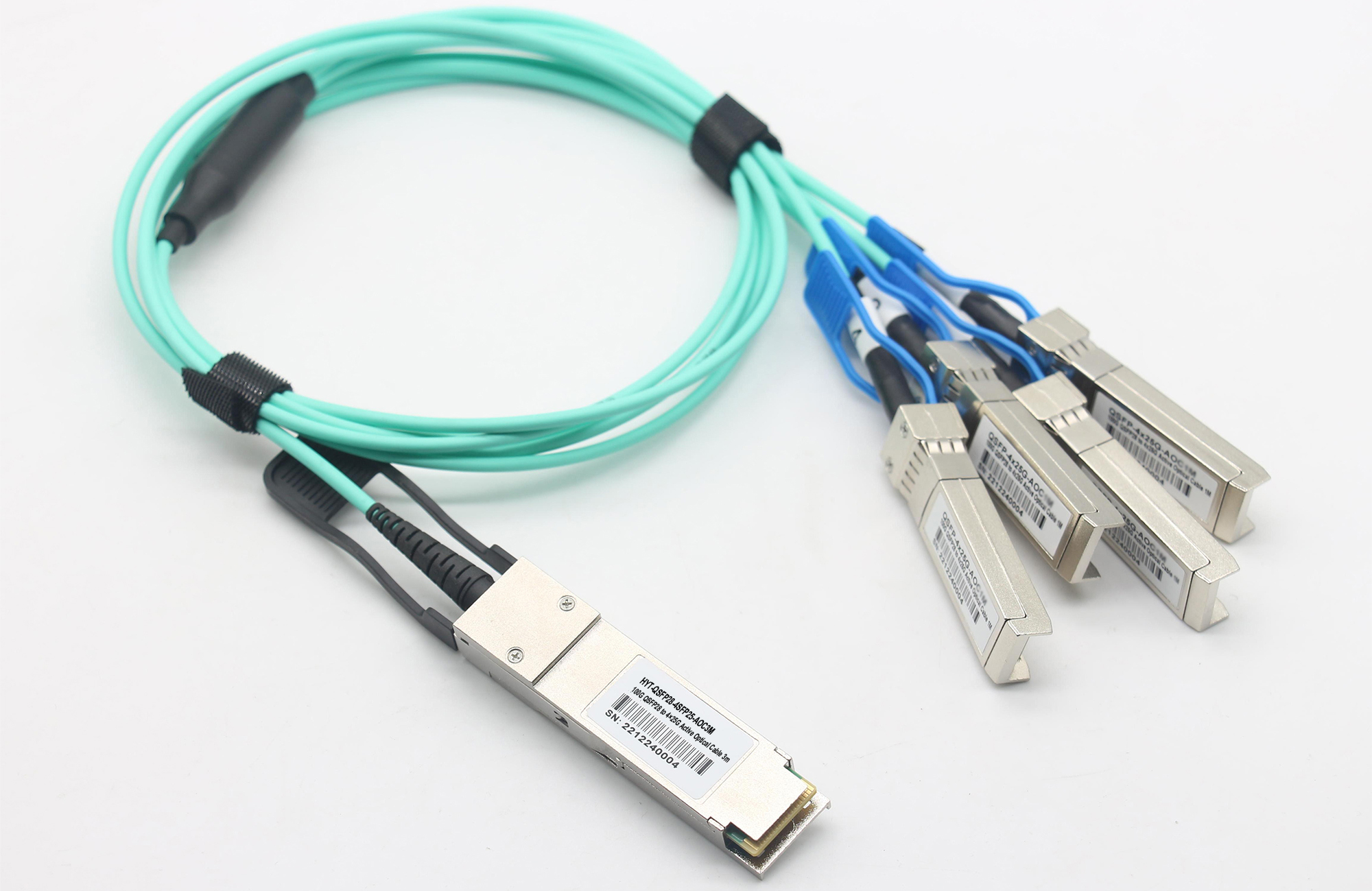

Cisco QSFP-4SFP25G-AOC3M Compatible 100G QSFP28 to SFP28 Breakout Cable 3m(10ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE is a trusted qsfp28 breakout cable manufacturer. Cisco QSFP-4SFP25G-AOC3M compatible 3m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, samples & flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC3M
2 Arista Networks  AOC-Q-4S-100G-3M
3  Dell  AOC-Q28-4SFP28-25G-3M
4 Juniper Networks  JNP-100G-AOCBO-3M
5 NVIDIA/Mellanox  MFA7A50-C003
6 H3C QSFP28-4SFP28-AOC-3M
7 Brocade   100G-Q28-S28-AOC-0301
Description

Cisco QSFP-4SFP25G-AOC3M Compatible 100G QSFP28 to SFP28 Breakout Cable 3m(10ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE acts as a professional qsfp28 breakout cable manufacturer. This Cisco QSFP-4SFP25G-AOC3M compatible 3m breakout AOC converts one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber for stable medium-range intra-rack and short inter-rack connections in data centers. We support private label, custom EEPROM programming, sample testing and bulk wholesale. Every cable passes full performance testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC3M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 3m (10ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible qsfp28 breakout cable supports mixed-vendor networking hardware. can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Intra-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture short-range rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Will this breakout cable work with my specific switch brand (e.g., Cisco, Arista, Dell, Juniper)? A: Yes, this qsfp28 breakout cable from our manufacturer follows open MSA specs and supports mainstream brands including Cisco, Arista, Dell and Juniper. We provide custom EEPROM coding to eliminate transceiver recognition warnings.

Q2: Are these cables compliant with MSA (Multi-Source Agreement) standards? A: Yes, this 100G QSFP28 breakout AOC fully meets QSFP28 and SFP28 MSA specifications, which ensures consistent electrical, mechanical and optical interoperability across standard network hardware.

Q3: Can I plug the 100G QSFP28 end into a 40G QSFP+ port? A: No, QSFP28 and QSFP+ have different electrical pinout and signal definitions. Direct insertion cannot establish a stable link, and you need dedicated conversion adapters if cross-speed connection is required.

Q4: Should I choose a Direct Attach Copper (DAC) or Active Optical Cable (AOC) breakout? A: Pick AOC for longer runs, heavy EMI environments and lightweight cabling. DAC is better for ultra-short links with lower power and budget needs. This 3m AOC is ideal for rack-to-rack deployment with strong anti-interference demands.

Q5: When should I choose MTP/MPO optical transceivers with fiber patch cables instead of an AOC breakout cable? A: Select MTP/MPO solutions if you need reconfigurable port layout, longer transmission distances or separate cable routing. AOC breakout is preferred for plug-and-play, fixed 100G to 4×25G fanout connections.

Q6: Why is 100G DAC cable reach limited to 3 meters compared to 7 meters in 10G DAC? A: 100G signals run at much higher frequencies, bringing larger signal attenuation and crosstalk. Copper twinax cannot maintain signal integrity over long distances, while AOC breaks this distance limit by optical conversion.

Q7: How do I manage cable strain when connecting one switch to four separate servers? A: Use cable supports and slack loops to avoid direct tension on connectors. Route four SFP28 pigtails separately, avoid sharp bends, and use soft cable ties to fix the fanout section of this qsfp28 breakout cable.

Q8: What is the power consumption of a 100G to 4x25G DAC vs. AOC breakout cable? A: DAC consumes almost no power. For our AOC, the QSFP28 end consumes 2.2W, and each SFP28 end consumes 0.8W, for stable optical-electrical conversion.

Q9: Can I leave one or two SFP28 breakout legs unplugged? A: Yes, unused breakout tails can stay unplugged. The remaining active 25G channels still run normally, but you should install dust caps on idle SFP28 ports to protect optical contacts.

Q10: How can I verify the cable quality before installing it in production? A: You can test DDM/DOM readings on the switch, run loopback tests and check for link error counters. As your qsfp28 breakout cable manufacturer, we complete full functional testing before delivery.

Q11: Are third-party breakout cables reliable compared to original OEM cables? A: Qualified third-party AOC breakout cables like ours offer equivalent performance when built to MSA standards. We support custom EEPROM programming and strict pre-shipment testing to match OEM compatibility.

Q12: Is this breakout cable suitable for enterprise SAN (Storage Area Network) environments? A: Yes, this 100G QSFP28 to 4×25G breakout AOC supports low-error-rate transmission, making it well suited for SAN storage interconnection and reliable storage traffic delivery.

Q13: What warranty protection should I expect when buying these cables? A: We provide long-term warranty coverage for our qsfp28 breakout cable. Defective units caused by manufacturing issues can be exchanged or re-programmed, supporting stable bulk deployment for data center projects.

Q14: Are custom breakout leg lengths available upon request? A: Yes, as a professional qsfp28 breakout cable manufacturer, we support custom breakout leg lengths for special rack layout requirements. Reach out to our sales team for custom specifications and MOQ details.

Q15: What certification standards should I look for (e.g., RoHS, CE, FCC)? A: Our breakout AOCs are RoHS, CE and FCC certified. These certifications confirm the product meets global environmental, safety and electromagnetic compatibility requirements for data center deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
