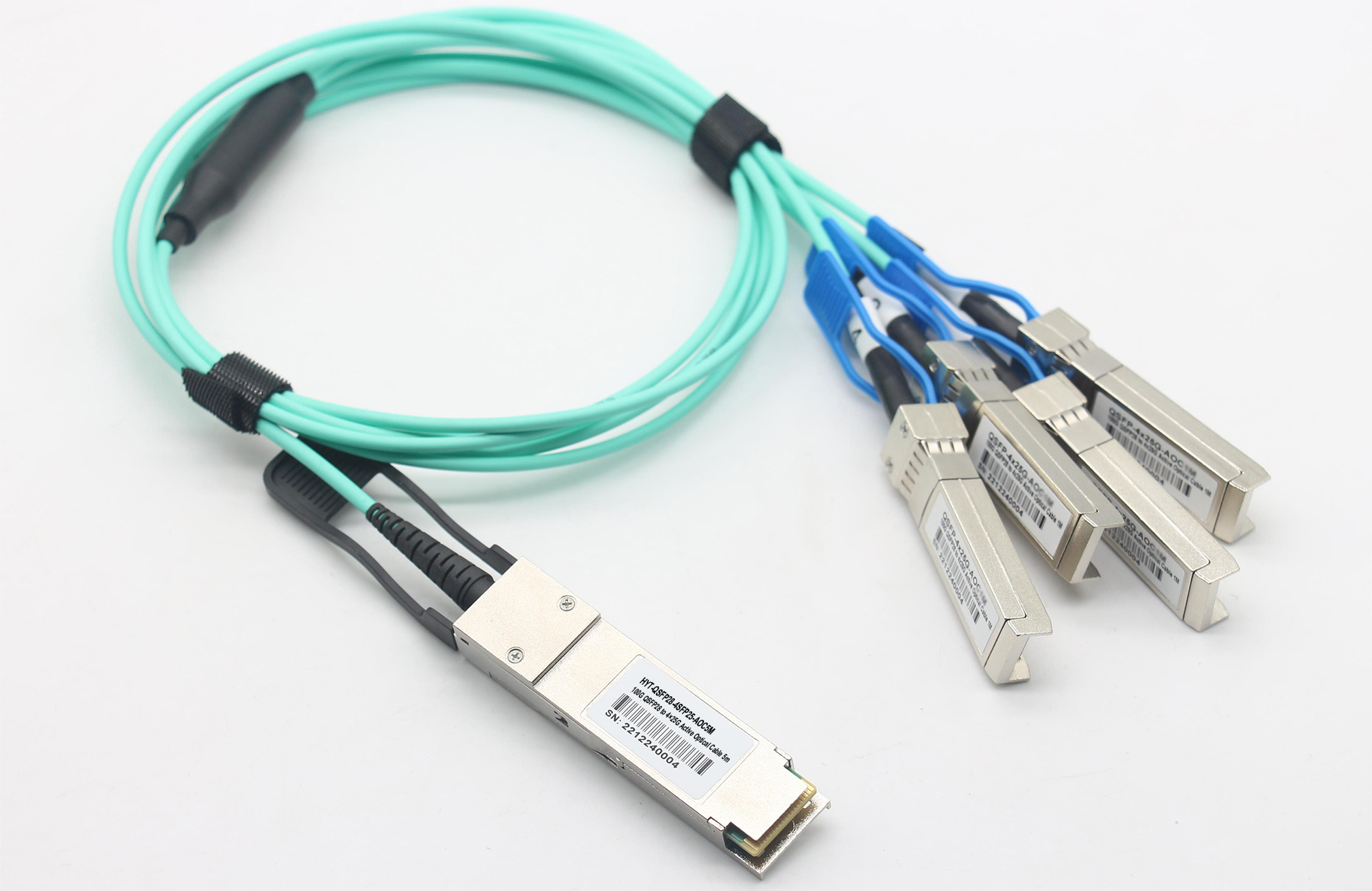

Cisco QSFP-4SFP25G-AOC5M Compatible 100G QSFP28 Breakout Cable Wholesale 5m(16ft) | HYTOPTODEVICE

HYTOPTODEVICE supplies 100G QSFP28 breakout cable wholesale. Cisco QSFP-4SFP25G-AOC5M compatible 5m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, samples & flexible MOQ for bulk orders.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC5M
2 Arista Networks  AOC-Q-4S-100G-5M
3  Dell  AOC-Q28-4SFP28-25G-5M
4 Juniper Networks  JNP-100G-AOCBO-5M
5 NVIDIA/Mellanox  MFA7A50-C005
6 H3C QSFP28-4SFP28-AOC-5M
7 Brocade   100G-Q28-S28-AOC-0501
Description

Cisco QSFP-4SFP25G-AOC5M Compatible 100G QSFP28 Breakout Cable Wholesale 5m(16ft) | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE provides reliable 100G QSFP28 breakout cable wholesale. This Cisco QSFP-4SFP25G-AOC5M compatible 5m breakout AOC splits one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber for stable short inter-rack connections in data centers. We support private label, custom EEPROM programming, sample testing and bulk wholesale. Every cable passes full performance testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC5M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 5m (16ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible 100g qsfp28 breakout cable supports mixed-vendor networking hardware. can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Intra-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture short-range rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Can this 5m 100G QSFP28 breakout AOC run on my existing Cisco leaf-spine switches? A: Yes. This Cisco compatible 100G QSFP28 breakout AOC is validated on Cisco Nexus platforms. HYTOPTODEVICE tunes EEPROM parameters to avoid compatibility alarms for leaf-spine uplink deployment.

Q2: Are wholesale 100G to 4×25G breakout AOCs built to official MSA mechanical specs? A: Yes. Our 100G QSFP28 breakout cable wholesale products fully follow SFF-8636 MSA standards. Consistent form factor ensures smooth insertion and hot plug operation.

Q3: Is it feasible to plug this 100G QSFP28 breakout AOC into a legacy 40G QSFP+ switch port? A: No. QSFP28 and QSFP+ pinouts are not interchangeable. This 5m breakout AOC cannot negotiate links without a dedicated speed conversion transceiver.

Q4: What are the key differences between bulk AOC breakout and DAC breakout for 5-meter rack links? A: AOC is better for 5m inter-rack runs. Copper DAC suffers signal roll-off at this length, while our HYTOPTODEVICE AOC stays immune to EMI and maintains stable 25G per-channel throughput.

Q5: When should data center engineers pick MTP trunk fiber instead of plug-and-play 100G breakout AOC? A: Choose MTP trunk for movable, re-routed long-haul cabling. This 5m QSFP28 breakout AOC is the simpler ready-to-use solution for fixed 100G to 4×25G fanout connections.

Q6: Why can’t 100G DAC twinax reach as far as 10G DAC cables within the same rack environment? A: 100G signaling runs at higher Nyquist frequency. Copper twinax has higher crosstalk, limiting DAC reach, while our 5m breakout AOC uses optical transmission to bypass copper distance limits.

Q7: How to prevent connector tension damage when routing a 1-to-4 SFP28 breakout cable to multiple servers? A: Use cable trays and slack loops. Separate the four SFP28 pigtails individually, maintain 30mm minimum bend radius, and protect the fanout point of this HYTOPTODEVICE 100G breakout AOC.

Q8: What is the typical power draw of a 100G QSFP28 to 4×25G breakout AOC vs DAC cable? A: DAC uses near-zero power. Our 5m AOC draws 2.2W at the QSFP28 host end and 0.8W for each SFP28 breakout end, supporting reliable optical conversion.

Q9: Will link performance drop if I leave one or two SFP28 breakout ports unused? A: No. Active channels keep running at full 25G speed. We recommend dust caps on idle SFP28 ports to guard the optical interfaces of this wholesale breakout AOC.

Q10: What tests do you run to validate 100G breakout AOC quality before shipment to bulk buyers? A: We complete DDM calibration, error-free line-rate burn-in and loopback testing. Every HYTOPTODEVICE 100G QSFP28 breakout cable passes inspection before wholesale delivery.

Q11: Do third-party compatible 100G breakout AOCs deliver the same stability as OEM branded cables? A: Qualified third-party AOCs match OEM performance. Our wholesale breakout AOC uses MSA-compliant components and custom EEPROM programming to eliminate firmware warning messages.

Q12: Can this 5m 100G breakout AOC support low-latency storage traffic in SAN environments? A: Yes. It maintains ultra-low bit error rate. This Cisco compatible 100G QSFP28 breakout AOC works reliably for SAN storage replication and block data transmission.

Q13: What warranty terms come with bulk purchased 100G QSFP28 breakout AOC cables? A: We offer standard long-term warranty for wholesale orders. Manufacturing defects on this 5m breakout AOC qualify for replacement or EEPROM reconfiguration support from HYTOPTODEVICE.

Q14: Can we order custom unequal-length breakout legs for our unique rack layout? A: Yes. HYTOPTODEVICE accepts custom breakout leg length requests for 100G QSFP28 breakout cable wholesale. Contact our sales team for custom specs and MOQ details.

Q15: Which global certifications are mandatory for data center AOC breakout cables for export? A: RoHS, CE and FCC are required. Our wholesale 100G QSFP28 breakout AOC holds these certifications to satisfy environmental and EMC compliance for global data center deployments.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
