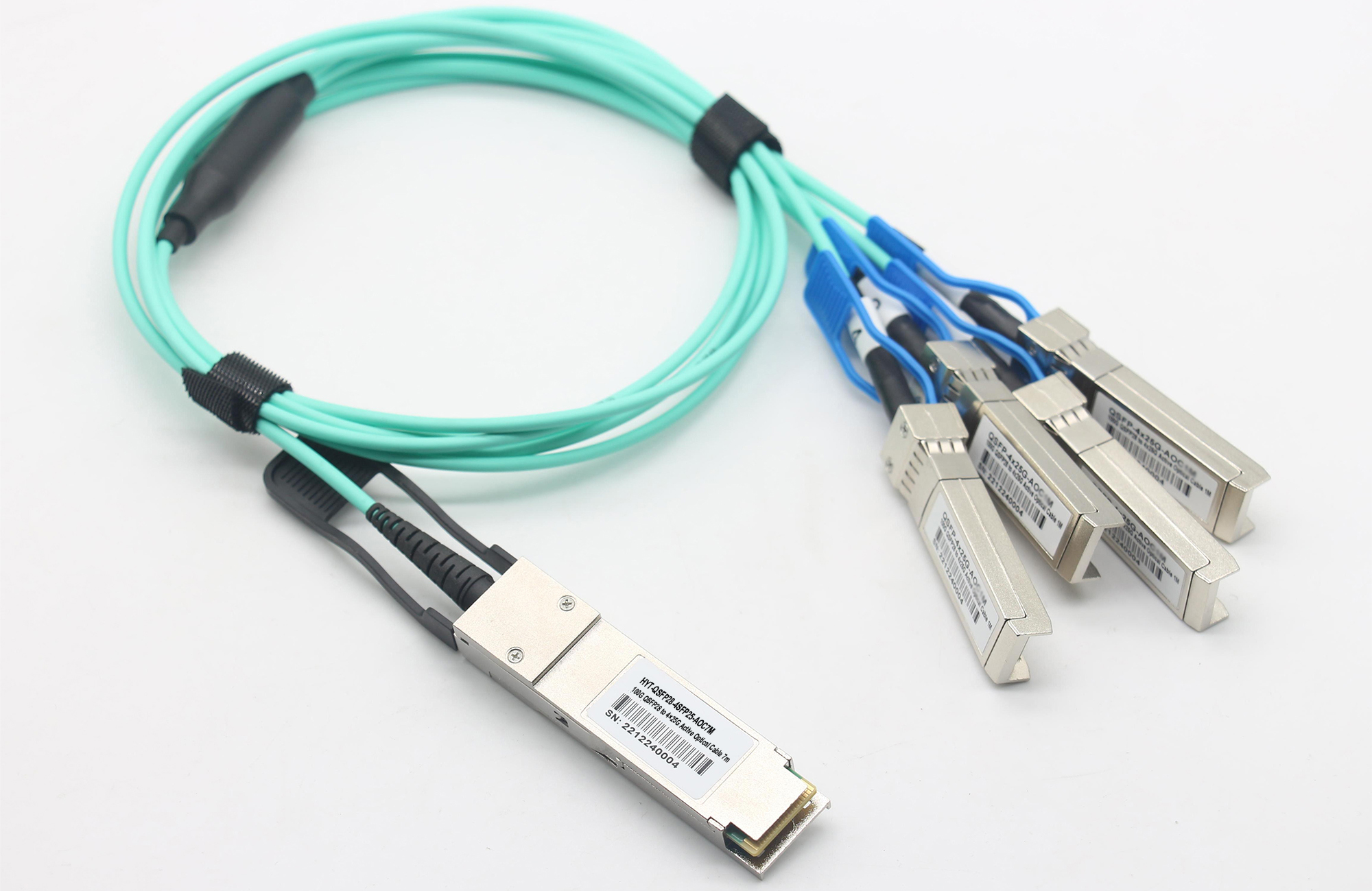

Cisco QSFP-4SFP25G-AOC7M Compatible 100G QSFP28 to SFP28 Breakout Cable 7m(23ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE is your reliable QSFP28 to sfp28 breakout cable supply partner. Cisco QSFP-4SFP25G-AOC7M compatible 7m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, sample testing, flexible MOQ for bulk wholesale orders.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC7M
2 Arista Networks  AOC-Q-4S-100G-7M
3  Dell  AOC-Q28-4SFP28-25G-7M
4 Juniper Networks  JNP-100G-AOCBO-7M
5 NVIDIA/Mellanox  MFA7A50-C007
6 H3C QSFP28-4SFP28-AOC-7M
7 Brocade   100G-Q28-S28-AOC-0701
Description

Cisco QSFP-4SFP25G-AOC1M Compatible 100G QSFP28 to SFP28 Breakout Cable 1m(1.67ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE provides stable QSFP28 to sfp28 breakout cable supply for global data center buyers. This Cisco QSFP-4SFP25G-AOC7M compatible 7m breakout AOC splits one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber for long inter-rack cabling in leaf-spine and HPC environments. We support sample evaluation, custom EEPROM programming, private label OEM service and flexible MOQ bulk procurement. Every cable undergoes full line-rate testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC7M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 7m (23ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible qsfp28 to sfp28 breakout AOC cable supports mixed-vendor networking hardware. can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long inter-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture cross-rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Can this 7m Cisco compatible breakout AOC run smoothly on multi-vendor switch platforms for data center expansion? A: Yes. This QSFP28 to sfp28 breakout cable from our supply line follows MSA specs. HYTOPTODEVICE provides tailored EEPROM coding to guarantee compatibility across Cisco, Arista, Dell and Juniper switches.

Q2: Are bulk purchased 7m 100G breakout AOCs manufactured according to official MSA mechanical and optical standards? A: Yes. Our breakout AOC strictly meets SFF-8636 MSA requirements. Standardized dimensions ensure seamless hot plug and reliable optical performance for wholesale deployments.

Q3: Will inserting this 100G QSFP28 breakout AOC into a legacy 40G QSFP+ switch port establish a valid data link? A: No. QSFP28 and QSFP+ use different electrical pin definitions. This 7m AOC cannot negotiate links without dedicated speed conversion transceivers.

Q4: Which breakout cabling option is better for 7-meter cross-rack runs: AOC or copper DAC? A: AOC is the preferred solution for 7m links. Copper DAC suffers severe signal attenuation at this length, while our HYTOPTODEVICE breakout AOC resists EMI and maintains stable 25G per-channel throughput.

Q5: When should infrastructure engineers select MTP trunk fiber instead of plug-and-play 100G breakout AOC for rack interconnection? A: Choose MTP trunk for reconfigurable, long-distance cabling. This 7m QSFP28 breakout AOC is ready for direct plug-and-play fixed 100G to 4×25G fanout connections.

Q6: Why is the maximum reach of 100G DAC twinax much shorter than traditional 10G DAC cables? A: 100G signaling operates at higher frequencies with higher crosstalk. Copper twinax cannot sustain signal integrity over longer distances, while our 7m breakout AOC uses optical transmission to bypass copper distance limits.

Q7: How to prevent connector strain damage when deploying a 1-to-4 SFP28 breakout cable across multiple server racks? A: Use cable trays and reserve slack loops. Route four SFP28 pigtails separately, maintain 30mm minimum bend radius, and protect the fanout point of this QSFP28 to sfp28 breakout cable.

Q8: What is the power consumption difference between 100G to 4×25G DAC and breakout AOC for inter-rack links? A: DAC consumes nearly zero power. Our 7m AOC draws 2.2W at the QSFP28 host end and 0.8W for each SFP28 breakout end to support stable optical-electrical conversion.

Q9: Will network performance degrade if I leave some SFP28 breakout ports unused during deployment? A: No. Active channels keep running at full 25G speed. We recommend dust caps on idle SFP28 ports to protect optical interfaces of this bulk breakout AOC.

Q10: What quality tests are performed before we ship breakout AOCs to wholesale purchasers? A: We complete DDM calibration, line-rate burn-in and loopback error testing. Every unit from our QSFP28 to sfp28 breakout cable supply passes inspection before delivery.

Q11: Are third-party compatible breakout AOCs reliable enough for enterprise data center bulk rollout? A: Qualified third-party AOCs match OEM performance. Our wholesale breakout AOC uses MSA-compliant components and custom EEPROM programming to eliminate switch firmware warning messages.

Q12: Can this 7m 100G breakout AOC support low-latency block storage traffic in SAN environments? A: Yes. It maintains ultra-low bit error rate. This Cisco compatible breakout AOC works reliably for SAN replication and high-volume storage data transmission.

Q13: What warranty terms are available for bulk procurement of our QSFP28 breakout AOC cables? A: We offer long-term warranty for wholesale orders. Manufacturing defects on this 7m breakout AOC qualify for replacement or EEPROM reconfiguration support from HYTOPTODEVICE.

Q14: Can buyers request custom unequal breakout leg lengths for unique rack layout projects? A: Yes. HYTOPTODEVICE accepts custom breakout leg length requests within our QSFP28 to sfp28 breakout cable supply program. Contact our sales team for custom specs and MOQ details.

Q15: What global certifications are required for breakout AOC cables exported to overseas data center clients? A: RoHS, CE and FCC are mandatory. Our wholesale breakout AOC holds these certifications to satisfy environmental and EMC compliance for global data center deployments.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
