| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP56-200G-AOC15M | |
| 2 | Arista Networks | A-Q200-Q200-15M | |
| 3 | HPE Aruba | QSFP56-200G-AOC15M | |
| 4 | Intel | QSFP56-200G-AOC15M | |
| 5 | NVIDIA/Mellanox | MFS1S00-V015E | |
| 6 | H3C | QSFP56-200G-AOC15M |
Key Technical Specifications

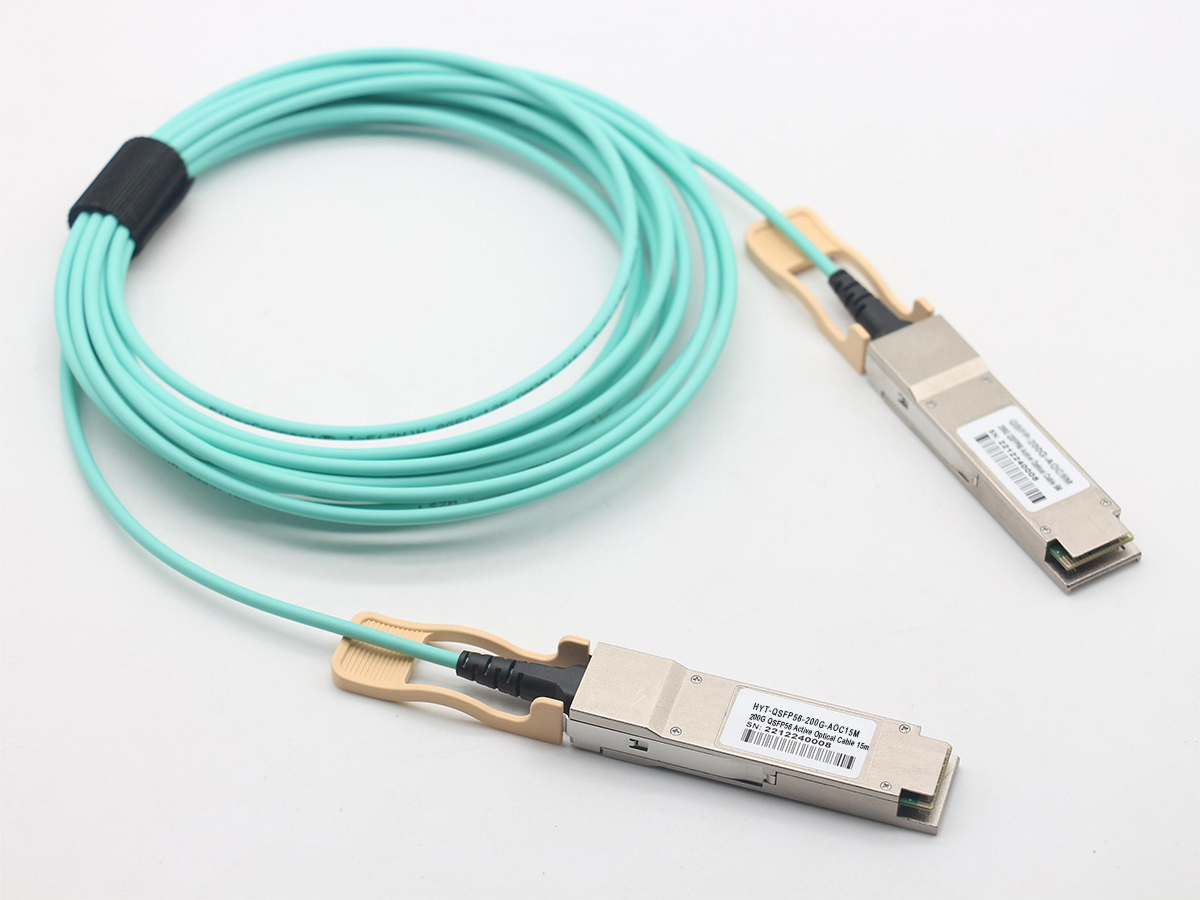

| Cisco Compatible |
QSFP56-200G-AOC15M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP56 to QSFP56 | Max Data Rate | 200Gbps |
| Operating Wavelength | 850nm | Fiber Cable | OM4 MMF |
| Cable Length | 15m (49ft) | Power Consumption | ≤4.5W |
| Host Required | FEC | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Minimum Bend Radius | 30mm | Protocols | IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636 |
| Application |
200G-SR4 Ethernet
|
Warranty | 5 Years |
Usage Guidelines & Best Practices
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this wholesale 200g qsfp56 aoc supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, suitable for mixed-vendor rack stacking and AI server fabric expansion.






Q1: Can QSFP56 AOC modules fit and run normally on QSFP-DD Ethernet switch ports? A: No. QSFP56 and QSFP-DD differ in physical size and pin layout. This Cisco compatible 200g qsfp56 active optical cable aoc wholesale product cannot plug into QSFP-DD slots, an important note for operators upgrading mixed-form-factor Ethernet fabrics.
Q2: Am I able to split this straight 200G Ethernet AOC into two independent 100G data channels? A: No. This is a non-breakout direct 200G AOC for single-channel Ethernet transmission. It carries one unified 200G PAM4 Ethernet signal and cannot be split into dual 100G links. Reach out to HYTOPTODEVICE if you need breakout 200G AOC solutions for your wholesale project.
Q3: Will this AOC trigger unknown module warnings on Cisco enterprise Ethernet switching platforms? A: It will not trigger alerts with our custom EEPROM service. HYTOPTODEVICE tunes module profile data to match Cisco Ethernet systems for this 200g qsfp56 active optical cable aoc wholesale product, simplifying large-scale rack deployment.
Q4: Is this Cisco compatible 200G QSFP56 AOC designed mainly for InfiniBand workloads? A: No. This 15m AOC is optimized for 200G PAM4 Ethernet networking. Although it meets MSA electrical specs, its firmware and optical tuning are targeted for Ethernet data center use rather than InfiniBand.
Q5: Can this 200G QSFP56 AOC establish stable links between Ethernet hardware from different vendors? A: Yes. Designed based on MSA open standards, this 200g qsfp56 active optical cable aoc wholesale cable delivers reliable cross-vendor interoperability to connect Cisco, Arista, NVIDIA, Dell and other compatible Ethernet devices for multi-brand fabric builds.
Q6: How does the latency performance of QSFP56 AOC compare with DAC cables and standalone transceivers inside Ethernet fabrics? A: AOC latency is slightly higher than DAC, around 5–10 ns. The small optical-electrical conversion delay has negligible impact on most Ethernet leaf-spine and AI server workloads, while this 15m AOC supports longer reach than copper DAC options.
Q7: What is the power consumption of each end of this 200G AOC, and how does it compare with competing Ethernet AOCs? A: Power consumption is 4.5W per end. Our HYTOPTODEVICE 200G QSFP56 AOC adopts optimized circuit design, achieving lower power consumption than many competing Ethernet AOCs and reducing thermal load in dense server racks.
Q8: Will electromagnetic noise from adjacent power cables corrupt the Ethernet signal transmitted via this AOC? A: No. Data transmits as light over glass fiber instead of copper conductors. This Cisco compatible AOC is fully EMI immune, suitable for routing near power supplies in high-density electrically noisy server rack environments.
Q9: What bandwidth can each single lane support on this 200G QSFP56 Ethernet active optical cable? A: Each lane supports 50Gbps PAM4. Four parallel lanes combine to reach the full 200G aggregate bandwidth of this 200g qsfp56 active optical cable aoc wholesale cable for Ethernet compute and storage interconnections.
Q10: Will different OM4 AOC lengths create obvious signal attenuation gaps on 200G Ethernet links? A: Optical loss rises moderately with length within OM4’s rated transmission range. The attenuation stays within acceptable Ethernet link budget limits; our 15m wholesale stock model maintains clean signals for long cross-rack leaf-spine uplinks.
Q11: Why select a factory AOC instead of pairing two separate 200G transceivers plus fiber patch cords for Ethernet deployment? A: Factory pre-terminated AOC cuts installation steps and potential failure points. For short-distance transmission runs below 30 meters, the AOC solution is highly recommended for Ethernet data center operators, and our HYTOPTODEVICE 200G QSFP56 AOC is a cost-effective wholesale option for bulk rollout.
Q12: If one transceiver head gets damaged, can I replace only that faulty end instead of swapping the whole Ethernet AOC? A: No. The AOC is a sealed integrated optical assembly. Once one transceiver end fails, the entire cable needs replacement. HYTOPTODEVICE keeps stable stock and fast lead times for replacement orders of this 200g qsfp56 active optical cable aoc wholesale cable for Ethernet networks.
Q13: What bending specification should installers observe when routing this 200G AOC inside compact Ethernet server racks? A: The minimum bend radius is 30mm. Bending tighter than this limit will introduce extra optical attenuation. Installers must follow this requirement during cabling work for this 15m Cisco compatible Ethernet AOC.
Q14: How robust is the pull-tab latch under repeated hot swapping during routine Ethernet data center maintenance? A: It is durable. The pull tab is reinforced for repeated plug-and-unplug cycles. Our 200g qsfp56 active optical cable aoc wholesale cable uses sturdy latch tabs to withstand regular hot swapping during Ethernet cluster maintenance.
Q15: How does the weight of a long 200G AOC compare with twinax DAC of the same length for Ethernet cabling layouts? A: AOC is far lighter than equivalent twinax DAC. Optical fiber is much less dense than copper, so even longer AOCs reduce port stress and simplify cable management in tall, densely packed Ethernet server racks.
Packaging & Custom OEM Solutions
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
