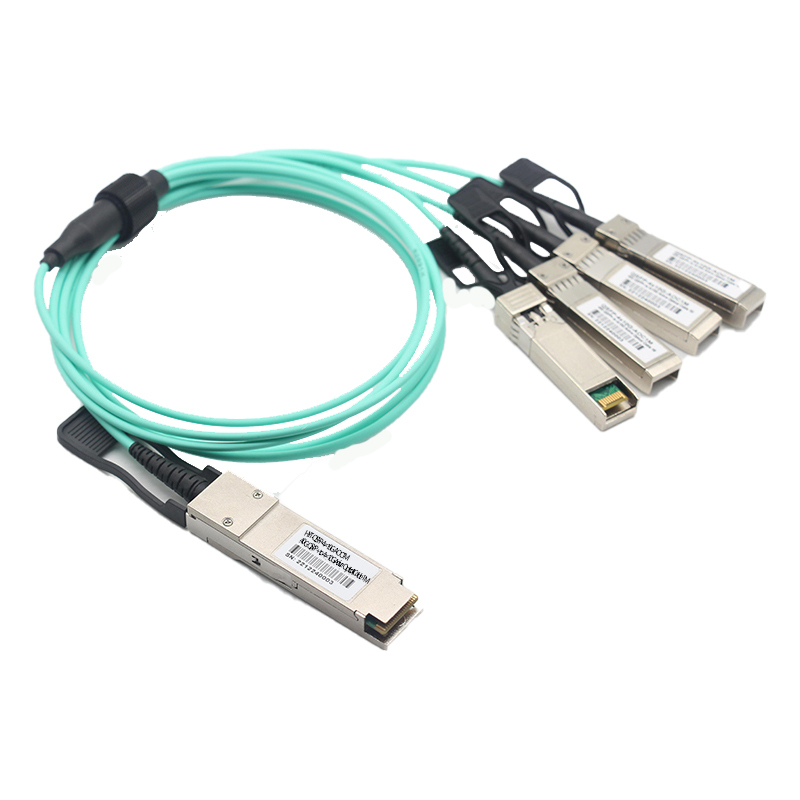

Cisco QSFP-4X10G-AOC15M Compatible 40G QSFP+ to Four SFP+ AOC Active Optical Cable 15m(49ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE acts as a reliable cisco qsfp+ to four sfp+ aoc active optical cable supplier, offering Cisco QSFP-4X10G-AOC15M compatible 15m 40G QSFP+ to four SFP+ breakout AOC, 40G split into 4×10G lanes, 850nm multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available. Suitable for data center port breakout, server aggregation and SAN interconnection. Samples available, flexible MOQ for bulk wholesale procurement.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-4X10G-AOC15M
2 Arista Networks QSFP-4X10G-AOC15M
3  Dell  CBL-QSFP-4X10G-AOC15M
4 Juniper Networks  JNP-QSFP-AOCBO-15M
5 Extreme 10GB-4-F15-QSFP
6 H3C QSFP-4X10G-D-AOC-15M
7 Brocade  40G-QSFP-4SFP-AOC-1501
Description

Cisco QSFP-4X10G-AOC15M Compatible 40G QSFP+ to Four SFP+ AOC Active Optical Cable 15m(49ft) Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE is a professional cisco qsfp+ to four sfp+ aoc active optical cable supplier. This Cisco QSFP-4X10G-AOC15M compatible 15m breakout AOC converts one 40G QSFP+ port into four independent 10G SFP+ channels, built with 850nm VCSEL multimode fiber for stable long-distance inter-rack connections. It is ideal for longer cabling runs within climate-controlled data centers. We support private label, custom EEPROM programming, sample testing and bulk orders. Every cable undergoes strict testing before shipment.

Key Technical Specifications

Cisco Compatible
 QSFP-4X10G-AOC15M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to 4 SFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 15m (49ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP+ port supports channelization. Enable breakout mode (4x10G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 30mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout AOC with straight QSFP+ to QSFP+ AOC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 5000/5500 Series: N5K-C5596UP, N5K-C5548UP
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C3172PQ
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9250i
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C

2. Multi-Brand Cross Interoperability

 Built on MSA open standards, this cisco QSFP+ to Four SFP+ AOC Active Optical Cable supports mixed-vendor networking devices. can interoperate with mainstream network brands including Arista, Brocade, Juniper, Dell, H3C and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

  • Long inter-rack 40G to 4×10G breakout uplink in data centers
  • HPC cluster server node aggregation
  • SAN storage network port expansion
  • Enterprise switch fabric 10G server access
  • Leaf-spine long-range breakout interconnection

Connectivity Solutions(Applications)

1. 40G to 4x10G Breakout Link for Switch-Switch
hytoptodevice compatible qsfp to four sfp+ active optical breakout cables for 40g switch to swtich

The Core Feature

1. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


cisco compatible qsfp+ to four sfp+ aoc active optical cable for data center

2.Host-Device Tested for Proven Interoperability

Each 40G QSFP+  AOC active optical cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation. Not sure it fits? Compatibility Video available upon request.

hytoptodevice act as qsfp+ to four sfp+ aoc active optical cable supplier

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  40g QSFP+ to four sfp+ aoc active optical cable for switches

FAQ

Q1: What is the minimum bend radius I need to keep when routing the breakout pigtails of this 15m AOC? A: Maintain a minimum bend radius of around 30mm at all times. Sharp bends beyond this limit will crack internal glass fibers and permanently break the link of this cisco qsfp+ to four sfp+ aoc active optical cable from our supplier.

Q2: Can this 40G breakout AOC deliver full duplex 40Gbps bandwidth simultaneously across all four lanes? A: Yes, it supports full wire-speed 40Gbps aggregate throughput in both directions, with four separate 10Gbps channels running independently without bandwidth reduction.

Q3: Will extended 15-meter transmission introduce noticeable signal jitter that hurts link performance? A: No. Integrated CDR circuits inside the optical transceivers actively suppress jitter and sustain an ultra-low bit error rate for stable long-distance data transmission.

Q4: Can I configure each breakout tail to run at different speeds for mixed-rate networking deployment? A: No. The 40G QSFP+ port is fixed to split into four 10G channels. Individual SFP+ legs cannot operate at 1G or 25G speeds separately.

Q5: What switch warning messages indicate an EEPROM coding mismatch on Cisco-compatible breakout AOC? A: Typical alerts include "Unsupported transceiver detected", "Security checksum error", or "Unqualified optic detected", which signal incompatible vendor programming.

Q6: Can these 10G SFP+ breakout tails work with older 1G SFP ports on legacy Cisco switches? A: No. SFP+ hardware is designed for native 10G operation and lacks auto-negotiation capability to drop down to 1G SFP speeds.

Q7: What will happen if I mistakenly insert the QSFP+ main connector into a 100G QSFP28 port? A: QSFP+ follows 40G electrical specifications. It cannot establish stable connectivity in a 100G QSFP28 port unless paired with dedicated downshifting adapters.

Q8: How can I confirm that the Cisco switch successfully recognizes all four breakout sub-channels? A: Execute CLI commands such as show interface status or show inventory, to verify all four breakout sub-interfaces appear within the switch’s port list.

Q9: Is it possible to connect multiple breakout AOCs in series to achieve longer cabling distances? A: No. Active optical breakout cables cannot be daisy-chained. Series interconnection breaks the optical path and results in total link failure.

Q10: What troubleshooting steps should I take when only three breakout links activate after installation? A: Verify the switch channelization configuration, reseat each SFP+ connector firmly, and examine DOM diagnostic readings to locate the faulty lane.

Q11: Can accidental compression or heavy pressure on the outer jacket destroy the internal fiber of this breakout AOC? A: Yes. Crushing the cable can fracture internal glass fibers. The outer jacket may remain intact while the optical transmission path is permanently damaged.

Q12: Does this long 15m breakout AOC add heavy weight and cause port sag on Cisco switch cages? A: No. AOC fanout cables are much lighter than copper breakout alternatives, eliminating mechanical strain and port sag on switch hardware.

Q13: Is it feasible to splice and repair this AOC locally if the cable jacket gets pinched or cut? A: No. Transceivers are pre-integrated into the cable assembly. Field splicing is not practical, and damaged units require full replacement.

Q14: What support is available if I receive breakout AOC with incorrect vendor coding after placing a bulk order? A: As your cisco qsfp+ to four sfp+ aoc active optical cable supplier, HYTOPTODEVICE provides exchange, return or re-programming service for coding compatibility issues upon delivery.

Q15: Can I request custom non-standard cable lengths instead of stocked standard sizes for my data center project? A: Standard lengths including 1m,3m,5m,10m,15m,20m,30m,50m are kept in stock. Custom lengths are available for enterprise orders subject to MOQ terms.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.



Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
