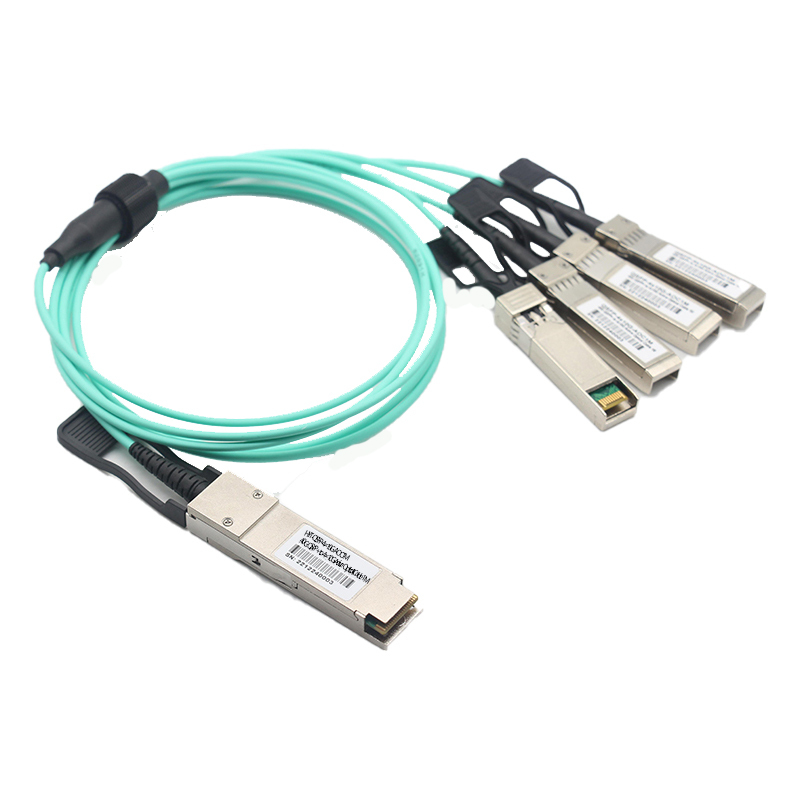

Cisco QSFP-4X10G-AOC5M Compatible 40G QSFP+ to Four SFP+ AOC Active Optical Breakout Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco QSFP+ to Four SFP+ AOC Active Optical Breakout Cable, Cisco QSFP-4X10G-AOC5M compatible 5m 40G QSFP+ to four SFP+ breakout AOC, 40G split into 4×10G lanes, 850nm multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available, ideal for data center port breakout, server aggregation and SAN interconnection. Factory bulk wholesale, sample available and flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-4X10G-AOC5M
2 Arista Networks QSFP-4X10G-AOC5M
3  Dell  CBL-QSFP-4X10G-AOC5M
4 Juniper Networks  JNP-QSFP-AOCBO-5M
5 Extreme 10GB-4-F05-QSFP
6 H3C QSFP-4X10G-D-AOC-5M
7 Brocade  40G-QSFP-4SFP-AOC-0501
Description

Cisco QSFP-4X10G-AOC5M Compatible 40G QSFP+ to Four SFP+ AOC Active Optical Breakout Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE is a factory provider of cisco QSFP+ to Four SFP+ AOC Active Optical Breakout Cable. This Cisco QSFP-4X10G-AOC5M compatible 5m breakout AOC splits one 40G QSFP+ port into four 10G SFP+ channels, adopting 850nm VCSEL multimode fiber for reliable signal transmission. It fits medium inter-rack cabling inside data center environments. We support private label and custom EEPROM programming. All cables pass full testing before shipment, with sample support and direct factory wholesale.

Key Technical Specifications

Cisco Compatible
 QSFP-4X10G-AOC5M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to 4 SFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 5m (16ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP+ port supports channelization. Enable breakout mode (4x10G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 30mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout AOC with straight QSFP+ to QSFP+ AOC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 5000/5500 Series: N5K-C5596UP, N5K-C5548UP
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C3172PQ
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9250i
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C

2. Multi-Brand Cross Interoperability

 Built on MSA open standards, this cisco QSFP+ to Four SFP+ AOC Active Optical Breakout Cable supports mixed-vendor networking devices. can interoperate with mainstream network brands including Arista, Brocade, Juniper, Dell, H3C and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

  • Medium inter-rack 40G to 4×10G breakout uplink in data centers
  • HPC cluster server node aggregation
  • SAN storage network port expansion
  • Enterprise switch fabric 10G server access
  • Leaf-spine medium-range breakout interconnection

Connectivity Solutions(Applications)

1. 40G to 4x10G Breakout Link for Switch-Switch
hytoptodevice compatible qsfp to four sfp+ active optical breakout cables for 40g switch to swtich

The Core Feature

1. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.



2.Host-Device Tested for Proven Interoperability

Each 40G QSFP+  AOC breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation. Not sure it fits? Compatibility Video available upon request.


3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  40g QSFP+ to 4 x sfp+ passive dac cable for switches

FAQ

Q1: Can I tightly coil the breakout fiber tails when installing this 40G breakout AOC inside compact server racks? A: You must follow the minimum bend radius requirement of roughly 30mm. Bending tighter than this limit can fracture internal glass fibers and permanently damage the link of this cisco QSFP+ to Four SFP+ AOC Active Optical Breakout Cable.

Q2: Does this 4-to-10G breakout AOC support full bidirectional 40G wire-speed traffic at the same time? A: Yes, it delivers full 40Gbps aggregate bandwidth simultaneously in both directions, with four independent 10Gbps channels running at full wire speed.

Q3: Will signal jitter accumulate on optical breakout AOC over longer inter-rack distances? A: No. Integrated CDR circuits inside the optical transceiver modules suppress jitter effectively and keep bit error rate low for stable long-distance data center transmission.

Q4: Is it possible to run different speeds on separate SFP+ breakout legs of this 40G fanout AOC? A: No. The 40G QSFP+ port is fixed to split into four 10G channels. Individual breakout ports cannot run at 1G or 25G speeds independently.

Q5: What alert logs tell me there is an EEPROM coding mismatch on Cisco compatible breakout AOC? A: Typical system alerts include "Unsupported transceiver detected", "Security checksum error", or "Unqualified optic detected", which point to incorrect vendor coding.

Q6: Can I plug these 10G SFP+ breakout leads into older 1G SFP switch ports? A: No. SFP+ interfaces are designed for native 10G operation and will not auto-negotiate down to work with legacy 1G SFP ports.

Q7: What happens if I insert the 40G QSFP+ end into a 100G QSFP28 port by mistake? A: QSFP+ is built for 40G electrical specifications. It will not establish a normal link inside a 100G QSFP28 port without dedicated signal downshifting adapters.

Q8: How can I verify that the Cisco switch recognizes all four breakout sub-channels correctly? A: Run standard CLI commands such as show interface status or show inventory to check and confirm all four breakout sub-interfaces show up on the switch.

Q9: Can I cascade multiple breakout AOC cables together to extend the total transmission distance? A: No. Active optical breakout cables cannot be daisy-chained. Connecting them in series breaks the optical path and results in complete link failure.

Q10: Troubleshooting tip: what steps should I take if only three out of four breakout links come online? A: Double-check the switch channelization configuration, reseat the SFP+ connectors firmly, and review DOM diagnostic data to locate the faulty channel.

Q11: Are internal fiber strands easy to break if someone accidentally steps on the jacket of this breakout AOC? A: Yes. Crushing or stepping on the cable can crack internal glass fibers. The outer jacket may look intact while the data path is already permanently damaged.

Q12: Are 40G breakout AOC cables heavy enough to create port sagging on Cisco switch ports? A: No. These optical fanout cables are far lighter than copper breakout alternatives, removing mechanical strain and port sag issues on switch cages.

Q13: Can I splice and repair this AOC if the cable jacket gets pinched or cut during deployment? A: No. The transceivers are pre-integrated into the cable assembly. Field splicing is not feasible, and a damaged AOC needs full replacement.

Q14: What return options are available if I receive breakout AOC with the wrong vendor EEPROM coding? A: Reliable suppliers like HYTOPTODEVICE offer exchange, return or re-programming services for orders with compatibility coding issues upon delivery.

Q15: Can I request non-standard custom lengths instead of the stocked standard sizes for my breakout AOC project? A: Standard lengths including 1m,3m,5m,10m,20m,30m,50m are kept in stock. Custom lengths are available for enterprise orders subject to MOQ requirements.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.



Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
