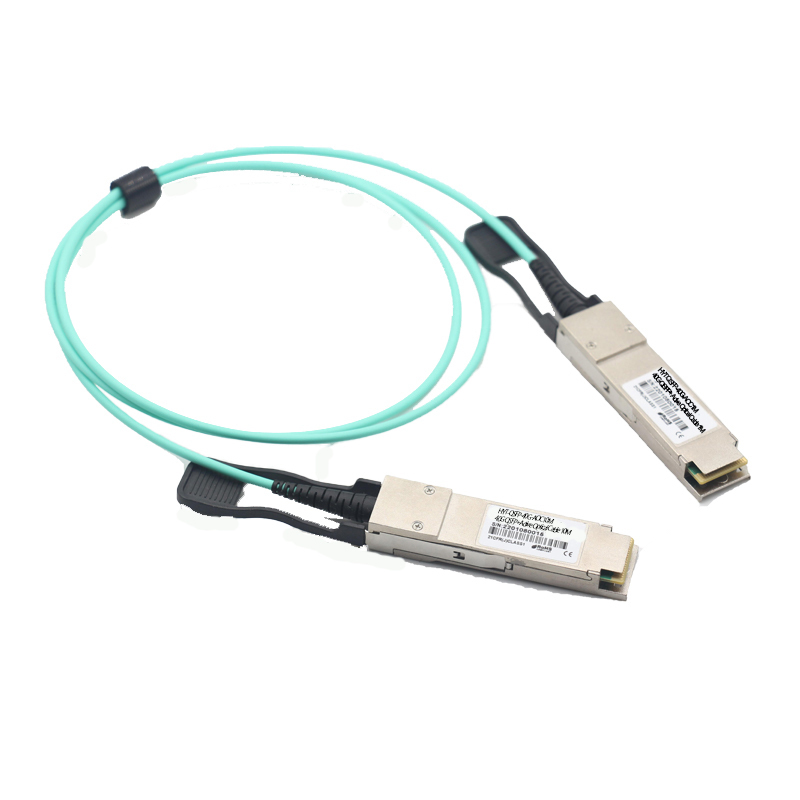

Cisco QSFP-H40G-AOC10M Compatible 40G QSFP+ TO QSFP+ Active Optical Cable 10m(33ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies Cisco compatible 40g qsfp+ active optical cable AOC, Cisco QSFP-H40G-AOC10M compatible 10m 40G QSFP+ AOC, 40GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-H40G-AOC10M
2 Arista Networks AOC-Q-Q-40G-10M
3  Dell (Force10) CBL-QSFP-40GE-10M
4 Juniper Networks  JNP-40G-AOC-10M
5 NVIDIA/Mellanox  MC2210310-010
6 H3C QSFP-40G-D-AOC-10M
7 Extreme  40GB-F10-QSFP
8 Brocade  40G-QSFP-QSFP-AOC-1001
Description

Cisco QSFP-H40G-AOC10M Compatible 40G QSFP+ TO QSFP+ Active Optical Cable 10m(33ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

This Cisco compatible 40g qsfp+ active optical cable AOC is a Cisco matched 10m QSFP+ to QSFP+ active optical cable, fully coded for Cisco QSFP-H40G-AOC10M. Built with 850nm VCSEL parallel optical engine, it delivers stable 40Gbps full-duplex transmission, immune to electromagnetic interference, ideal for long-distance intra-fabric rack connections within climate-controlled data centers. HYTOPTODEVICE supports private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-40G-AOC10M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to QSFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 10m (33ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 40G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-EX, N9K-C9372PX, N9K-C9396PX, N9K-C93108TC-EX
  • Cisco Nexus 7000 Series: N7K-F348XP-25, N7K-M348XP-25L
  • Cisco Catalyst 9500 Series: C9500-16X, C9500-24X, C9500-32C
  • Cisco UCS 6300 / 6400 Fabric Interconnects: UCS-FI-6332, UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710, MDS 9250i
  • Cisco ASR 1000 Series: ASR1001-X, ASR1002-X
  • Cisco NCS 5500 Series: NCS-5501-SE, NCS-5502-SE

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this Cisco compatible 40g qsfp+ active optical cable AOC can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Data center leaf-spine 40G uplink interconnection
  • High performance computing HPC cluster networking
  • Storage area network SAN and server rack connectivity
  • Enterprise high-density switch interlinks
  • 40G Ethernet fabric deployment

Connectivity Solutions(Applications)

1. 40G to 40G Direct Link for Switch-Switch
hytoptodevice 40g qsfp+ active optical cable  link for switch to switch

2. 40G to 40G Direct Link for Switch-NIC
hytoptodevice, 40g qsfp+ to qsfp+ active fiber optic cable supplier


The Core Feature

1. Simplified Short-Reach Interconnect

Using AOC way replaces traditional solution, makes short-reach easy, no cleaning, lower total cost. perfect for In-rack & adjacent-rack links.

hytoptodevie compatible 40g qsfp+ aoc active optical cable for 40G Ethernet upgrade

2. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


3.Pre-Tested on Real Switches

Each 40G QSFP+  AOC cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.


4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What is the maximum working distance supported by this Cisco compatible 40G QSFP+ AOC for data center links? A: Standard 40G QSFP+ AOC products can cover transmission lengths from 1m up to 100m using OM3 or OM4 multimode fiber. Our Cisco compatible 40g qsfp+ active optical cable AOC works reliably for long intra-row inter-rack connections where passive copper DAC cannot reach.

Q2: Can this 10m Cisco compatible 40G AOC run in outdoor or non-climate-controlled cabinet environments? A: No, standard data center-grade AOC including our Cisco compatible 40g qsfp+ active optical cable AOC is engineered only for indoor temperature-controlled environments ranging from 0°C to 70°C. Outdoor links require armored fiber patch cords paired with standalone transceivers.

Q3: What harm will occur if you pull the AOC cable jacket forcefully during cabling installation? A: AOC internal fiber assemblies cannot withstand high pulling tension. Excessive tension on the outer jacket may detach internal fiber cores from the transceiver end, so route our Cisco compatible 40g qsfp+ active optical cable AOC gently during rack deployment.

Q4: Will nearby power supply cables create electromagnetic interference that impacts this 40G QSFP+ AOC link? A: No. AOC transmits data via light over glass fiber instead of electrical signals, so it is fully immune to EMI and RFI noise. This advantage makes our Cisco compatible 40g qsfp+ active optical cable AOC stable inside dense power-heavy server cabinets.

Q5: Is the Cisco compatible 40g qsfp+ active optical cable AOC suitable for low-latency HPC and trading cluster networking? A: Yes. It delivers consistent low latency, lightweight routing and excellent anti-interference performance, making our Cisco compatible 40g qsfp+ active optical cable AOC a reliable choice for HPC clusters and core data center backbone connections.

Q6: What preparation should I finish before deploying third-party 40G AOC on Cisco IOS switches? A: You need to select the correct pre-coded version matching your Cisco hardware when placing orders. Improper EEPROM coding will cause port recognition failure. Our Cisco compatible 40g qsfp+ active optical cable AOC is pre-programmed for smooth recognition on Cisco platforms.

Q7: Will Cisco IOS firmware updates cause link drop or compatibility issues for aftermarket 40G QSFP+ AOC? A: MSA-compliant AOC like our Cisco compatible 40g qsfp+ active optical cable AOC survives most routine minor firmware upgrades. Rare strict vendor security lock updates may block non-original modules, and we can provide re-coding support when needed.

Q8: Can technicians rewrite the EEPROM chip on this AOC to adapt to other brand network switches? A: It cannot be reflashed casually on-site without professional programming equipment. Please confirm your switch vendor model before ordering. HYTOPTODEVICE can offer full technical support including coding boards and software for EEPROM programming.

Q9: Do open networking operating systems like SONiC support this Cisco compatible 40g qsfp+ active optical cable AOC? A: Yes. Open-source network operating systems follow MSA specifications without strict vendor lock-in. Our Cisco compatible 40g qsfp+ active optical cable AOC can plug and play stably with SONiC and other open switch OS.

Q10: Do both ends of this direct 40G AOC connection need separate EEPROM programming? A: Yes, each transceiver end of the AOC requires EEPROM configuration matching the connected switch hardware. Our team can confirm coding requirements when you place bulk orders for the Cisco compatible 40g qsfp+ active optical cable AOC.

Q11: What rack environmental factors will raise the risk of overheating for QSFP+ AOC transceivers? A: The AOC transceiver modules are rated for 0°C–70°C. Poor airflow and sealed hot racks will drive module temperature up quickly. You can track real-time temperature via DDM data from our Cisco compatible 40g qsfp+ active optical cable AOC.

Q12: Will sustained high ambient temperature shorten the service life of a 40G QSFP+ AOC? A: Long-term operation near or above the 70°C upper limit will accelerate laser diode aging and reduce service life. Our Cisco compatible 40g qsfp+ active optical cable AOC passes temperature cycling testing to guarantee stable lifespan.

Q13: Are low-power 40G AOC options available for green and energy-saving data center builds? A: Yes. Our Cisco compatible 40g qsfp+ active optical cable AOC features power consumption below 1.4W, helping reduce overall power draw for energy-efficient data center deployment.

Q14: What internal damage can squeezing or heavy compression bring to a QSFP+ active optical cable? A: Heavy squeezing or crushing can crack the internal glass fibers and break the optical path, even if the outer jacket looks intact. Avoid sharp compression when routing our Cisco compatible 40g qsfp+ active optical cable AOC.

Q15: What is the plug and unplug cycle rating for the pull tab latches on these 40G QSFP+ AOC connectors? A: Standard pull-release latches support roughly 50–100 insertion cycles under normal operation. Rough pulling by the cable body will break the latch easily. Every Cisco compatible 40g qsfp+ active optical cable AOC from HYTOPTODEVICE gets latch inspection before shipment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
