QSFP-H40G-AOC15M Cisco Compatible 40G QSFP+ Active Optical Cable AOC 15m(49ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE is a professional 40G QSFP+ Active Optical Cable AOC manufacturer, supplying QSFP-H40G-AOC15M Cisco compatible 15m 40G QSFP+ to QSFP+ AOC, 40GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-H40G-AOC15M
2 Arista Networks AOC-Q-Q-40G-15M
3  Dell (Force10) CBL-QSFP-40GE-15M
4 Juniper Networks  JNP-40G-AOC-15M
5 NVIDIA/Mellanox  MC2206310-015
6 H3C QSFP-40G-D-AOC-15M
7 Extreme  40GB-F15-QSFP
8 Brocade  40G-QSFP-QSFP-AOC-1501
Description

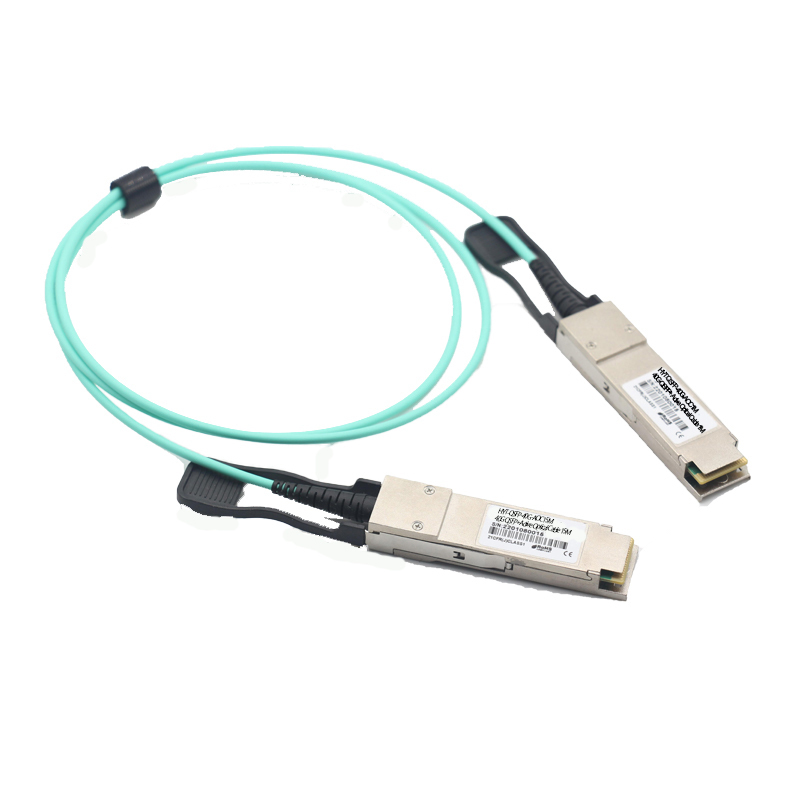

Cisco QSFP-H40G-AOC15M Compatible 40G QSFP+ TO QSFP+ Active Optical Cable 15m(49ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

As a trusted 40G QSFP+ Active Optical Cable AOC manufacturer, HYTOPTODEVICE provides this Cisco compatible 15m QSFP+ to QSFP+ active optical cable, fully coded to match Cisco QSFP-H40G-AOC15M. Built with 850nm VCSEL parallel optical engine, it delivers stable 40Gbps full-duplex transmission, immune to electromagnetic interference, well suited for long intra-row inter-rack connections inside climate-controlled data centers. We support private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-40G-AOC15M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to QSFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 15m (49ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 40G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-EX, N9K-C9372PX, N9K-C9396PX, N9K-C93108TC-EX
  • Cisco Nexus 7000 Series: N7K-F348XP-25, N7K-M348XP-25L
  • Cisco Catalyst 9500 Series: C9500-16X, C9500-24X, C9500-32C
  • Cisco UCS 6300 / 6400 Fabric Interconnects: UCS-FI-6332, UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710, MDS 9250i
  • Cisco ASR 1000 Series: ASR1001-X, ASR1002-X
  • Cisco NCS 5500 Series: NCS-5501-SE, NCS-5502-SE

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 40G QSFP+ Active Optical Cable AOC manufactured by HYTOPTODEVICE can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Data center leaf-spine 40G uplink interconnection
  • High performance computing HPC cluster networking
  • Storage area network SAN and server rack connectivity
  • Enterprise high-density switch interlinks
  • 40G Ethernet fabric deployment

Connectivity Solutions(Applications)

1. 40G to 40G Direct Link for Switch-Switch
hytoptodevice 40g qsfp+ active optical cable  link for switch to switch

2. 40G to 40G Direct Link for Switch-NIC
hytoptodevice, 40g qsfp+ to qsfp+ active fiber optic cable supplier


The Core Feature

1. Simplified Short-Reach Interconnect

Using AOC way replaces traditional solution, makes short-reach easy, no cleaning, lower total cost. perfect for In-rack & adjacent-rack links.

hytoptodevie compatible 40g qsfp+ aoc active optical cable for 40G Ethernet upgrade

2. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


3.Pre-Tested on Real Switches

Each 40G QSFP+  AOC cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.


4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What distance limits apply to this 15m 40G QSFP+ AOC for data center fabric links? A: Standard 40G QSFP+ AOC can reach up to 100m over OM3/OM4 multimode fiber. As a professional 40G QSFP+ Active Optical Cable AOC manufacturer, our 15m model is ideal for long-span inter-rack runs where passive copper DAC cannot cover the distance.

Q2: Can this Cisco compatible 15m 40G AOC be deployed in outdoor or non-temperature-controlled locations? A: No, standard data center AOC from our 40G QSFP+ Active Optical Cable AOC manufacturer lineup is designed only for indoor climate-controlled environments (0°C to 70°C). Outdoor connections require armored fiber cables paired with separate transceivers.

Q3: What damage may occur if the AOC cable jacket is pulled forcefully during installation? A: AOC internal fiber assemblies are fragile and cannot withstand high tension. Rough pulling on the jacket may separate internal fiber cores from the transceiver ends. Our 40G QSFP+ Active Optical Cable AOC manufacturer recommends routing gently and gripping only the latch when plugging/unplugging.

Q4: Will nearby power cables cause electromagnetic interference to this 40G QSFP+ AOC link? A: No. Optical signals travel over glass fiber instead of copper conductors, so the cable is fully immune to EMI and RFI noise. This is a key advantage of our 40G QSFP+ Active Optical Cable AOC for dense power-heavy server racks.

Q5: Is this 15m 40G QSFP+ AOC suitable for low-latency HPC and high-frequency trading networks? A: Yes. It delivers stable low latency and strong anti-interference performance, making products from our 40G QSFP+ Active Optical Cable AOC manufacturer a reliable choice for HPC clusters and core data center backbone connections.

Q6: What information should I provide when ordering third-party 40G AOC for Cisco switches? A: You need to confirm your exact switch model and firmware version. Our 40G QSFP+ Active Optical Cable AOC manufacturer can pre-program EEPROM to match Cisco requirements for smooth port recognition.

Q7: Will Cisco IOS firmware upgrades create compatibility issues for aftermarket 40G QSFP+ AOC? A: MSA-compliant AOC like our products works through most minor firmware updates. Rare vendor lock updates may block unbranded modules, and our 40G QSFP+ Active Optical Cable AOC manufacturer can support re-coding upon request.

Q8: Can field technicians reflash the EEPROM of this AOC to support other brand switches? A: On-site reflashing requires dedicated programming hardware and software. Confirm your target hardware before ordering. HYTOPTODEVICE, your 40G QSFP+ Active Optical Cable AOC manufacturer, provides full coding support.

Q9: Are open-source network operating systems such as SONiC compatible with this Cisco matched 40G QSFP+ AOC? A: Yes. SONiC follows MSA standards without strict vendor locking. Our 40G QSFP+ Active Optical Cable AOC can plug and play stably on open network platforms.

Q10: Do both ends of this direct-connect AOC need independent EEPROM configuration? A: Yes, each QSFP+ end needs EEPROM data matching the connected switch. Our 40G QSFP+ Active Optical Cable AOC manufacturer will handle dual-end coding based on your deployment plan.

Q11: What rack conditions can trigger overheating of QSFP+ AOC transceiver modules? A: The modules are rated 0°C–70°C. Poor airflow and hot sealed racks raise temperature rapidly. You can monitor real-time module temperature via DDM data from our 40G QSFP+ Active Optical Cable AOC.

Q12: Does prolonged high ambient temperature reduce the operational lifespan of 40G QSFP+ AOC? A: Long-term operation near or above 70°C accelerates laser diode aging and shortens service life. Our 40G QSFP+ Active Optical Cable AOC passes temperature cycling testing for consistent reliability.

Q13: Does this 40G QSFP+ AOC meet low-power requirements for green data center builds? A: Yes. Power consumption stays below 1.4W, which helps lower overall power budget for energy-efficient data center designs from our 40G QSFP+ Active Optical Cable AOC manufacturer.

Q14: What happens if the AOC cable is crushed or heavily squeezed during installation? A: Heavy compression can crack internal glass fibers and break the optical path, even with an intact outer jacket. Our 40G QSFP+ Active Optical Cable AOC manufacturer advises avoiding sharp bends and crushing during cable routing.

Q15: What is the typical plug-unplug cycle rating for the pull-tab latches on these 40G QSFP+ AOC connectors? A: Standard pull-tab latches support roughly 50–100 normal insertion cycles. Rough pulling on the cable body easily breaks the latch. Every unit from our 40G QSFP+ Active Optical Cable AOC manufacturer undergoes latch inspection before shipment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
