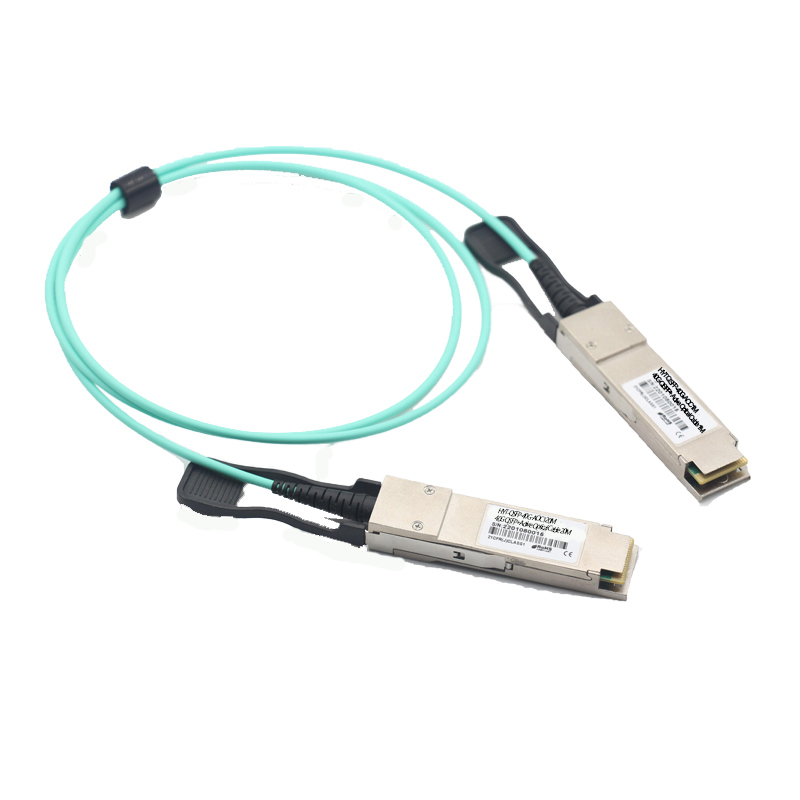

Cisco QSFP-H40G-AOC20M Compatible 20m(66ft) 40G QSFP+ TO QSFP+ AOC Active Optical Cable Supplier | HYTOPTODEVICE

HYTOPTODEVICE is a trusted QSFP+ AOC Active Optical Cable Supplier, offering Cisco QSFP-H40G-AOC20M compatible 20m 40G QSFP+ to QSFP+ AOC, 40GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection. Bulk wholesale, sample available, flexible MOQ for procurement.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-H40G-AOC20M
2 Arista Networks AOC-Q-Q-40G-20M
3  Dell (Force10) CBL-QSFP-40GE-20M
4 Juniper Networks  JNP-40G-AOC-20M
5 NVIDIA/Mellanox  MC2210310-020
6 H3C QSFP-40G-D-AOC-20M
7 Extreme  40GB-F20-QSFP
8 Brocade  40G-QSFP-QSFP-AOC-2001
Description

Cisco QSFP-H40G-AOC20M Compatible 20m(66ft) 40G QSFP+ TO QSFP+  AOC Active Optical Cable Supplier | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE serves as a professional QSFP+ AOC Active Optical Cable Supplier. This Cisco QSFP-H40G-AOC20M compatible 20m 40G QSFP+ to QSFP+ active optical cable delivers stable 40G full-duplex connectivity between two QSFP+ ports. Built with 850nm multimode fiber, it features strong anti-electromagnetic interference performance and supports DDM real-time monitoring. We provide custom EEPROM programming, private label service, sample testing and bulk wholesale. Every cable undergoes strict testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-40G-AOC20M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to QSFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 20m (66ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 40G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C9332PQ
  • Cisco Nexus 5000/5500 Series: N5K-C5596UP, N5K-C5548UP
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C3172PQ
  • Cisco UCS 6400 Series Fabric Interconnects
  • Cisco MDS 9000 Series Storage Switches
  • Cisco Catalyst 9500 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this QSFP+ AOC Active Optical Cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Data center leaf-spine 40G uplink interconnection
  • High performance computing HPC cluster networking
  • Storage area network SAN and server rack connectivity
  • Enterprise high-density switch interlinks
  • 40G Ethernet fabric deployment

Connectivity Solutions(Applications)

1. 40G to 40G Direct Link for Switch-Switch
hytoptodevice 40g qsfp+ active optical cable  link for switch to switch

2. 40G to 40G Direct Link for Switch-NIC
hytoptodevice, 40g qsfp+ to qsfp+ active fiber optic cable supplier


The Core Feature

1. Simplified Short-Reach Interconnect

Using AOC way replaces traditional solution, makes short-reach easy, no cleaning, lower total cost. perfect for In-rack & adjacent-rack links.

hytoptodevie compatible 40g qsfp+ aoc active optical cable for 40G Ethernet upgrade

2. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


3.Pre-Tested on Real Switches

Each 40G QSFP+  AOC cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.


4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What is the minimum bend radius requirement for this 20m 40G QSFP+ AOC during rack routing? A: You must maintain a minimum bend radius of roughly 30mm. Sharp bends beyond this limit will fracture internal glass fibers and permanently disable the link of this QSFP+ AOC Active Optical Cable from our supplier.

Q2: Does this 40G QSFP+ to QSFP+ AOC support symmetrical bidirectional 40Gbps wire-speed traffic? A: Yes, it runs full 40Gbps bandwidth simultaneously in both transmit and receive directions without bandwidth compression for data center workloads.

Q3: Will long 20-meter transmission bring accumulated jitter and affect signal stability? A: No. Integrated CDR circuits inside the optical modules suppress signal jitter effectively and keep bit error rate at an extremely low level.

Q4: Can I run different speeds on the two ends of this point-to-point QSFP+ AOC link? A: No, both QSFP+ ports must work at 40Gbps. This cable cannot negotiate down to 10G or 100G speeds directly without adapters.

Q5: What log alerts indicate an EEPROM code mismatch on Cisco recognized AOC? A: Common prompts include "Unsupported transceiver detected", "Security checksum error", or "Unqualified optic detected", which signal incorrect vendor programming.

Q6: Can this 40G QSFP+ AOC work when inserted into a 100G QSFP28 port directly? A: QSFP+ electrical and signal specifications are designed for 40G. It cannot establish a normal link inside a native 100G QSFP28 port without dedicated downshifting adapters.

Q7: How can I verify that the Cisco switch correctly identifies this QSFP+ AOC after installation? A: Use CLI commands like show interface status or show inventory to confirm the transceiver is detected and the interface shows up.

Q8: Can I connect multiple QSFP+ AOC cables in series to extend the overall transmission distance? A: No, active optical cables cannot be daisy-chained. Cascading will break the optical path and result in complete link failure.

Q9: What should I do if the link fails to come up after plugging in this 40G AOC? A: Double-check the switch port configuration, reseat both QSFP+ connectors firmly, and check DOM diagnostic data for abnormal optical parameters.

Q10: Will stepping on or squeezing the outer jacket of this AOC destroy internal optical fibers? A: Yes. External compression can crack internal glass fibers. The jacket may look intact while the optical transmission path is permanently damaged.

Q11: Is this 20m QSFP+ AOC heavy enough to cause sagging on switch port cages? A: No. AOC fiber construction is much lighter than copper DAC cables, eliminating mechanical stress and port sag issues on switch slots.

Q12: Is on-site splicing or repair feasible if the AOC jacket gets pinched or cut during deployment? A: No. The optical transceiver components are pre-integrated into the cable assembly. Damaged AOCs cannot be repaired and require full replacement.

Q13: Can I use this QSFP+ AOC for outdoor cabling or non-temperature-controlled warehouse environments? A: No. Standard AOC is designed only for indoor climate-controlled data centers, with no waterproof or ruggedized protection.

Q14: What support will I get if I receive bulk AOC with wrong vendor EEPROM coding after purchase? A: As your reliable QSFP+ AOC Active Optical Cable Supplier, HYTOPTODEVICE provides exchange, return or re-programming service for coding compatibility issues upon delivery.

Q15: Can I request custom non-standard lengths instead of stocked standard sizes for large enterprise orders? A: Standard lengths including 1m,3m,5m,7m,10m,15m,20m,30m are kept in stock. Custom lengths are available subject to MOQ requirements.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
