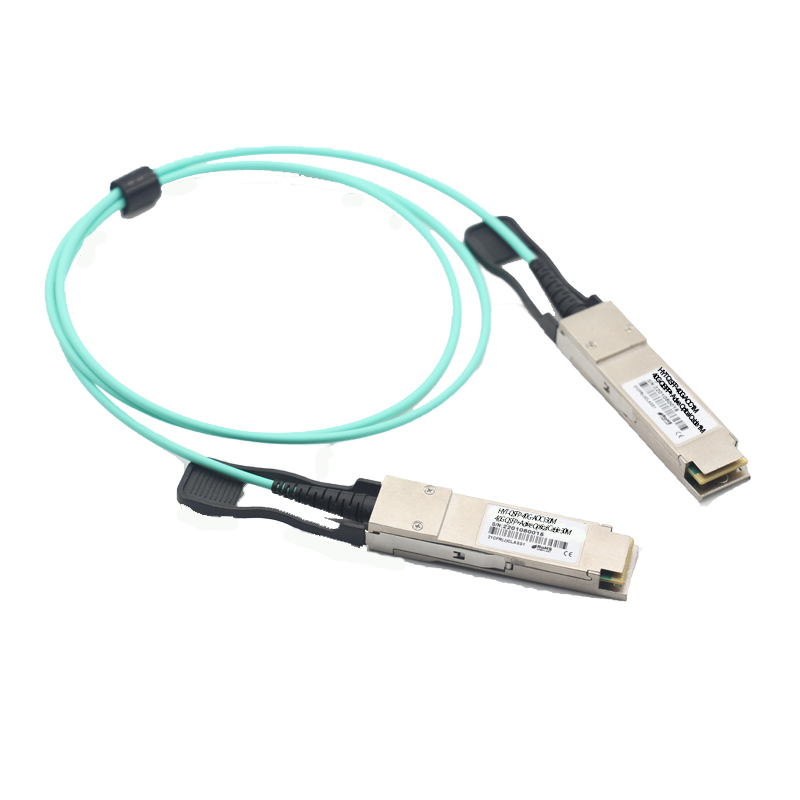

Cisco QSFP-H40G-AOC30M Compatible 40G QSFP+ AOC Active Optical Cable 30m(98ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE provides Cisco compatible 40G QSFP+ AOC Active Optical Cable, Cisco QSFP-H40G-AOC30M compatible 30m 40G QSFP+ to QSFP+ AOC, 40GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-H40G-AOC30M
2 Arista Networks AOC-Q-Q-40G-30M
3  Dell  CBL-QSFP-40GE-30M
4 Juniper Networks  JNP-40G-AOC-30M
5 NVIDIA/Mellanox   MC2206310-030
6 H3C QSFP-40G-D-AOC-30M
7 Extreme  40GB-F30-QSFP
8 Brocade  40G-QSFP-QSFP-AOC-3001
Description

Cisco QSFP-H40G-AOC30M Compatible 40G QSFP+ AOC Active Optical Cable 30m(98ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

This Cisco compatible 40G QSFP+ AOC Active Optical Cable is a Cisco matched 30m QSFP+ to QSFP+ active optical cable, fully coded to align with Cisco QSFP-H40G-AOC30M. Built with 850nm VCSEL parallel optical engine, it delivers stable 40Gbps full-duplex transmission and is immune to electromagnetic interference, perfectly suited for long-span inter-row and cross-rack connections inside climate-controlled data centers. HYTOPTODEVICE supports private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-40G-AOC30M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to QSFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 30m (98ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 40G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-EX, N9K-C9372PX, N9K-C9396PX, N9K-C93108TC-EX
  • Cisco Nexus 7000 Series: N7K-F348XP-25, N7K-M348XP-25L
  • Cisco Catalyst 9500 Series: C9500-16X, C9500-24X, C9500-32C
  • Cisco UCS 6300 / 6400 Fabric Interconnects: UCS-FI-6332, UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710, MDS 9250i
  • Cisco ASR 1000 Series: ASR1001-X, ASR1002-X
  • Cisco NCS 5500 Series: NCS-5501-SE, NCS-5502-SE

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 40G QSFP+ AOC active optical cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Data center leaf-spine 40G uplink interconnection
  • High performance computing HPC cluster networking
  • Storage area network SAN and server rack connectivity
  • Enterprise high-density switch interlinks
  • 40G Ethernet fabric deployment

Connectivity Solutions(Applications)

1. 40G to 40G Direct Link for Switch-Switch
hytoptodevice 40g qsfp+ active optical cable  link for switch to switch

2. 40G to 40G Direct Link for Switch-NIC
hytoptodevice, 40g qsfp+ to qsfp+ active fiber optic cable supplier


The Core Feature

1. Simplified Short-Reach Interconnect

Using AOC way replaces traditional solution, makes short-reach easy, no cleaning, lower total cost. perfect for In-rack & adjacent-rack links.

hytoptodevie compatible 40g qsfp+ aoc active optical cable for 40G Ethernet upgrade

2. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


3.Pre-Tested on Real Switches

Each 40G QSFP+  AOC cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.


4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What transmission distance can this Cisco compatible 40G QSFP+ AOC Active Optical Cable support for data center inter-rack links? A: Standard 40G QSFP+ AOC can reach up to 100m over OM3 or OM4 multimode fiber. Our Cisco compatible 40G QSFP+ AOC Active Optical Cable in 30m length is ideal for long cross-row connections that passive copper DAC cannot cover.

Q2: Can this 30m Cisco compatible 40G QSFP+ AOC be deployed in outdoor or non-climate-controlled environments? A: No, standard data center AOC such as our Cisco compatible 40G QSFP+ AOC Active Optical Cable is designed only for indoor climate-controlled environments between 0°C and 70°C. Outdoor deployments require armored fiber cables paired with separate transceivers.

Q3: What risks will heavy pulling force on the cable jacket bring to this long-distance 40G QSFP+ AOC cable? A: Internal fiber components inside AOC are fragile and cannot withstand strong tension. Rough pulling on the jacket may separate internal fiber cores from the transceiver ends. Our Cisco compatible 40G QSFP+ AOC Active Optical Cable should be routed gently during installation.

Q4: Will surrounding power distribution cables cause electromagnetic interference to this Cisco compatible 40G QSFP+ AOC Active Optical Cable? A: No. Optical signals transmit over glass fiber instead of copper conductors, so the cable is fully immune to EMI and RFI noise. This characteristic makes our Cisco compatible 40G QSFP+ AOC Active Optical Cable stable in dense power-heavy server racks.

Q5: Is this 30m Cisco compatible 40G QSFP+ AOC Active Optical Cable suitable for low-latency HPC and high-frequency trading fabric? A: Yes. It delivers consistent low latency and outstanding anti-interference performance, making our Cisco compatible 40G QSFP+ AOC Active Optical Cable a trusted option for HPC clusters and core data center backbone connections.

Q6: What information should I provide when ordering this Cisco compatible 40G QSFP+ AOC Active Optical Cable for Cisco switches? A: You need to confirm your exact switch model and firmware version. We pre-program the EEPROM chip to match Cisco requirements for smooth port recognition of our Cisco compatible 40G QSFP+ AOC Active Optical Cable.

Q7: Will Cisco IOS firmware updates trigger compatibility issues for this aftermarket 40G QSFP+ AOC? A: MSA-compliant AOC like our Cisco compatible 40G QSFP+ AOC Active Optical Cable works well with most minor firmware upgrades. Rare vendor lock updates may block third-party modules, and we can support re-coding service upon request.

Q8: Can field technicians reflash the EEPROM of this Cisco compatible 40G QSFP+ AOC Active Optical Cable to fit other brand switches? A: On-site reflashing requires dedicated programming hardware and software. Please confirm your target switch platform before ordering. HYTOPTODEVICE provides full technical support including coding boards and software for EEPROM programming.

Q9: Are open-source network operating systems like SONiC compatible with this Cisco matched 40G QSFP+ AOC? A: Yes. SONiC follows MSA specifications without strict vendor lock-in. Our Cisco compatible 40G QSFP+ AOC Active Optical Cable supports plug-and-play operation on open network operating systems.

Q10: Do both ends of this direct-connect AOC need separate EEPROM configuration? A: Yes, each QSFP+ end needs EEPROM data matching the connected switch hardware. Our team will complete dual-end coding according to your deployment plan for the 30m Cisco compatible 40G QSFP+ AOC Active Optical Cable.

Q11: What rack environmental conditions can lead to overheating of QSFP+ AOC transceiver modules? A: The 40g  transceiver modules are rated for 0°C–70°C. Poor airflow and poorly ventilated hot racks quickly raise operating temperature. You can monitor real-time module temperature via DDM data from our 30m Cisco compatible 40G QSFP+ AOC Active Optical Cable.

Q12: Will long-time operation at high ambient temperature shorten the service life of this 40G QSFP+ AOC? A: Continuous operation near or above 70°C accelerates laser diode aging and reduces service lifespan. Our 30m Cisco compatible 40G QSFP+ AOC Active Optical Cable passes temperature cycling testing to guarantee reliable long-term performance.

Q13: Does this Cisco compatible 40G QSFP+ AOC Active Optical Cable meet low-power requirements for green data center construction? A: Yes. Its power consumption stays below 1.4W, which helps reduce the total power budget for energy-saving data center designs.

Q14: What damage will occur if the AOC cable is crushed or squeezed heavily during routing? A: Heavy compression can crack the internal glass fibers and break the optical path, even if the outer jacket looks intact. Avoid sharp bends and crushing when running our Cisco compatible 40G QSFP+ AOC Active Optical Cable.

Q15: What is the rated plug and unplug cycle life for the pull-tab latches on these 40G QSFP+ AOC connectors? A: Standard pull-tab latches support roughly 50–100 normal insertion cycles. Rough pulling on the cable body easily breaks the latch. Every Cisco compatible 40G QSFP+ AOC Active Optical Cable from HYTOPTODEVICE manufacturer goes through latch inspection before shipment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
