| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-H40G-AOC7M | |
| 2 | Arista Networks | AOC-Q-Q-40G-7M | |
| 3 | Dell (Force10) | CBL-QSFP-40GE-7M | |
| 4 | Juniper Networks | JNP-40G-AOC-7M | |
| 5 | NVIDIA/Mellanox | MC2206310-007 | |
| 6 | H3C | QSFP-40G-D-AOC-7M | |
| 7 | Extreme | 40GB-F07-QSFP | |
| 8 | Brocade | 40G-QSFP-QSFP-AOC-0701 |

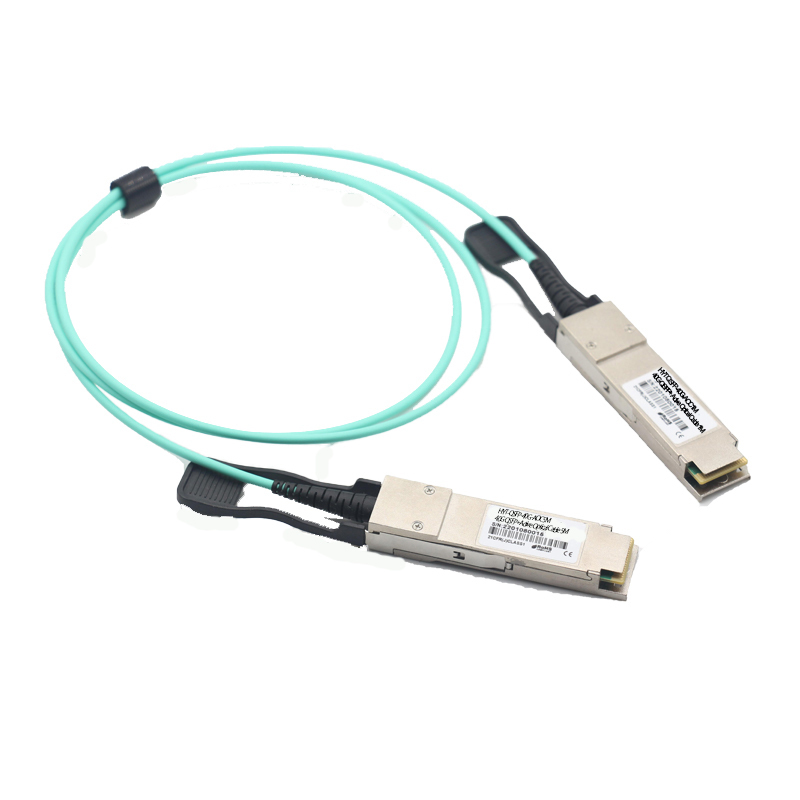

Key Technical Specifications
| Cisco Compatible |
QSFP-40G-AOC7M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP+ to QSFP+ | Max Data Rate | 40Gbps |
| Operating Wavelength | 850nm | Fiber Cable | OM3 MMF |
| Cable Length | 7m (23ft) | Power Consumption | ≤1.4W |
| Jacket Material | OFNP | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Minimum Bend Radius | 30mm | Protocols | 10G/40Gigabit Ethernet or Fibre Channel |
| Application |
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
|
Warranty | 5 Years |
Usage Guidelines & Best Practices
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this top 40g qsfp+ active optical cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.






Q1: What maximum reach can this premium 40G QSFP+ AOC support for intra-data center links? A: Standard 40G QSFP+ AOC products can cover transmission lengths from 1m up to 100m using OM3 or OM4 multimode fiber. HYTOPTODEVICE top 40g qsfp+ active optical cable works well for medium-long inter-rack links where copper DAC suffers from severe signal attenuation.
Q2: Can this Cisco compatible 7m 40G AOC be deployed in outdoor or non-temperature-controlled spaces? A: No, regular data center-grade AOC such as our Cisco QSFP-H40G-AOC7M compatible top 40g qsfp+ active optical cable is designed only for indoor climate-controlled environments within 0°C–70°C. Outdoor installation needs armored rugged fiber cables paired with separate transceivers.
Q3: What risks arise from excessive tension applied to AOC during cabling installation? A: No, AOC structures cannot withstand large pulling tension. Excessive force on the outer jacket while routing may separate internal fiber cores from the transceiver module, please carefully deploy our Cisco compatible top 40g qsfp+ active optical cable on site.
Q4: Will nearby power distribution cables interfere with signal transmission of this 40G QSFP+ AOC? A: No. AOC transmits data via light signals over glass fiber instead of electrical signals, so it is fully resistant to EMI and RFI interference. This feature keeps our top 40g qsfp+ active optical cable stable in densely cabled power cabinets.
Q5: Is this 7m 40G QSFP+ AOC suitable for low-latency HPC and high-frequency trading fabric? A: Yes. Its low latency, lightweight structure and anti-interference characteristics make HYTOPTODEVICE top 40g qsfp+ active optical cable a preferred solution for HPC clusters and data center core backbone connections.
Q6: What pre-checks should be done before deploying third-party 40G AOC on Cisco switches? A: You need to select the variant pre-coded for your target switch brand when placing orders. Uncoded or wrongly programmed cables may trigger port shutdown. Our Cisco compatible top 40g qsfp+ active optical cable comes with pre-written EEPROM matching Cisco IOS requirements.
Q7: Could Cisco switch firmware upgrades trigger compatibility failures for aftermarket 40G QSFP+ AOC? A: Premium AOC built with MSA-compliant EEPROM chips can withstand most routine minor firmware upgrades. Rare strict vendor security patches may block non-original modules. Every QSFP-H40G-AOC7M compatible top 40g qsfp+ active optical cable from us follows MSA specs for better firmware compatibility.
Q8: Can end users rewrite the AOC EEPROM to match other network hardware vendors later? A: No, ordinary AOC cannot be easily reflashed on-site without professional programming hardware. You should confirm the required compatibility before ordering. HYTOPTODEVICE can provide corresponding technical support according to customer requirements, including coding boards and coding software for EEPROM programming.
Q9: Are open-source network operating systems fully compatible with MSA-standard 40G QSFP+ AOC? A: Yes. Open networking operating systems usually do not enforce strict vendor lock-in restrictions. Generic or openly coded AOC can plug and play smoothly. Our Cisco compatible top 40g qsfp+ active optical cable also delivers stable performance on open-source network OS platforms.
Q10: Does each connector end of this direct 40G AOC link require matched EEPROM configuration? A: Yes, the EEPROM configuration on each cable end must match the switch model it connects to. Our sales team can verify coding requirements for your Cisco switches when you place bulk orders for top 40g qsfp+ active optical cable.
Q11: Which environmental factors inside server racks can lead to AOC transceiver overheating? A: The built-in thermal design maintains normal operation within the rated 0°C–70°C range. Sealed racks with zero airflow will raise transceiver temperature rapidly. You can monitor DDM metrics of our top 40g qsfp+ active optical cable to prevent overheating risks.
Q12: Will long-running high ambient temperature shorten the usable service life of 40G QSFP+ AOC? A: Long-term operation near or above the 70°C upper limit will gradually degrade the internal laser diode and reduce service life. Our top 40g qsfp+ active optical cable passes full temperature cycling testing to guarantee long operating lifespan.
Q13: Are low-power 40G AOC alternatives available for green data center deployments? A: Yes. Advanced CMOS chipset designs help cut power consumption. Our Cisco QSFP-H40G-AOC7M compatible top 40g qsfp+ active optical cable controls power draw below 1.4W to support energy-efficient data center builds.
Q14: What internal damage can compression and heavy physical pressure bring to a QSFP+ active optical cable? A: Yes. Squeezing or stepping on the AOC may crack internal glass fibers and break the data path, even if no obvious damage appears on the outer jacket. Proper cable management is essential to protect our top 40g qsfp+ active optical cable.
Q15: What is the rated plug/unplug cycle life of the pull-tab latches on these 40G QSFP+ AOC connectors? A: Standard pull-release latches are designed for routine data center maintenance, supporting roughly 50–100 insertion cycles. Rough pulling may break the latch assembly. Every top 40g qsfp+ active optical cable from HYTOPTODEVICE goes through latch inspection before shipment.
