Product Detail:

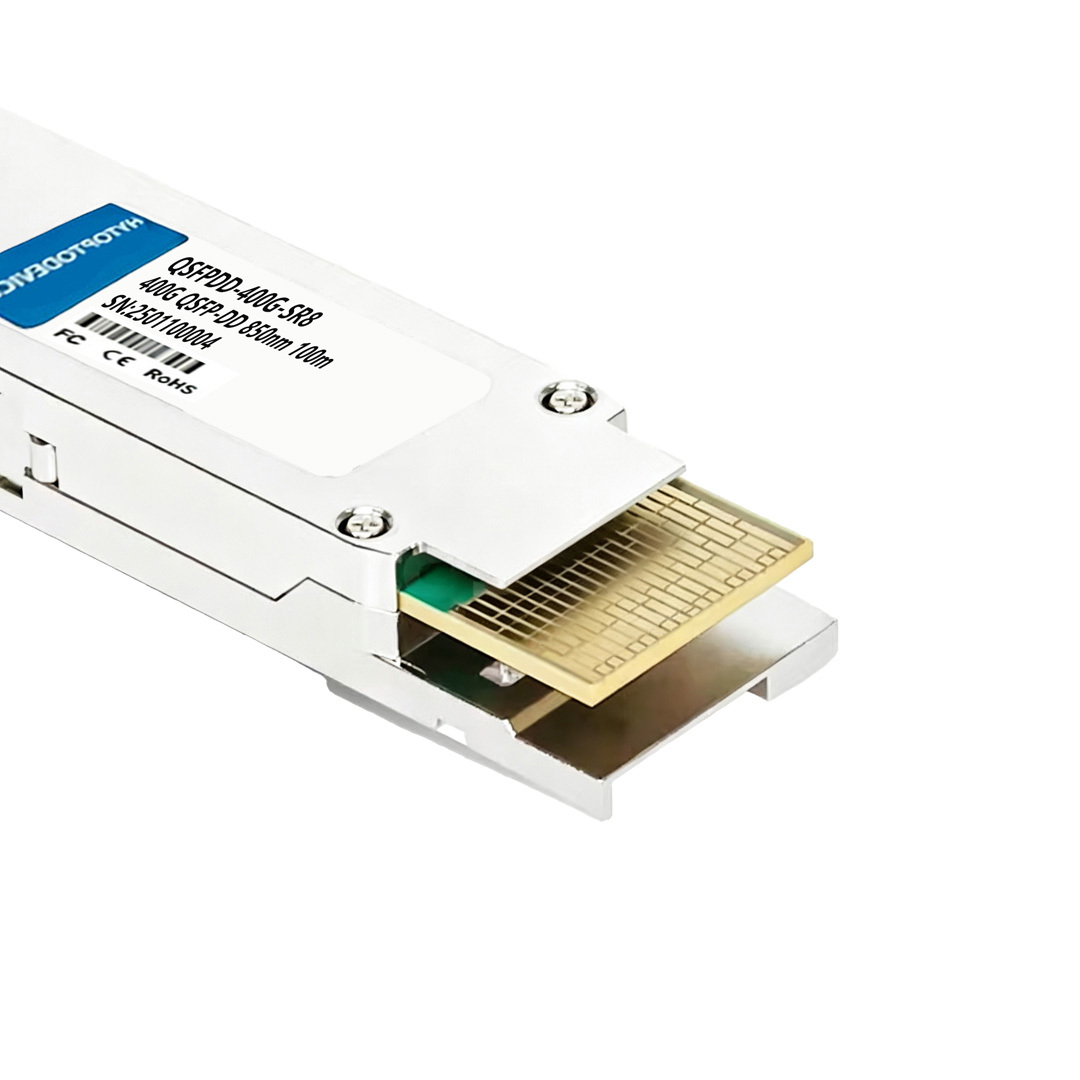

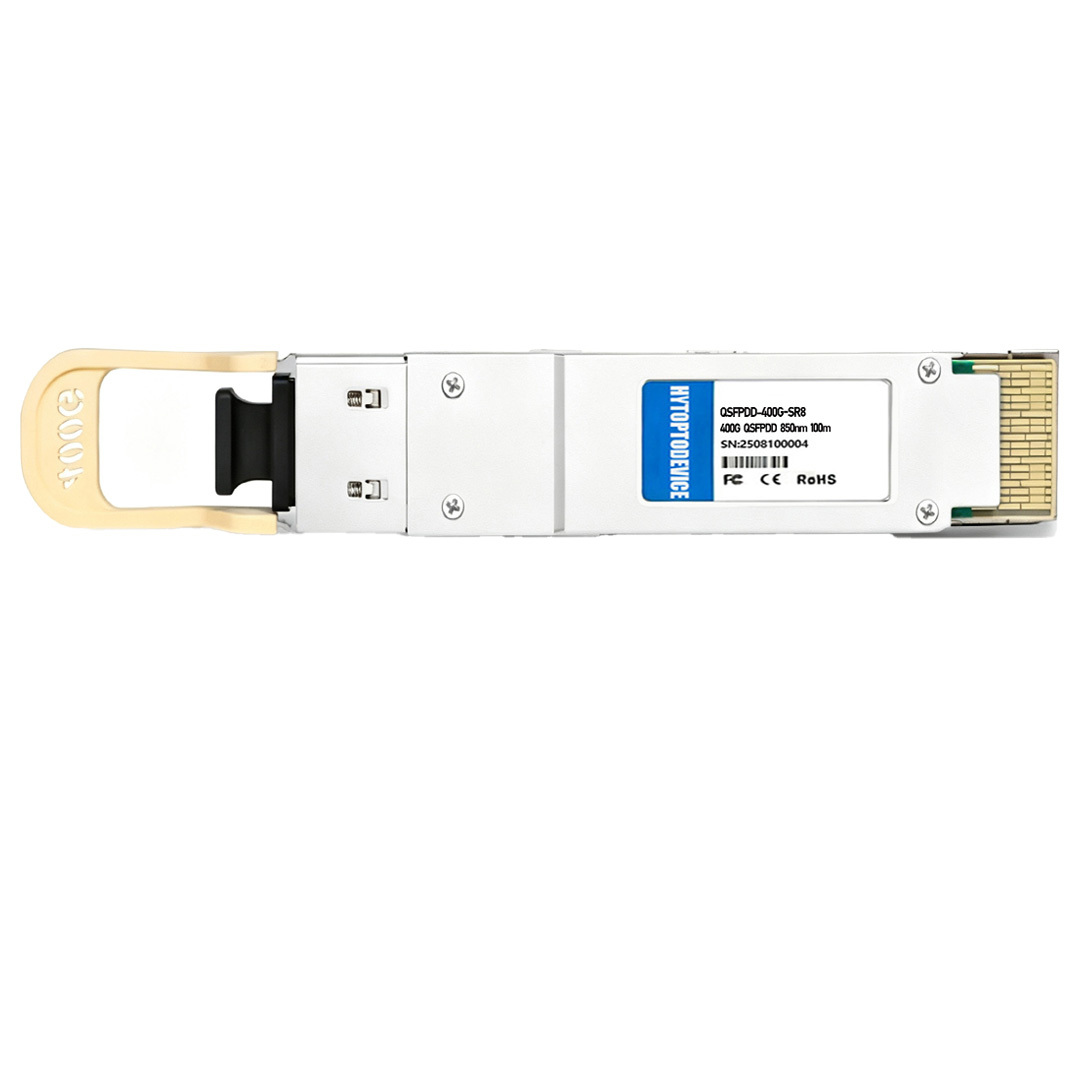

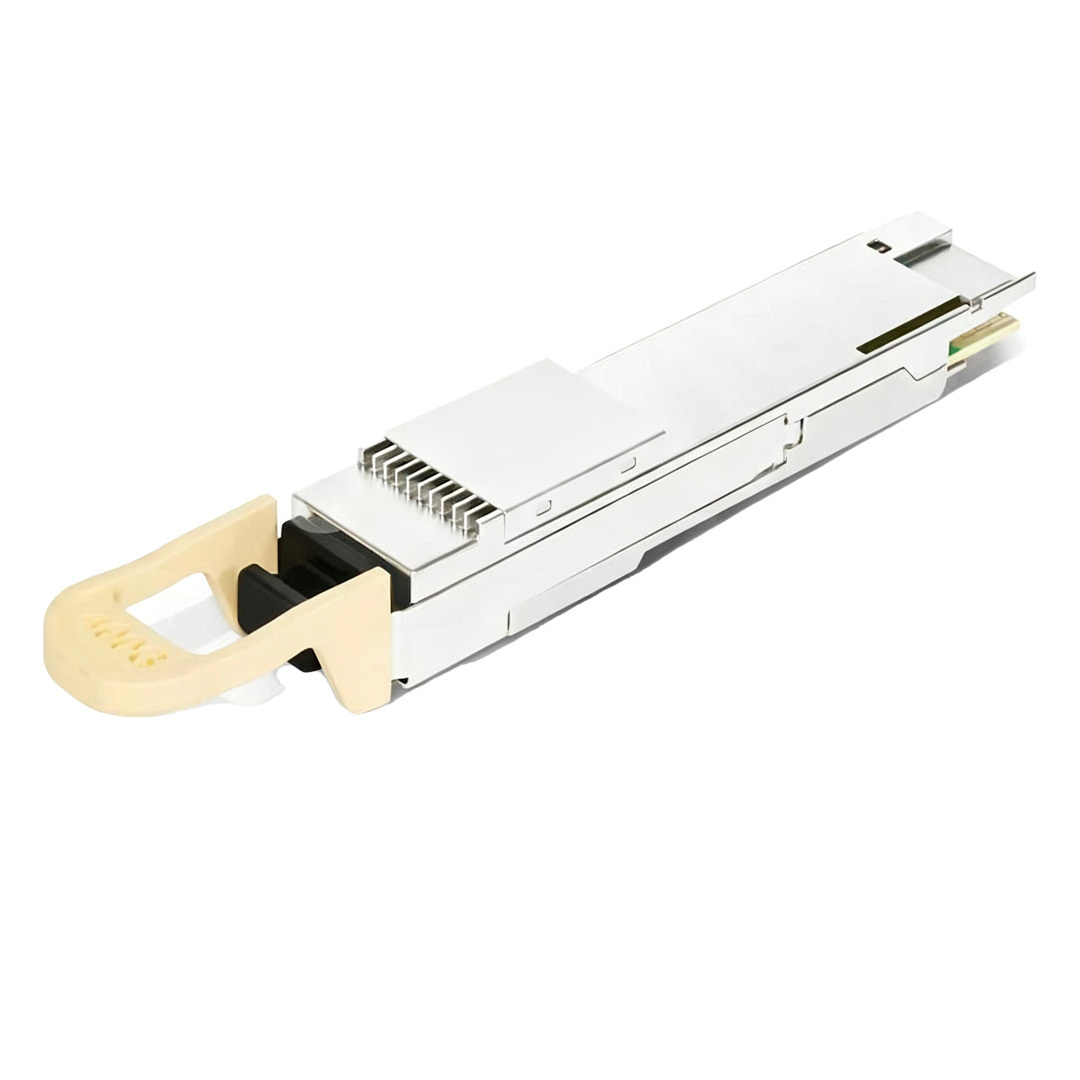

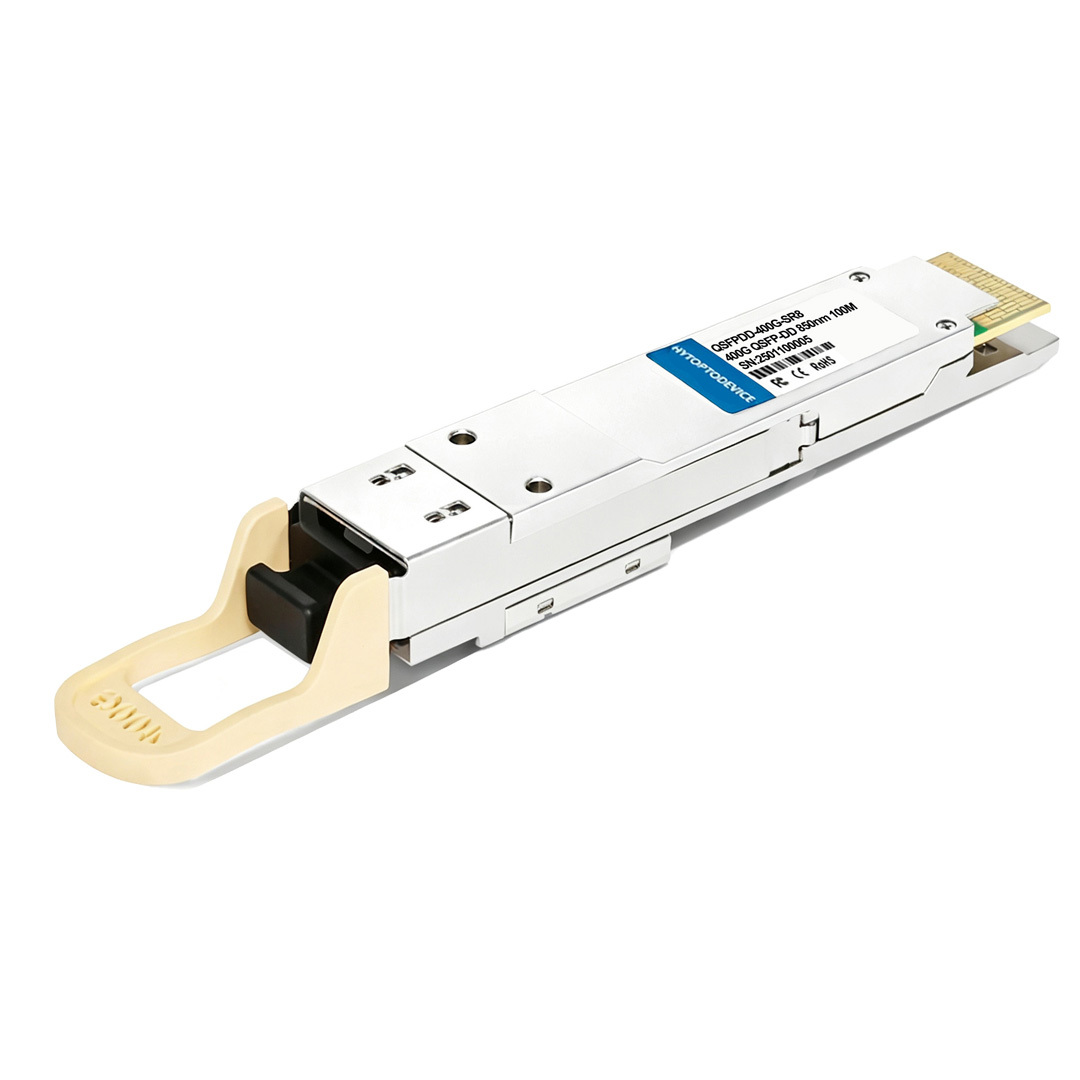

HYTOPTODEVICE Cisco QDD-400G-SR8-S Compatible | 400GBASE-SR8 QSFP-DD 100m MMF | Optical Transceiver Module
The HYTOPTODEVICE QDD-400G-SR8-S is a Cisco-compatible 400G QSFP-DD transceiver for short-range data center links. It reaches 100m over OM4 fiber using 8 parallel PAM4 lanes at 850nm. Plug-and-play compatible with Cisco Nexus 9000, 8000 Series, and ASR 9000 — no firmware changes needed.
In addition to QSFP-DD 400G SR8 module,HYTOPTODEVICE offer a full model,Want to understand all 400G QSFP-DD variants? please visit complete guide for 400G QSFP-DD optical transceiver.
Compatibility and Supported Devices
The HYTOPTODEVICE Cisco QDD-400G-SR8-S pluggable transceiver is rigorously firmware-tested for "Plug-and-Play" performance on:
-
Cisco Nexus 9000 Series: N9K-C9316D-GX, N9K-C93600CD-GX, N9K-C9332D-GX2B.
-
Cisco 8000 Series Routers: 8201-32FH, 8202-32FH, 8800-LC-36FH.
-
Cisco ASR 9000 Series: A99-10X400GE-X-SE, A99-10X400GE-X-TR.
-
Cisco Nexus 3000 Series: N3K-C3408-S, N3K-C3432D-S.
-
Operating Systems: Native support in Cisco NX-OS and IOS XR, featuring full DDM/DOM monitoring for real-time power and temperature diagnostics.
Primary Application Scenarios
-
Intra-Rack & Rack-to-Rack: The primary 400G solution for short-distance server-to-switch or switch-to-switch links in high-density racks.
-
400G to 2x200G Breakout: Can be configured to breakout into two 200G-SR4 signals for flexible fabric scaling.
-
400G to 8x50G Breakout: Supports high-density fan-out to 50G endpoints using MPO-16 to 8x LC breakout cables.
-
HPC Clusters: Ideal for low-latency interconnects in Artificial Intelligence (AI) and Machine Learning (ML) compute pods.
Key Product Parameters
| Cisco Compatible |
QDD-400G-SR8-S |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP-DD |
Max Data Rate |
425Gbps |
| Wavelength |
850nm |
Max Distance |
70m on OM3/100m on OM4 |
| Modulation Format |
8x50G-PAM4 |
Host Required |
FEC |
| Connector |
MTP/MPO-16 |
Voltage Supply |
3.3V |
| Cable Type |
MMF |
DDM Support |
Yes |
| Transmitter Type |
VCSEL 850nm |
Receiver Type |
PIN |
| TX Power |
-6.5~+4.0dBm |
Receiver Sensitivity |
< -7.9dBm |
| Maximum Power |
< 12W |
Operation Temperature |
0 to 70°C (32 to 158°F) |
| Protocols |
QSFP-DD MSA, IEEE 802.3bs |
Application |
400G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Connectivity Solutions(Applications):
Scenarios 1:400G Switch Link 400G Switch

Scenarios 2:400G Switch Link 50G Switch

Scenarios 3:400G Switch Link 200G NIC

FAQ for Cisco QDD-400G-SR8-S Compatible QSFP-DD Transceiver Modules
Q1:What is QDD-400G-SR8? A:The 400G QSFP-DD SR8 is a hot pluggable optical transceiver module with a speed of 400Gbps, a wavelength of 850nm, and a transmission distance of up to 100m with OM4 MMF. It is ideal for data centre, 400G Ethernet and Infiniband Interconnects.
Q2:What is the maximum distance of the QDD-400G-SR8-S? A:The HYTOPTODEVICE QDD-400G-SR8-S supports up to 100m over OM4 MMF and 70m over OM3 MM
Q3:What fiber connector is required for the Huawei QSFP-DD-400G-SR8?A:The 400G QSFP DD SR8 module uses an MPO-16/APC connector. It is very important for 400G/800G MMF links to use the APC (Angled Physical Contact) polish. that can minimize back-reflection and maintain signal quality.
Q4:How does this differ from the 400G-DR4 or SR8 modules?A:DR4 is for single-mode fiber (500m), the SR8 is a short-reach (100m) multimode solution. Unlike the DR4 (4-lane), the 400G QSFP-DD SR8 uses 8 parallel lanes, providing better granularity for 50G/100G breakout applications in high-density AI clusters.
Q5:Does the HYTOPTODEVICE QSFP-DD-400G-SR8 support breakout to 50G?A:Yes. The 400G QSFP-DD SR8 utilizes parallel SR8 architecture, supporting 8x50G breakout. that allows you to connect one 400G OSFP port to eight separate 50G SFP56 SR ports with an MPO-16 breakout cable. 400G QSFP-DD SR8 manufacturer china HYTOPTODEVICE support breakout to 50G.
Q6:Where to buy 400G QSFP DD SR8 optical transceiver?A:There are many manufacturers that produce and sell 400G fiber optical modules, but 400G QSFP-DD SR8 manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.
Q7:The link is "Up" but I have high packet loss. Why? A:There could be two reasons,1. Dirty connectors:tiny dust particles can obstruct signal transmission. Please use fiber optic cleaner to clean the connector. 2. Fiber optic cable bending: avoid severe bending of the fiber optic cable.
Q8:Is the 400G QSFP-DD SR8 backward compatible with lower-speed modules,such as 100G?A:Yes,The 400G SR8 is backward compatible with lower-speed optical transceivers, such as 200G,100G and 50G, but the performance will be reduced.
Q9:How do HYTOPTODEVICE ensure 400G QSFP-DD SR8 module compatibility with network switch?A:Ensuring 100% compatibility, optical modules must be coded to match the switch's requirements. Source-factory HYTOPTODEVICE was equipped with various high-speed switch,the brands include such as Cisco,NVIDIA,Huawei. highly professional in coding equipment for various brands to ensure they are recognized and running in your device.
Q10:Is QDD-400G-SR8 hot-swappable?A:HYTOPTODEVICE fiber transceiver modules are hot-pluggable, hot Pluggable QSFP-DD MSA Compliant.you can plug or unplug the optical transceiver, while the device is powered on without damaging the hardware.
Q11:Why Choose HYTOPTODEVICE for Huawei QSFP-DD-400G-SR8?A: High-Speed Optical Transceiver Manufacturer China HYTOPTODEVICE ensures that the QDD-400G-SR8 is coded and tested for full compatibility with major switch vendors (such as Cisco, Juniper, NVIDIA/Mellanox, and huawei). They verify the EEPROM settings to ensure "plug-and-play" functionality without port-recognition errors.
Q12:Does it use MPO-12 or MPO-16?A:The 400G QSFP-DD SR8 must use MPO-16 (APC) connectors. The reason is that SR8 uses 8 channels for transmission (Tx) and 8 channels for reception (Rx) (a total of 16 optical fibers). and MPO-12 fiber optic cables were not suitable.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 500,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- 100% MSA-compliant modules with Cisco, Huawei,Dell,Juniper, and Arista compatibility
- ISO 9001:2015 certified manufacturing facility in Shenzhen
- Average lead time of 3–5 business days with DHL/FedEx express options
- Dedicated pre-sales engineering support for custom configurations
- Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
- We can provide inspection and shipping videos to make you feel as if you are right here with the product.
