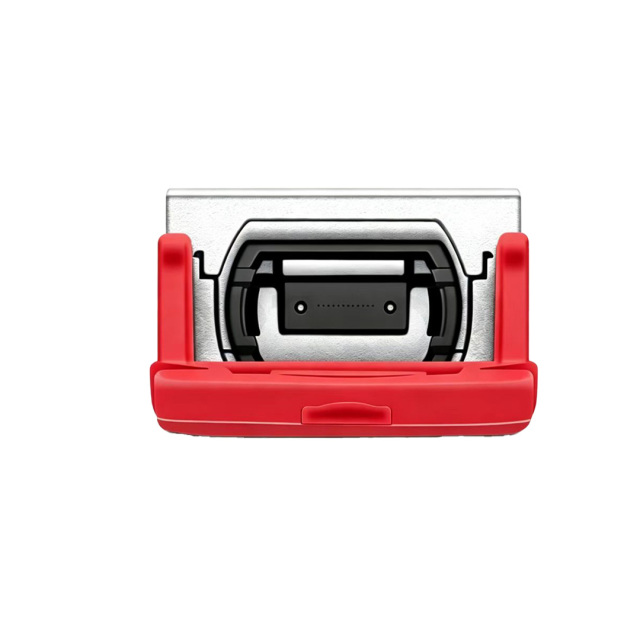

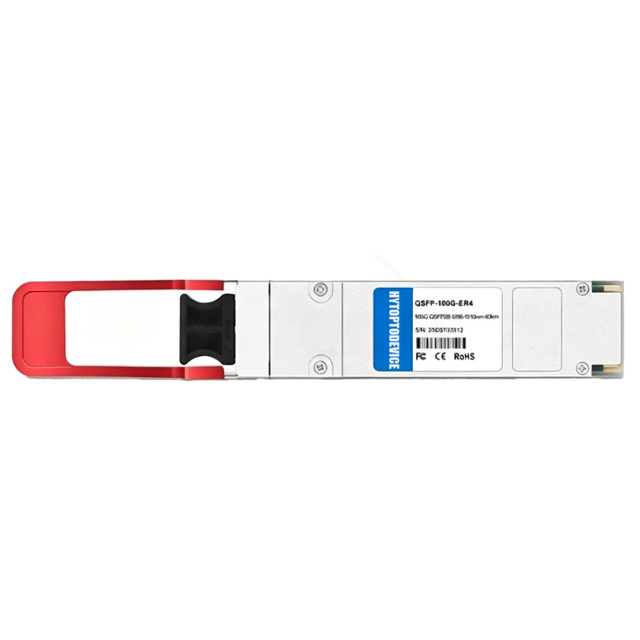

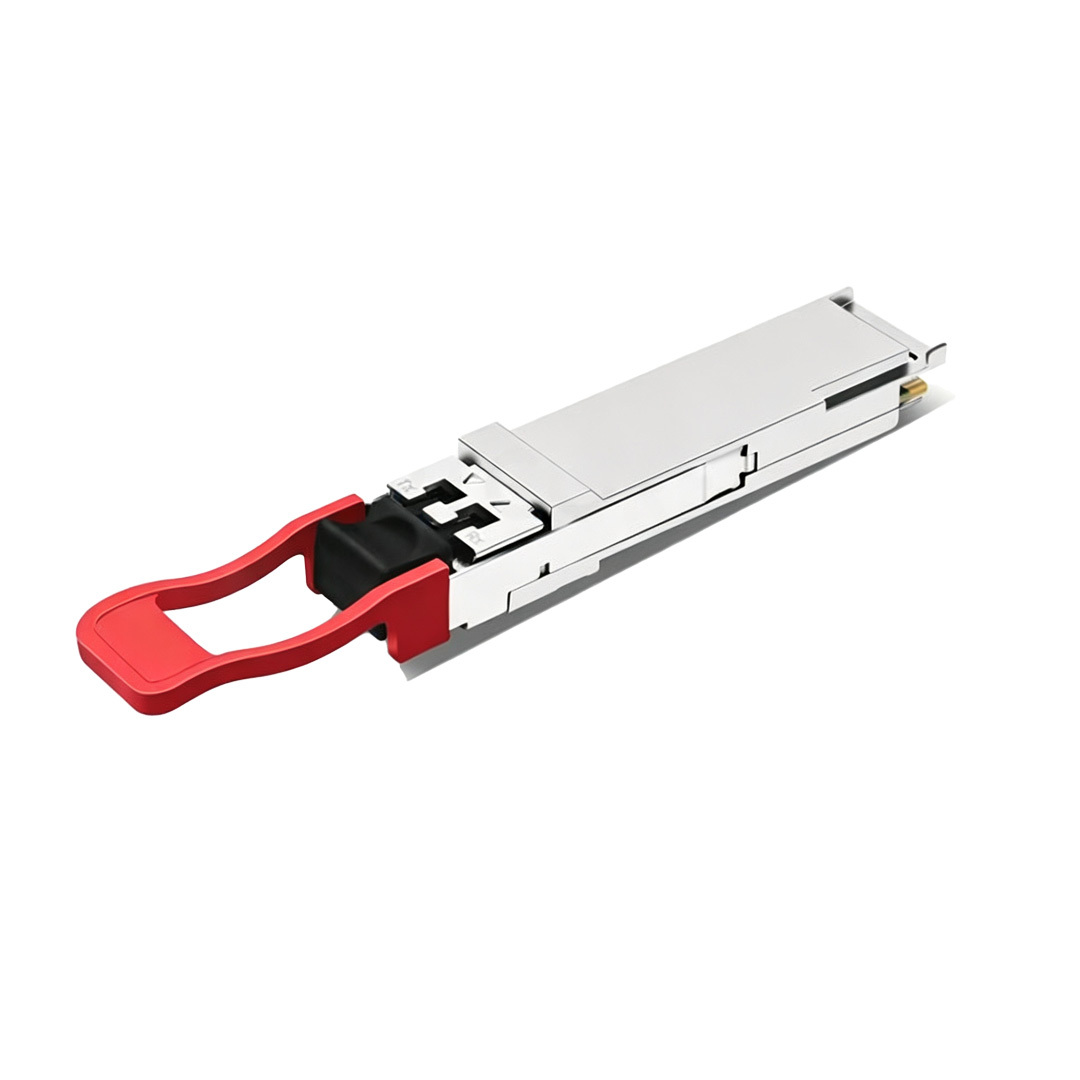

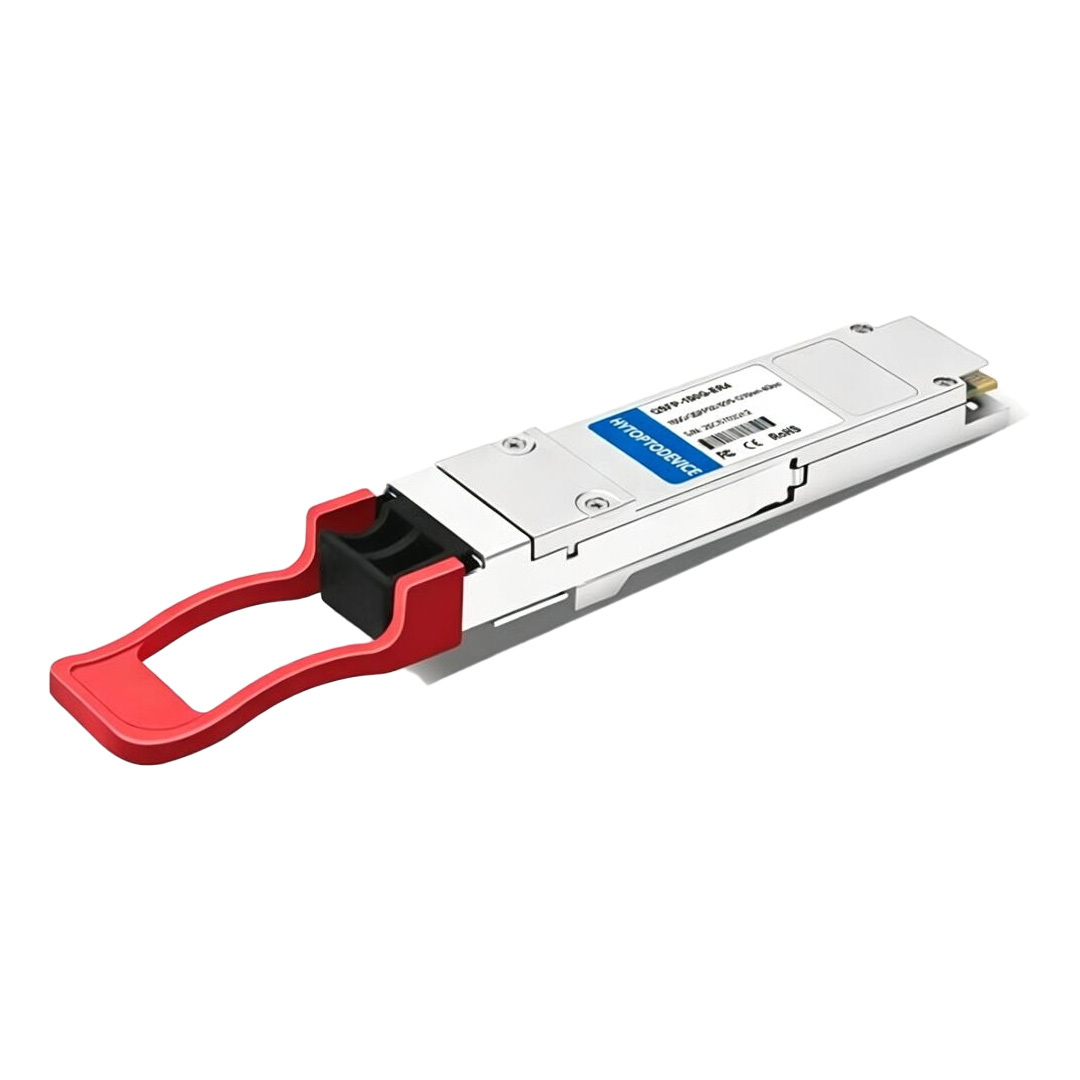

Cisco QSFP-100G-ER4L-S Compatible 100G QSFP28 ER4 Optical Transceiver – 100GBASE-ER4L 1310nm 40km Single-Mode LC OpticProduct Overview
The QSFP-100G-ER4L-S (ER4-Lite) compatible transceiver is an enterprise-grade 100G QSFP28 ER4 Optical Transceiver, optimized for high-capacity Data Center Interconnects (DCI) and metro networking. Utilizing advanced 1310nm LAN-WDM technology, it delivers a robust 40km reach over Single-Mode Fiber (SMF) with Duplex LC connector. Compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4 and full DDM/DOM. this hot-swappable EML laser 100G QSFP28 ER4 Optical Transceiver is engineered for seamless "Plug-and-Play" integration into Cisco NX-OS and IOS-XE environments, providing a high-reliability, low-cost alternative to OEM optics without compromising signal integrity.It is ideal for 100G telecom links, data centers, high-performance computing networks, and enterprise core applications.
Key Technical Specifications
| Cisco Compatible |
QSFP-100G-ER4L-S |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps |
| Wavelength |
4 x LAN WDM (1295、1300、1305、1310nm) |
Max Distance |
30km without FEC 40km with FEC |
| Connector |
Duplex LC |
Transmitter Type |
4 x LAN WDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
-2.5~+4.5dBm |
Receiver Sensitivity |
<-16.9dBm without FEC <-20.9dBm with FEC |
| Protocols |
100G Ethernet, MSA Compliant |
Power Consumption |
< 4.0W |
For detailed technical specifications, please refer to the
Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.
-
Optical Attenuator Required for Short Links: For testing or short‑distance connections (<15km), connect a 10dB–15dB optical attenuator to the RX port to prevent damaging the receiver.(15KM<Distance<35km,connect 5‑10dB optical attenuator),ensuring the received power <-3dBm.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.
- Mode Setting: Configure 100G port speed via switch CLI. This ER4 module does not support breakout to 4×25G.
For detailed operation instructions, please refer to the
User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Cisco Compatibility
Every HYTOPTODEVICE 100G QSFP28 ER4 Optical Transceiver undergoes 72-hour continuous high-traffic aging testing and real-machine verification on official Cisco IOS platforms. It achieves zero device recognition failure, no system alarm prompts and complete normal DDM data display on Cisco device management interfaces. It can directly replace the original Cisco QSFP-100G-ER4L-S module without extra command configuration modification, providing complete test reports and engineering acceptance documents for enterprise and operator network projects.
Compatible Cisco Device Series:
-
Cisco Nexus 9000 / 7000 / 3000 Series Data Center Core & Fabric Switches
-
Cisco Catalyst 9500 / 9300 Series Enterprise High-End Core Switches
-
Cisco ISR 4000 Series Integrated Service Routers & WAN Edge Devices
-
Cisco Cross-Room DCI Interconnection and Metropolitan Long-Haul Trunk 100G Ports
2.Multi-Brand Cross Compatibility
Compliant with global unified MSA and IEEE 802.3ba protocols, the 100G QSFP28 ER4L Optical Transceiver supports barrier-free optical interconnection with mainstream network devices worldwide. Custom EEPROM firmware coding solves exclusive vendor authentication limitations, ensuring stable operation in mixed-brand network environments. Verified compatible with Cisco, NVIDIA Mellanox, Arista, Juniper, HUAWEI, H3C and other mainstream network brands.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
-
Bulk replacement and upgrade of aging Cisco QSFP-100G-ER4L-S modules for Cisco data center DCI long-distance interconnection
-
Metropolitan area network backbone construction adopting 100G QSFP28 ER4 Optical Transceiver to build 40km low-loss single-mode long-haul trunk links
-
Enterprise cross-city branch network interconnection deploying high-stability 100G QSFP28 ER4 Optical Transceiver for long-distance 100G bandwidth transmission
-
Operator edge room bandwidth expansion using low-BER 100G QSFP28 ER4 Optical Transceiver for medium and long-distance optical transmission
-
System integrator custom-coded 100G QSFP28 ER4 Optical Transceiver for multi-brand hybrid Cisco network integration projects
-
High-reliability industrial network transformation adopting temperature-resistant 100G QSFP28 ER4 Optical Transceiver for long-haul trunk link deployment
Connectivity Solutions(Applications)

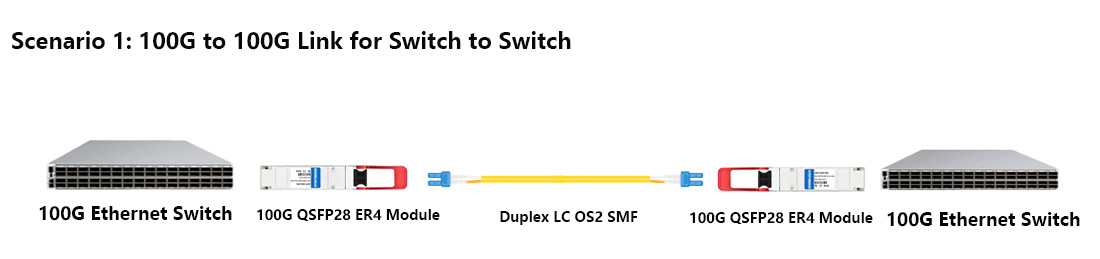

1. 100G Switch-to-Switch Interconnection

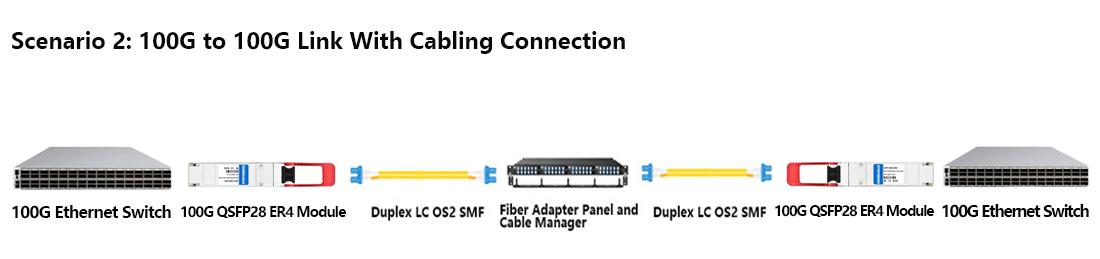

2.100G Long-haul Switch Link with Structured Cabling

The Core Features
1.Broad 100G Data Center Applicationg
Supports reliable, high-efficiency long-haul data transmission between core and spine network layers, fully satisfying deployment requirements for large-scale data centers.

2. 100G High-Speed Data Center Connectivity
Featuring 4.0W low power draw, high port density and exceptional speed, this QSFP28 ER4L transceiver unlocks fast, seamless upgrades to 100G transmission for your data center infrastructure.

3. Host-Tested for Proven Interoperability
Every module undergoes rigorous compatibility validation on target host switches, ensuring stable, error-free operation in your live network environment.Specific Compatibility Video available upon request.

4.Comprehensive Reliability Testing
Validated via stringent procedures using advanced test equipment, guaranteeing premium-grade, dependable optical performance for your network deployments. Curious how? Tour the
Test Center.

FAQ
Q1:What is QSFP28 100G ER4 module?
A:The 100G ER4 is a hot pluggable optical transceiver module.It is typically built in a QSFP28 form factor, uses a SMF to transmit distance up to 40km through 1310nm LAN-WDM technology.
Q2: Do I absolutely need an optical attenuator for short test runs with 100G QSFP28 ER4 Optical Transceiver?
A: Yes, an optical attenuator is mandatory for all short-distance test runs. ER4 modules adopt high-sensitivity APD receivers with ultra-high receiving gain. Direct short-distance connection without a 10dB–15dB fixed optical attenuator will cause optical power overload, resulting in permanent burnout of the module receiver, which damages the 100G QSFP28 ER4 Optical Transceiver and affects long-term Cisco network operation.
Q3:What fiber and connector does this 100g er4 module use?
A:The 100G ER4 module uses duplex LC connector with SMF.
Q4:Does the QSFP-100G-ER4L-S support real-time monitoring?
A:Yes, it supports Digital Optical Monitoring (DOM) for real-time monitoring of optical power,laser bias current,temperature and voltage.
Q5:What does "ER4" stand for in 100G ER4?
A: ER4 stands for "Extended Reach with 4-Channel". It uses 4 x LAN WDM (1295、1300、1305、1310nm) technology to transmit 100G traffic over SMF up to 40km.
Q6:Can I use this module with a single strand of fiber (Simplex)?
A: No.The 100G QSFP28 ER4 module requires two strands of single-mode fiber: one for transmitting (TX) and one for receiving (RX). you can not transmit data by a single strand of fiber.
Q7:Q: What are the technical differences between 100G ER4 vs 10G ER?
A: The difference as follow:
| Feature |
QSFP28 100G ER4 / ER4L |
SFP+ 10G ER |
| Data Rate |
100 Gbps |
10 Gbps |
| Form Factor |
QSFP28 |
SFP+ |
| Max Reach |
40km (ER4L requires FEC) |
40km |
| Fiber Type |
Single-Mode Fiber (SMF) |
Single-Mode Fiber (SMF) |
| Wavelength |
1310nm (LAN-WDM 4-lanes) |
1550nm (Single-lane) |
| Connector |
Duplex LC |
Duplex LC |
| Power Consumption |
~4.5W |
~1.5W |
Q8:Can I use this in an outdoor enclosure?
A: NO.the QSFP-100G-ER4L-S is for Commercial Temperature (C-Temp) rated for 0°C to 70°C. if you want to use it in outdoor enclosure. the Industrial Temperature (I-Temp) 100G ER4 module was recommended.
Q9:Can QSFP 100G QSFP28 ER4 module be linked with 10G SFP+ER?
A:NO, you can not connect 100G ER4 with 10G ER. Their speed is different(100G vs 10G), different wavelengths (1310nm vs 1550nm), and they operate different modulation techniques.
Q10: Does Cisco-compatible 100G QSFP28 ER4 Optical Transceiver require host FEC for full 40km transmission reach?
A: Yes. Most modern industrial-grade 100G QSFP28 ER4 Optical Transceiver rely on host-enabled RS-FEC (Clause 91) error correction mechanism to achieve the standard full 40km long-reach transmission distance. If RS-FEC is disabled on Cisco switch hosts, the effective stable transmission distance will drop to approximately 30km, failing to meet official ER4 long-haul deployment standards.
Q11: Will custom-coded 100G QSFP28 ER4 Optical Transceiver pass unsupported transceiver checks on Cisco and Juniper switches?
A: Standard generic modules cannot pass strict OEM hardware lock-in verification. HYTOPTODEVICE 100G QSFP28 ER4 Optical Transceiver supports professional third-party vendor-specific EEPROM coding customization, which can perfectly bypass strict authentication and unsupported transceiver checks of Cisco, Juniper and other mainstream switches, realizing plug-and-play deployment without system alarms.
Q12: Why does Cisco switch CLI display checksum error after inserting generic 100G QSFP28 ER4 Optical Transceiver?
A: The CLI checksum error is mainly caused by corrupted data or non-standard configuration in the module’s EEPROM coding, which is a common defect of inferior third-party modules. HYTOPTODEVICE 100G QSFP28 ER4 Optical Transceiver adopts dual verification EEPROM programming process to ensure complete and error-free firmware data, completely eliminating checksum error alarms on Cisco switching devices.
