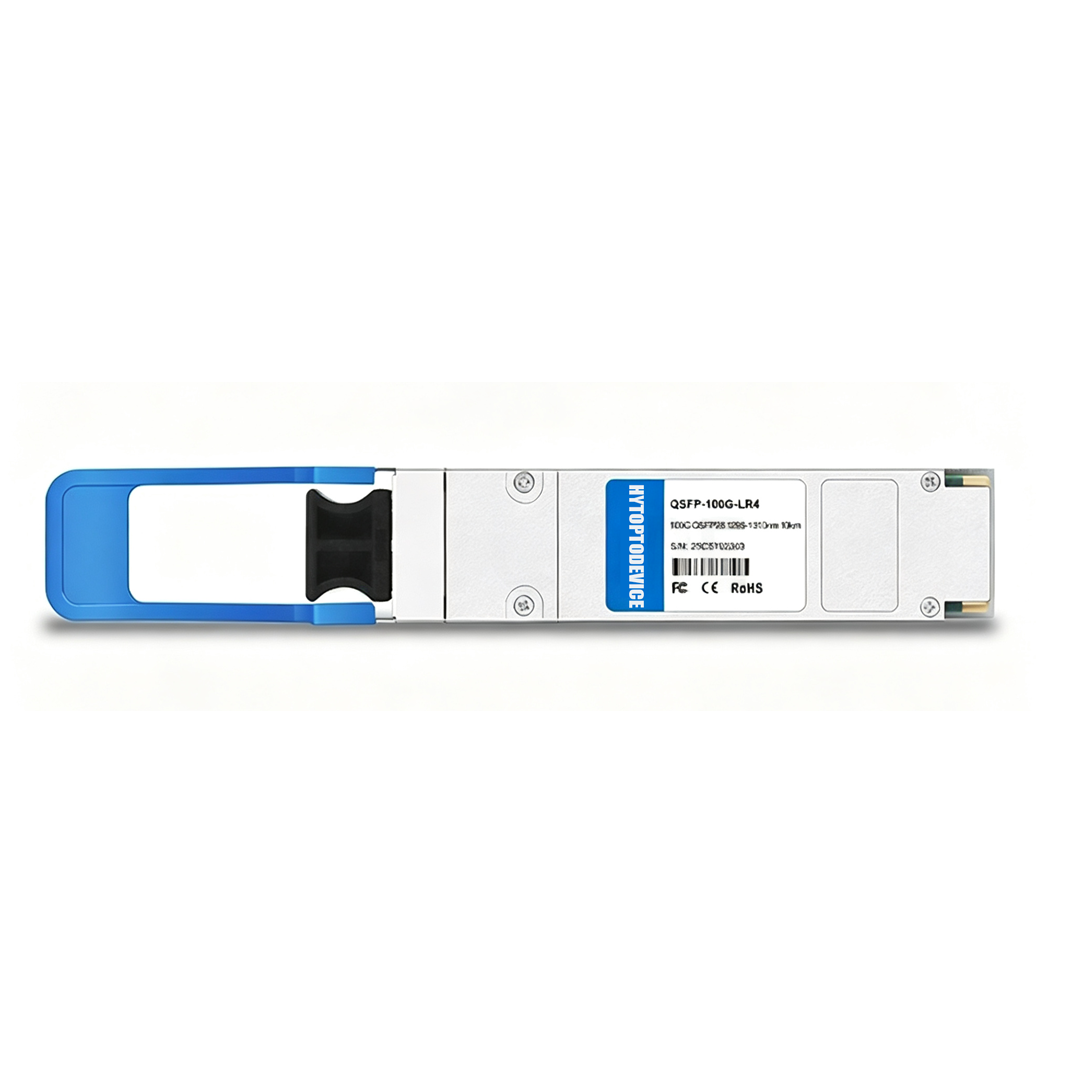

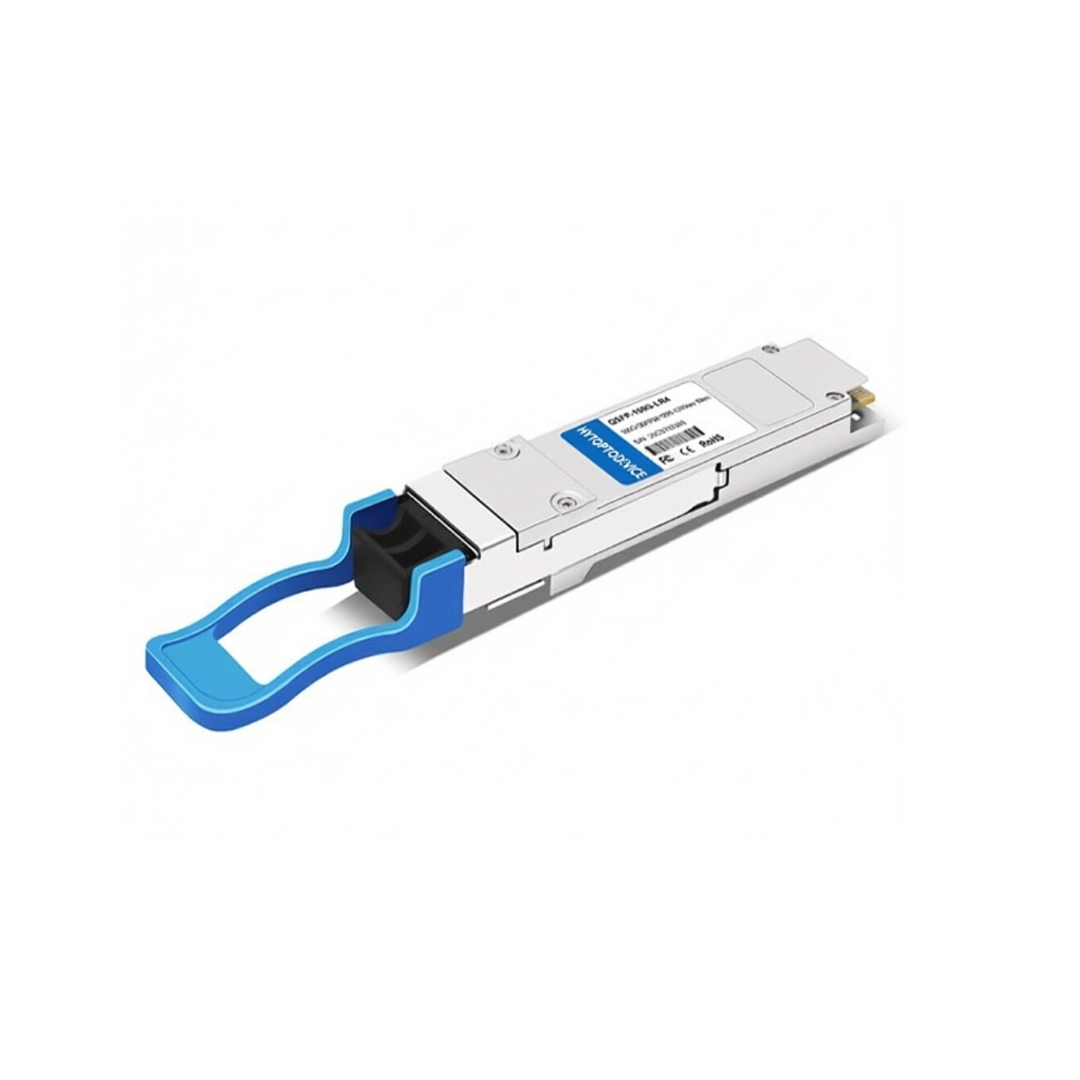

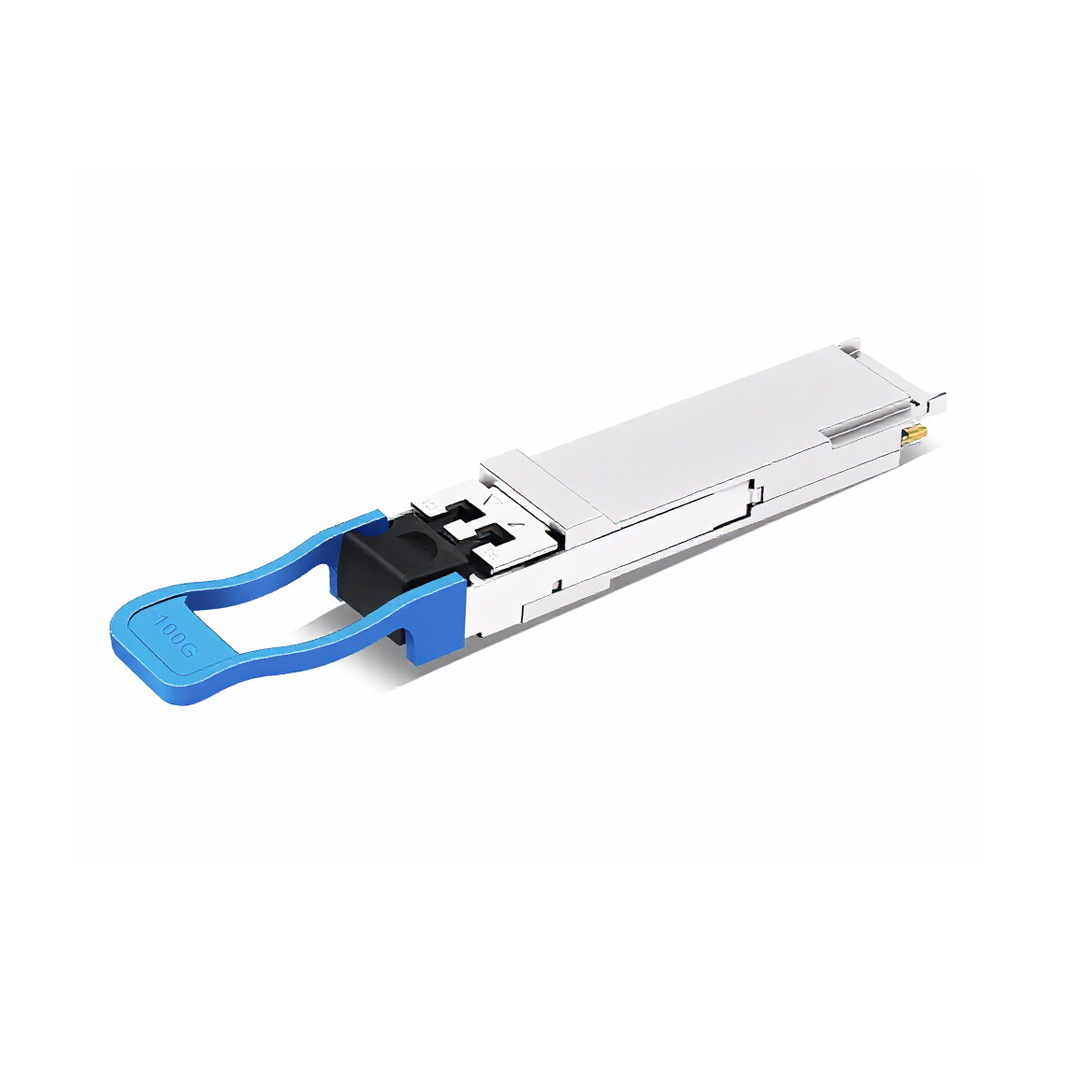

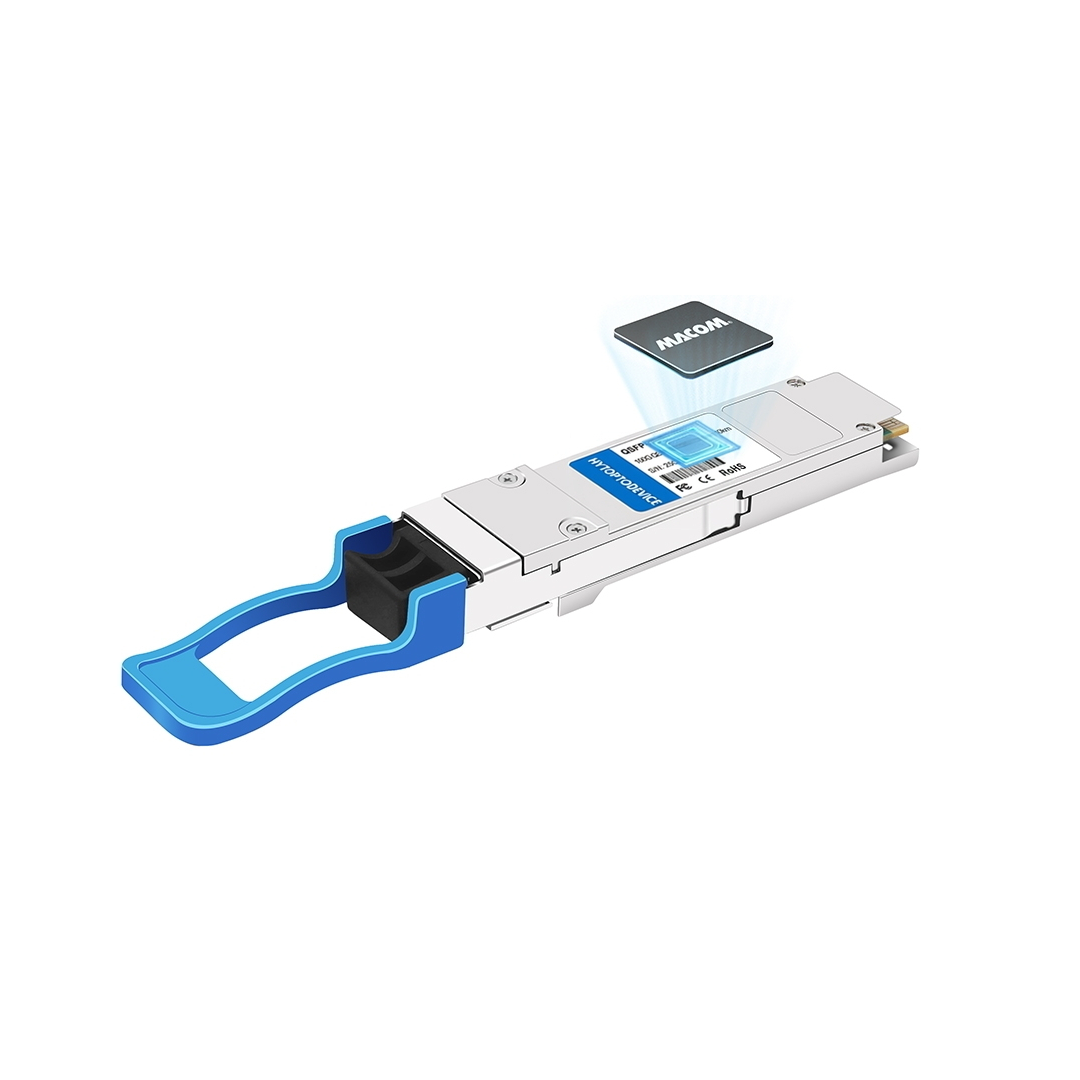

Cisco QSFP-100G-LR4-S Compatible 100G QSFP28 LR4 Optical Transceiver |100GBASE-LR4 1310nm(LAN WDM) 10km Module Bulk Wholesale | HYTOPTODEVICE

Buy bulk 100G QSFP28 LR4 Transceiver fully compatible with Cisco QSFP-100G-LR4-S. 1310nm LAN-WDM single-mode 10km reach with LC Duplex Connector, full DDM/DOM real-time monitoring, Support small sample testing, OEM private labeling, custom EEPROM coding for multi-brand network deployment. bulk wholesale for global import distributors and enterprise end users.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-100G-LR4-S   QSFP-100G-SR4-S
2 Arista Networks  QSFP-100G-LR4 QSFP28-100G-PSM4
3 Brocade  100G-QSFP28-LR4-LP-10KM QSFP28-100G-IR4
4 Dell  Q28-100G-LR4 QSFP28-100G-ER4L
5 H3C  QSFP-100G-LR4-WDM1300 QSFP28-100G-ZR4
6 HPE Aruba  JL310A QSFP28-100G-DR
7 Huawei  QSFP-100G-LR4  QSFP28-100G-FR
8 Juniper Networks  QSFP-100G-LR4-D QSFP28-100G-LR
9 NVIDIA(Mellanox)  MMA1L10-CR
Description

Cisco QSFP-100G-LR4-S Compatible 100GBASE-LR4 100G QSFP28  LR4 Transceiver | HYTOPTODEVICE
(10km, SMF, 1310nm, Duplex LC, DOM)

Product Overview

HYTOPTODEVICE 100G QSFP28 LR4 Transceiver is a fully IEEE 802.3ba and MSA compliant optical solution engineered to substitute original Cisco QSFP-100G-LR4-S modules. It delivers 103.125Gbps total bandwidth via four independent 25.78Gbps NRZ optical lanes with 1295nm–1310nm LAN-WDM wavelength range, adopting professional single-mode EML laser design and duplex LC UPC connector. Supporting stable error-free 10km long-reach transmission over standard single-mode fiber, this optic integrates high-precision clock data recovery and complete SFF-8636 DDM monitoring. Optimized for data center DCI interconnection, core switch backbone uplink and enterprise long-distance 100G network migration, bulk 100G QSFP28 LR4 Transceiver supports custom EEPROM rewriting to eliminate vendor lock-in alerts in multi-vendor network environments.

Key Technical Specifications

Cisco Compatible QSFP-100G-LR4-S  Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1295.56nm,1300.05nm,
1304.58nm,1309.14nm
Max Distance 10km
Connector Duplex LC Transmitter Type 4 x LAN WDM EML
Cable Type SMF Receiver Type PIN
Modulation (Electrical) 4x 25G-NRZ TX Power -6.2~+2.5dBm
Power Consumption < 3.5W Receiver Sensitivity < -11.5dBm
Protocols 100G Ethernet, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.

  • Distance Specification:Max 10km (OS2 SMF). Dirty end faces, excessive splicing and sharp bending reduce actual transmission distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.

  • Mode Setting: Configure 100G port speed via switch CLI. This LR4 module does not support breakout to 4×25G.
  • Operating Environment: 0°C–70°C commercial temperature range. Ensure cabinet ventilation to avoid optical power attenuation from overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Native Cisco Compatibility

All 100G QSFP28 LR4 Transceiver units complete real-device debugging and long-time traffic testing on official Cisco equipment, achieving perfect drop-in replacement for QSFP-100G-LR4-S with zero recognition alarms and complete DDM parameter display. Standard firmware coding ensures native compatibility with Cisco IOS/IOS-XE/NX-OS systems without manual configuration.
Compatible Cisco Hardware Models:
  • Cisco Nexus 9000 / 3000 Series 100G Fabric Switches
  • Cisco Catalyst 9000 Series Enterprise Core Switches
  • Cisco ASR 1000 Series High-Speed Routers
  • Cisco UCS Server High-Speed Network Uplink Ports
  • Cisco Data Center 100GBASE-LR4 Standard Port Platforms
2.Multi-Brand Cross Compatibility

Built strictly to industry MSA standards, HYTOPTODEVICE’s QSFP-100G-LR4-S  breaks vendor lock-ins, delivering seamless interoperability across diverse network environments.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • 100G QSFP28 LR4 Transceiver bulk replacement for aging Cisco QSFP-100G-LR4-S modules during core network upgrade
  • Long-reach data center DCI interconnection using 100G QSFP28 LR4 Transceiver for cross-building 100G high-speed links
  • Enterprise backbone network construction deploying 100G QSFP28 LR4 Transceiver for stable 10km single-mode transmission
  • Wide-area campus network iteration with low-error-rate 100G QSFP28 LR4 Transceiver for long-distance trunk links
  • System integrator customized EEPROM 100G QSFP28 LR4 Transceiver for multi-brand long-haul network projects
  • ISP edge room networking adopting standard-compliant 100G QSFP28 LR4 Transceiver for 100G long-distance bandwidth expansion


Connectivity Solutions(Applications)

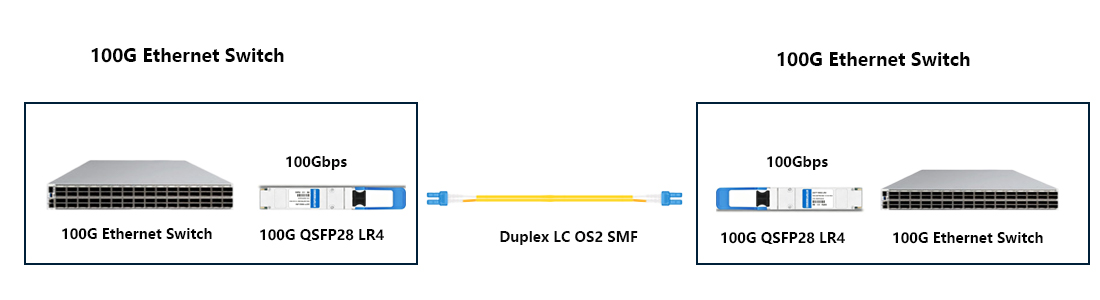

1. 100G Switch-to-Switch Interconnection

100G LR4 QSFP28 Transceiver single-mode wiring layout for Aruba AOS-CX leaf spine fabric switch-to-switch backbone interconnection

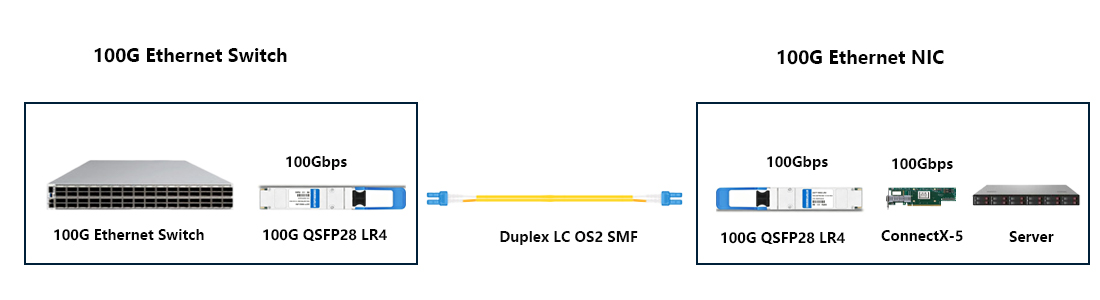

2.100G Switch-to-NIC Direct Connection

Low-BER 100G LR4 QSFP28 Transceiver long-distance topology for remote storage server NIC high-speed uplink transmission

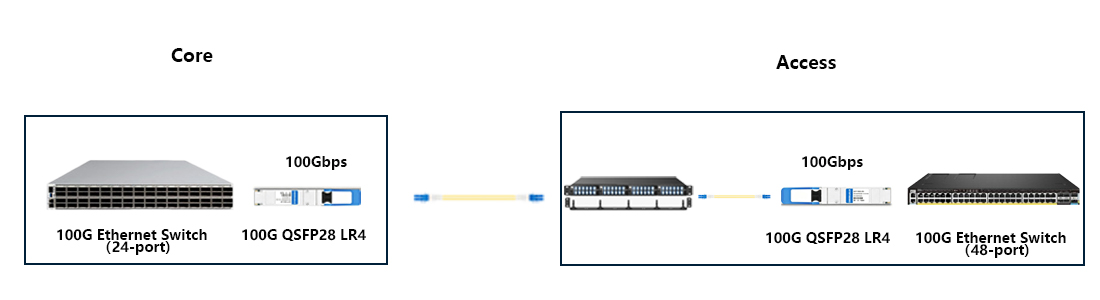

3.100G Long-haul Switch Link with
Structured Cabling

Calibrated LAN-WDM 100G LR4 QSFP28 Transceiver optical link design for enterprise structured single-mode cabling Aruba switch networking



The Core Features

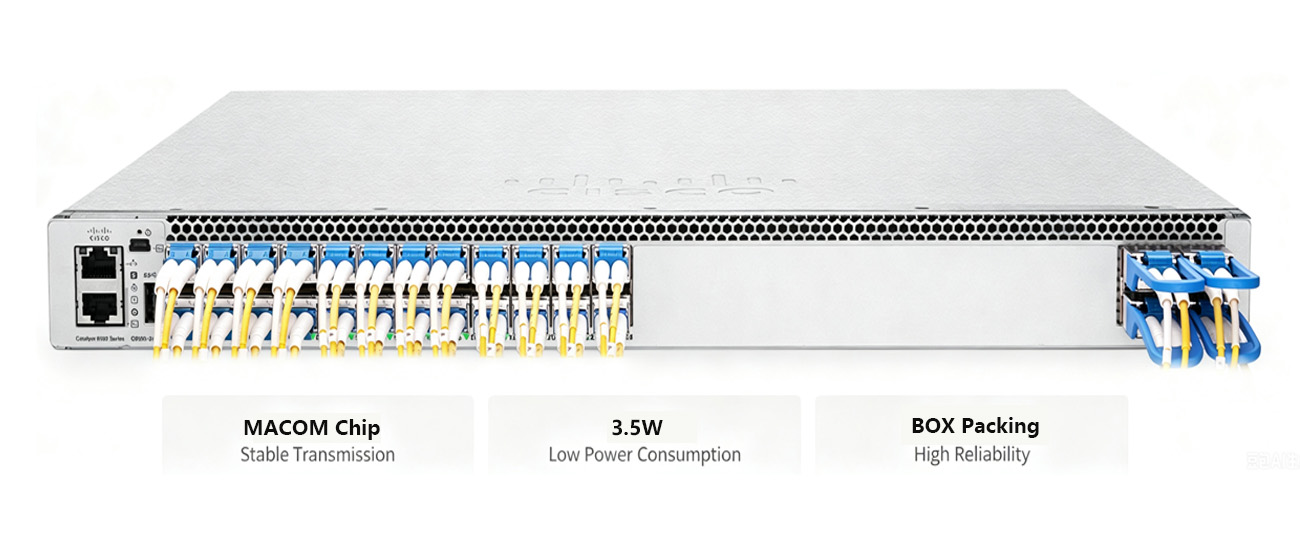

1.  Low Power & High Port Density

This HYTOPTODEVICE QSFP28 100G LR4 transceiver features low power consumption and high-speed, supporting high-density port deployment. It helps data centers fit more ports per rack without excessive heat buildup.


2. Host Validated for Reliable Interoperability

Each 100G transceiver plugs into target host switches directly without unsupported transceiver alarms and reduces project debugging time. Specific Compatibility Video available upon request.

25G SFP28 LR 10KM Transceiver module real machine compatibility test bench

3.Rigorous Full Testing & Stable Quality

Each unit passes optical calibration, high-low temperature burn-in and DDM inspection before shipment. HYTOPTODEVICE strict factory QC helps bulk buyers lower on-site failure risks. Curious how? Tour the Test Center.

25G SFP28 LR Transceiver factory standardized production and testing process


FAQ

Q1: Can custom-coded HYTOPTODEVICE 100G QSFP28 LR4 Transceiver run flawlessly on Cisco, Arista and Juniper enterprise switches?

A: Yes. Our 100G QSFP28 LR4 Transceiver supports professional custom EEPROM vendor coding, which effectively bypasses OEM unsupported transceiver CLI restrictions. Pre-configured firmware perfectly adapts to Cisco, Arista, Juniper and other mainstream brand switches to achieve seamless plug-and-play operation.

Q2: Will deploying HYTOPTODEVICE third-party 100G QSFP28 LR4 Transceiver invalidate original network switch hardware warranty?
A: No. In accordance with international equipment warranty regulations, switch manufacturers cannot void official hardware warranty merely for using qualified third-party optical transceivers. Our compliant 100G QSFP28 LR4 modules will not affect original device warranty validity.

Q3: What is the maximum stable transmission distance of factory-calibrated 100G QSFP28 LR4 Transceiver on standard single-mode fiber?
A: Our standard 100G QSFP28 LR4 Transceiver delivers stable error-free transmission up to 10km on conventional G.652/G.657 single-mode fiber. With ultra-clean, low-splice high-quality fiber links, it can achieve an extended transmission distance of 11–12km for special networking scenarios.

Q4: Is there a minimum fiber distance requirement to protect receiver ports of high-performance 100G QSFP28 LR4 Transceiver?
A: Standard PIN receiver versions of our 100G QSFP28 LR4 Transceiver have no minimum transmission distance limit. For high-sensitivity APD receiver models, a minimum 2km fiber link or matched optical attenuator is required to avoid receiver burnout from excessive optical power.

Q5: What is the peak power consumption of bulk 100G QSFP28 LR4 Transceiver and will it cause high-density switch overheating?
A: Our premium 100G QSFP28 LR4 Transceiver features optimized power management, with peak power consumption ranging from 3.5W to 4.5W. For fully loaded high-density 48-port switches, sufficient chassis airflow is required to avoid thermal stress and ensure long-term stable module operation.

Q6: What power dissipation class do commercial-grade HYTOPTODEVICE 100G QSFP28 LR4 Transceiver belong to? A: All our standard commercial 100G QSFP28 LR4 Transceiver strictly comply with Class 3 power standards with power consumption below 3.5W. Only customized industrial-grade modules adopt enhanced designs that may reach Class 4 power dissipation (up to 4.5W).

Q7: Is FEC function mandatory for 10km long-reach transmission of IEEE-compliant 100G QSFP28 LR4 Transceiver?
A: Per IEEE 802.3ba industry standards, FEC is not a mandatory requirement for standard 10km transmission of 100G QSFP28 LR4 Transceiver. However, most modern enterprise switches enable FEC by default to eliminate bit errors and achieve more stable long-haul link transmission.

Q8: Why do DDM Rx power monitoring data of compatible 100G QSFP28 LR4 Transceiver display N/A or inaccurate values on switches?
A: Inaccurate or missing DDM receive power data is mainly caused by incomplete factory calibration parameters in module firmware or protocol communication mismatch with switch NOS. Our HYTOPTODEVICE modules undergo full DDM calibration to ensure real-time, accurate monitoring data display.

Q9: What core advantages does 100G QSFP28 LR4 Transceiver have over 100G LR1 single-lambda optical modules for data center networking?
A: Our 100G QSFP28 LR4 Transceiver adopts mature 4×25G multi-lane transmission architecture, offering native compatibility with all legacy and mainstream 100G switches. In contrast, 100G LR1 modules use 100G PAM4 modulation, which requires additional gearbox support and cannot be identified by older switch devices.

Q10: What laser components are built into industrial-grade 100G QSFP28 LR4 Transceiver for 10km single-mode transmission?
A: All our standard 100G QSFP28 LR4 Transceiver are equipped with high-quality EML electro-absorption modulated lasers. EML lasers deliver superior signal integrity and anti-attenuation performance for 10km long-distance transmission, far exceeding the stability of low-cost DML lasers that are unsuitable for 100G long-haul scenarios.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
