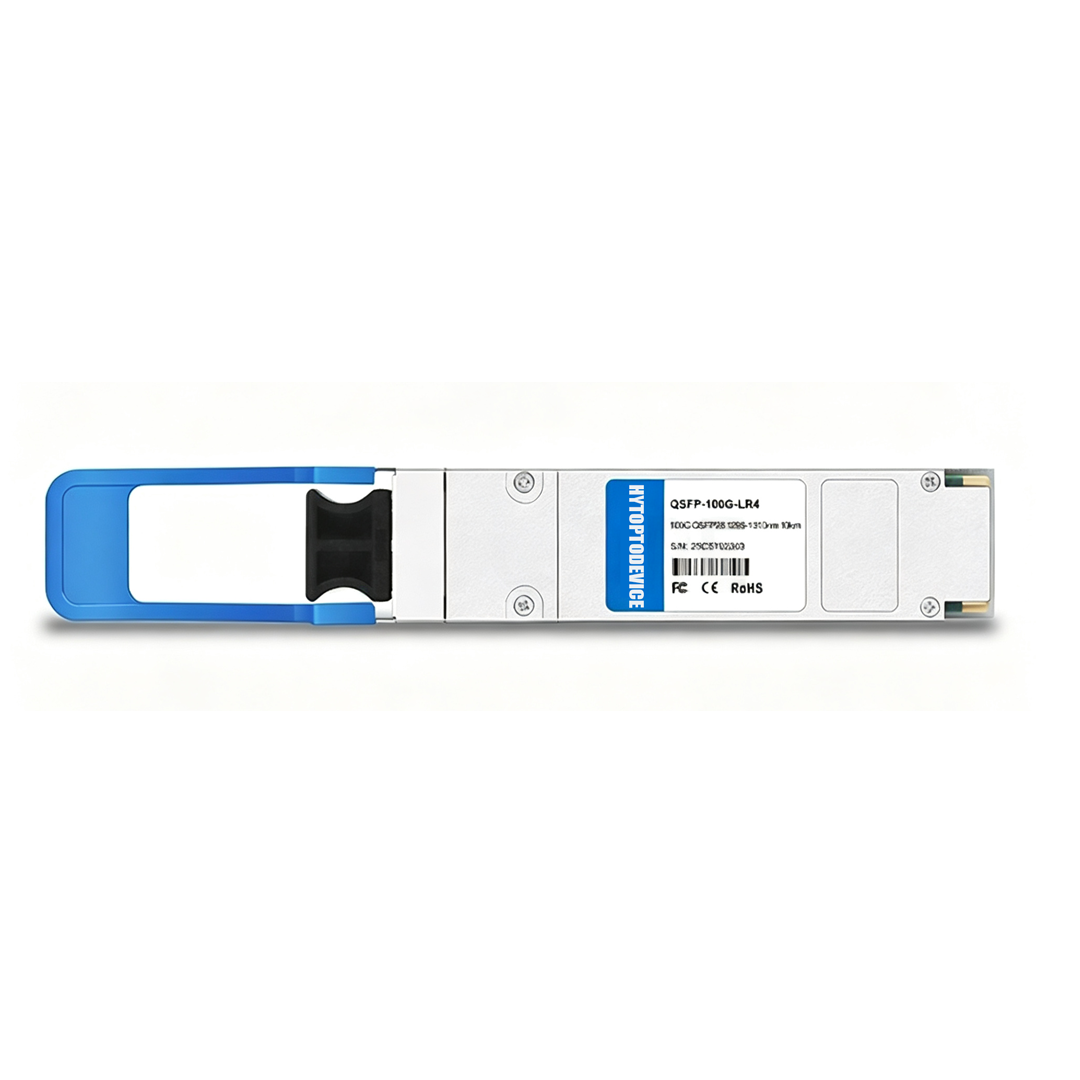

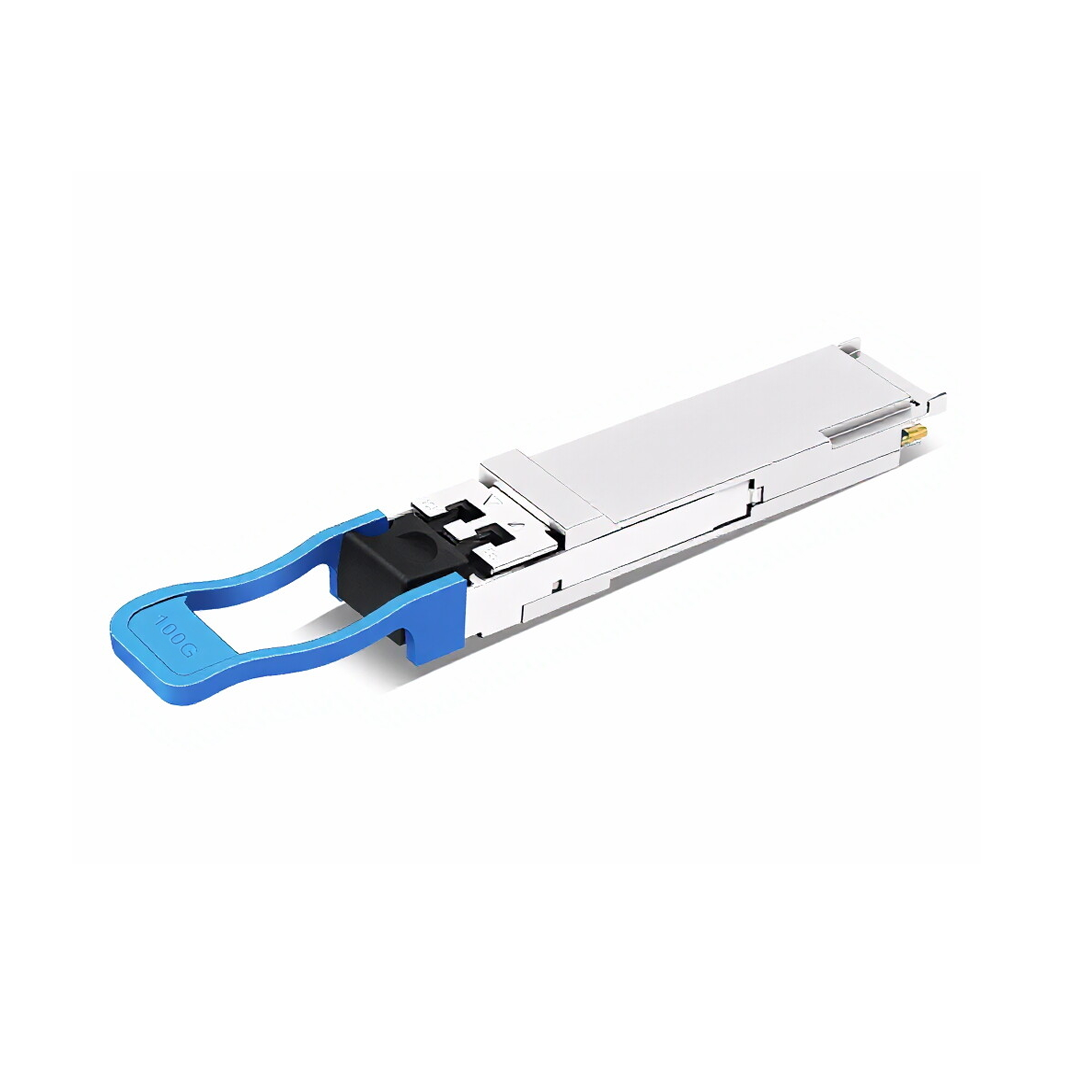

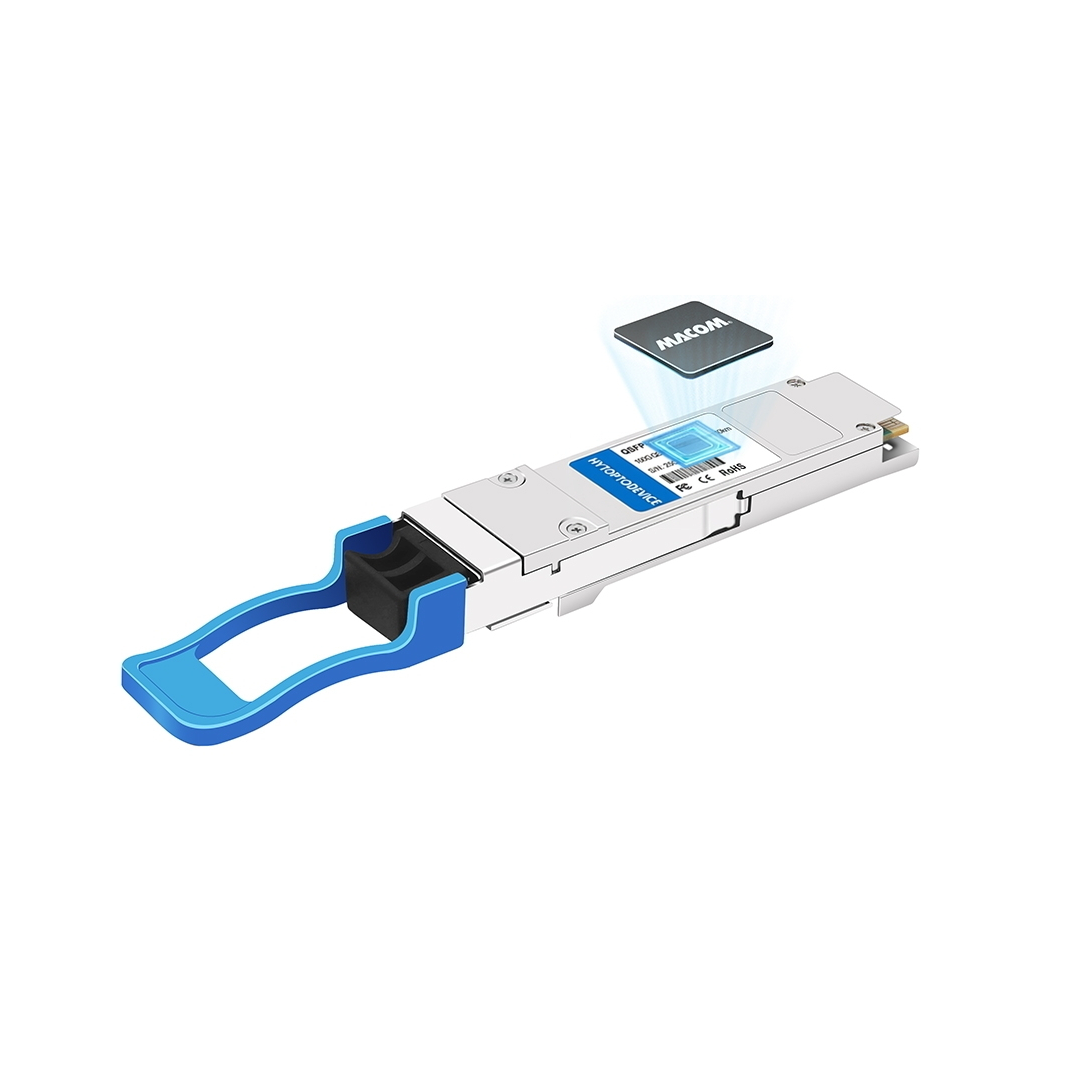

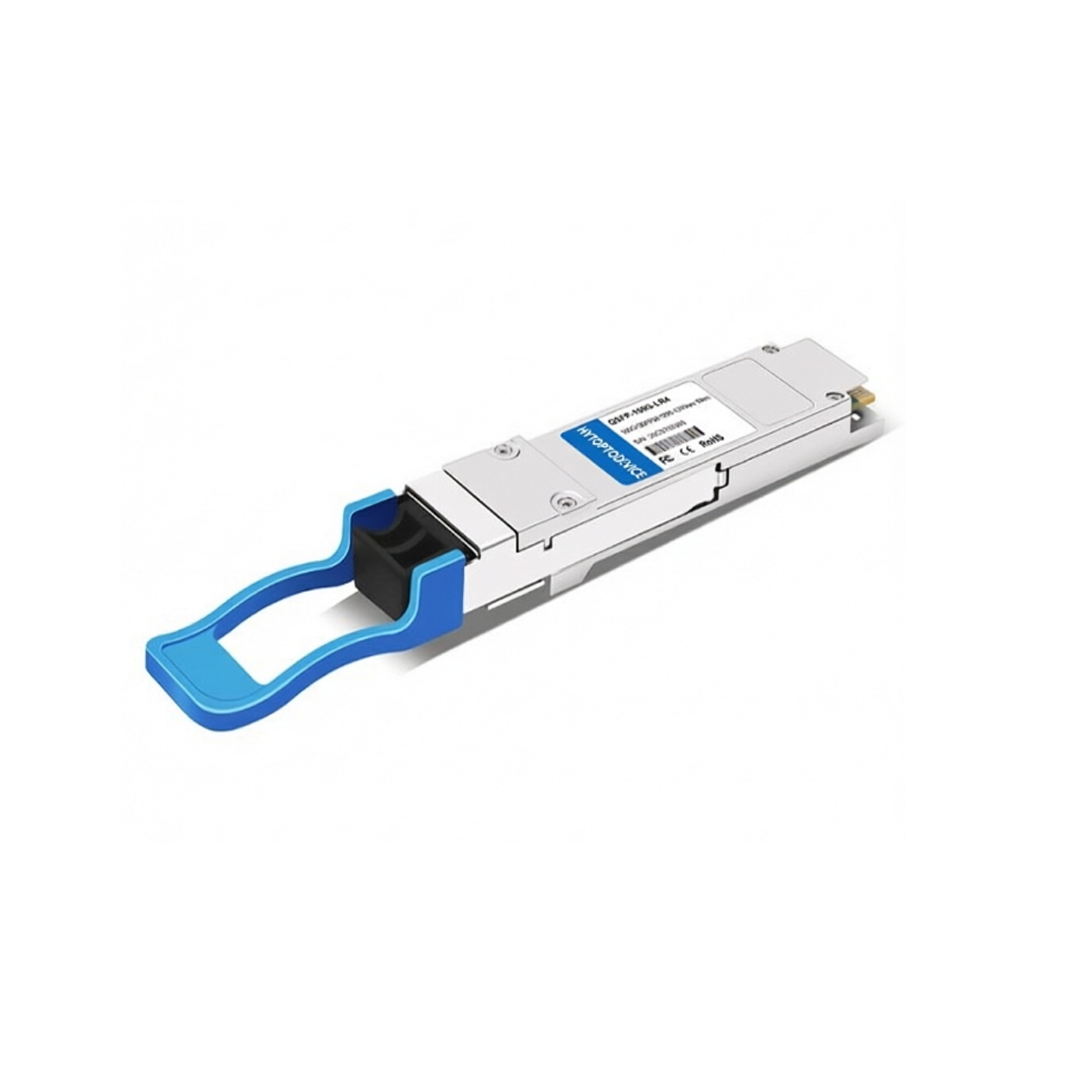

HYTOPTODEVICE Dell Q28-100G-LR4 Compatible 100G QSFP28 LR4 10km Transceiver – 1310nm LAN-WDM Single-Mode Duplex LC Optic, Bulk Wholesale Available
Product Overview
The Dell Compatible Q28-100G-LR4 is a premium 100G
QSFP28 LR4 10KM transceiver, designed for high-speed 100Gbps connectivity up to 10km. Optimized for high-density data centers, this
100G module utilizes Single-Mode Fiber (SMF) and LAN-WDM technology(wavelength:
1295~1310nm) to ensure superior signal integrity. Compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4, it features low power consumption,low latency and operates within a commercial temperature range (0°C to 70°C) for maximum reliability. Fully hot-swappable and DOM-supported, the low-BER single-mode 100G QSFP28 LR4 10km Transceiver provides seamless, cost-effective compatibility with Dell OS10 and OS9 environment, making it the ideal choice for long-reach enterprise networking.
Key Technical Specifications
| Dell Compatible |
Q28-100G-LR4 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
| Wavelength |
1295.56nm,1300.05nm, 1304.58nm,1309.14nm |
Max Distance |
10km |

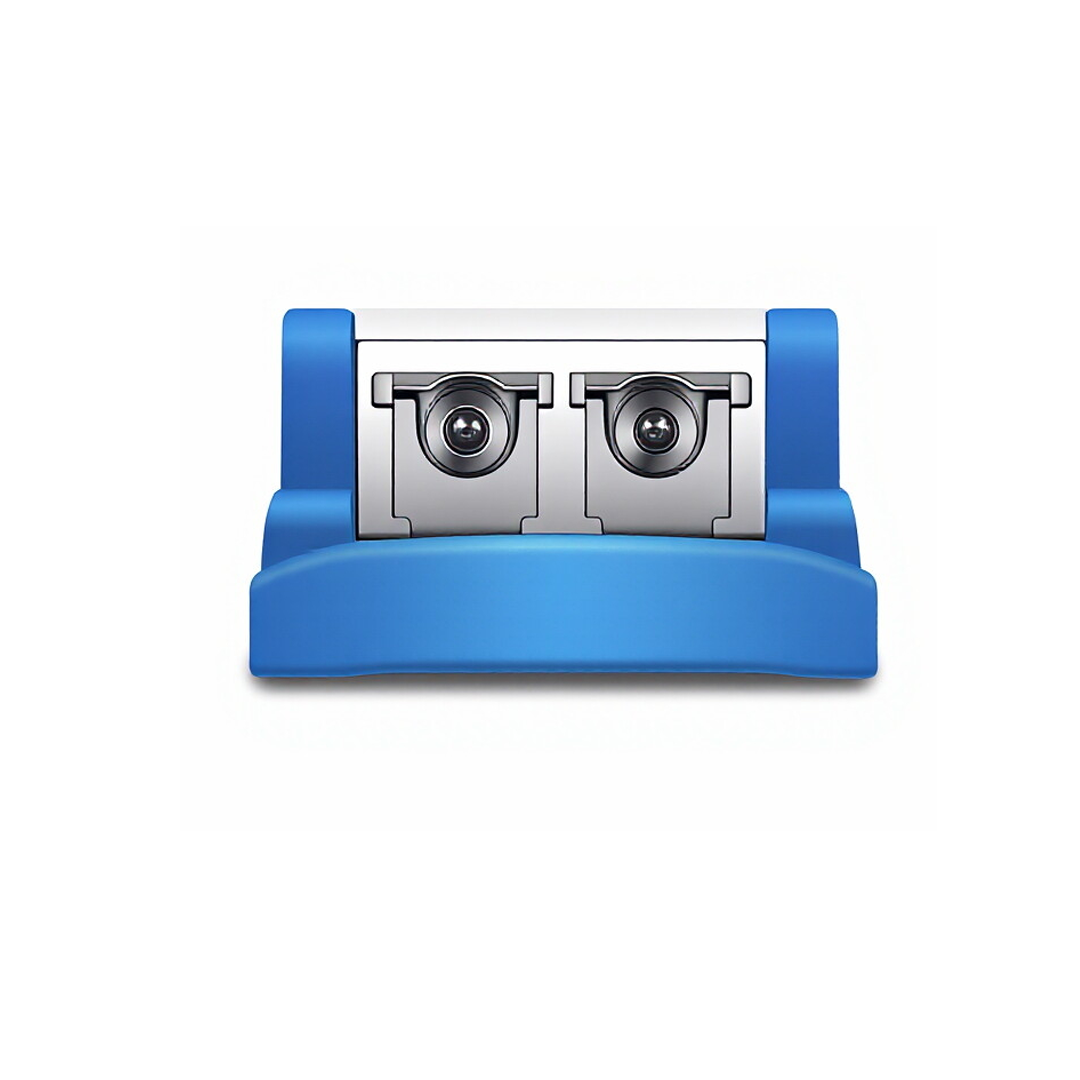

| Connector |
Duplex LC |
Transmitter Type |
4 x LAN WDM EML |
| Cable Type |
SMF |
Receiver Type |
PIN |
| Modulation (Electrical) |
4x 25G-NRZ |
TX Power |
-6.2~+2.5dBm |
| Power Consumption |
< 3.5W |
Receiver Sensitivity |
< -11.5dBm |
| Protocols |
100G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.
-
Distance Specification:Max 10km (OS2 SMF). Dirty end faces, excessive splicing and sharp bending reduce actual transmission distance.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.
- Mode Setting: Configure 100G port speed via switch CLI. This LR4 module does not support breakout to 4×25G.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Dell Compatibility
HYTOPTODEVICE compatible 100G QSFP28 LR4 10km Transceiver pass long-term traffic aging testing on official Dell PowerSwitch hardware platforms, realizing seamless hardware replacement without port identification failure. All DDM monitoring data can be normally displayed on Dell OS management pages. Complete test logs and hardware verification videos can be provided for project acceptance inspection.
Compatible Dell Hardware Series:
- Dell PowerSwitch S4100 / S5200 / Z9664F ON Series Leaf-Spine Switches
- Dell PowerSwitch N3200 / E3200 ON Series Enterprise Core Switches
- Dell 407-BCDH Gen3 100G Single-Mode Uplink Expansion Ports
- Dell Storage & DCI Cross-Room QSFP28 Fabric Slots
2.Multi-Brand Cross Compatibility
Built strictly to industry MSA standards, HYTOPTODEVICE’s Q28-100G-LR4 breaks vendor lock-ins, delivering seamless interoperability across diverse network environments.
-
Open-Brand Devices (Plug-and-Play): 100% natively compatible with open-architecture brands like Ciena, Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel, and more.
-
Locked-Brand Devices (Advanced Coding): Powered by our proprietary EEPROM writing technology, our modules successfully bypass vendor encryptions to ensure 100% compatibility with Cisco, H3C, Juniper, Dell, Intel, and the latest updated Arista firmware versions.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
- 100G QSFP28 LR4 10km Transceiver bulk replacement for aging Dell Q28-100G-LR4 modules during fabric bandwidth expansion
- Cross-data-center DCI interconnection using 100G QSFP28 LR4 10km Transceiver to build low-loss 10km long-haul single-mode fiber links
- Enterprise core backbone network construction deploying 100G QSFP28 LR4 10km Transceiver for stable inter-machine-room trunk transmission
- Large campus network iteration with low-jitter 100G QSFP28 LR4 10km Transceiver for remote server room 100G uplink access
- System integrator custom coded 100G QSFP28 LR4 10km Transceiver for multi-brand long-distance data center integration projects
- ISP edge rack networking adopting standard-compliant 100G QSFP28 LR4 10km Transceiver for 100G wide-area bandwidth expansion
Connectivity Solutions(Applications)
1. 100G Switch-to-Switch Interconnection

2.100G Switch-to-NIC Direct Connection

3.100G Long-haul Switch Link with Structured Cabling
The Core Features
1. Low Power & High Port Density
This HYTOPTODEVICE QSFP28 100G LR4 transceiver features low power consumption and high-speed, supporting high-density port deployment. It helps data centers fit more ports per rack without excessive heat buildup.

2. Host Validated for Reliable Interoperability
Each 100G transceiver plugs into target host switches directly without unsupported transceiver alarms and reduces project debugging time. Specific Compatibility Video available upon request.

3.Rigorous Full Testing & Stable Quality
Each unit passes optical calibration, high-low temperature burn-in and DDM inspection before shipment. HYTOPTODEVICE strict factory QC helps bulk buyers lower on-site failure risks. Curious how? Tour the
Test Center.

FAQ
Q1: Do IEEE 802.3ba compliant 100G QSFP28 LR4 10km Transceiver support cross-brand interconnection with different vendor-coded modules?
A: Yes. Custom host EEPROM coding only controls module and local switch authentication matching. Our HYTOPTODEVICE 100G QSFP28 LR4 10km Transceiver fully complies with IEEE 802.3ba universal industry standards, ensuring complete line-side optical interoperability between Cisco-coded, Juniper-coded and other branded LR4 modules on both ends of fiber links.
Q2: How to adapt 100G QSFP28 LR4 10km Transceiver to new switch brands via field re-programming?
A: Our compatible 100G QSFP28 LR4 10km Transceiver supports on-site vendor code modification for device replacement and network iteration. Field re-coding requires professional dedicated optical programming equipment such as Flexbox coding tools, which we can provide to support free vendor parameter rewriting for user project upgrades.
Q3: Are optical attenuators necessary for short-distance 1km and 2km single-mode fiber links using 100G QSFP28 LR4 10km Transceiver?
A: It depends on the module’s maximum receiving power threshold. When deploying our 100G QSFP28 LR4 10km Transceiver on ultra-short 1–2km fiber spans, excessive transmit optical power will overload the receiver. Users need to install 3dB or 5dB fixed optical attenuators to adjust power and protect internal optical chips.
Q4: How do fiber aging and multi-panel wiring loss affect the maximum transmission range of industrial 100G QSFP28 LR4 10km Transceiver?
A: Long-term fiber aging and repeated docking of multiple patch panels will generate 0.5dB to 0.75dB additional insertion loss per node. This continuously consumes the optical power budget of our 100G QSFP28 LR4 10km Transceiver, directly reducing the module’s effective 10km long-distance transmission capability.
Q5: Why do EML laser based 100G QSFP28 LR4 10km Transceiver run warmer than short-range optical modules?
A: Different from low-power short-reach SR4 and CWDM4 modules, our 100G QSFP28 LR4 10km Transceiver adopts high-performance EML lasers and built-in MUX/DEMUX wavelength division components. These professional optical structures require higher driving power to stabilize 10km long-haul transmission, resulting in slightly higher normal operating temperature.
Q6: Is FEC error correction mandatory for achieving standard 10km transmission of enterprise-grade 100G QSFP28 LR4 10km Transceiver?
A: According to official IEEE 802.3ba protocol specifications, Forward Error Correction (FEC) is not a mandatory function for the rated 10km transmission of our 100G QSFP28 LR4 10km Transceiver. However, most modern data center switches enable FEC by default to eliminate tiny bit errors and enhance long-link transmission stability.
Q7: What are the factory-calibrated Tx and Rx power specification ranges for commercial 100G QSFP28 LR4 10km Transceiver?
A: All HYTOPTODEVICE 100G QSFP28 LR4 10km Transceiver are strictly calibrated before delivery. The standard transmit (Tx) power ranges from -4.3 dBm to +4.5 dBm, and the receiving (Rx) power maintains a stable operating range of -10.6 dBm to +4.5 dBm, meeting mainstream data center deployment standards.
Q8: Is physical lane breakout available for standard duplex LC 100G QSFP28 LR4 10km Transceiver links?
A: No. Our 100G QSFP28 LR4 10km Transceiver integrates independent wavelength multiplexing and demultiplexing components internally. It concentrates four 25G optical lanes into a single duplex LC physical port, making hardware-level breakout into four independent 25G LR links impossible.
Q9: What professional cleaning tools are suitable for daily maintenance of LC ports on 100G QSFP28 LR4 10km Transceiver?
A: To avoid signal attenuation or link failure caused by port contamination, we recommend using a standard 1.25mm one-click fiber cleaning pen or lint-free professional cassette cleaner for daily dust removal and maintenance of the LC duplex ports of our 100G QSFP28 LR4 10km Transceiver.
Q10: What strict pre-shipment testing processes ensure zero DOA failure rate of bulk 100G QSFP28 LR4 10km Transceiver orders?
A: To guarantee stable batch quality, all HYTOPTODEVICE 100G QSFP28 LR4 10km Transceiver undergo rigorous pre-shipment inspections, including environmental temperature and humidity cycle testing, full packet loss detection, and multi-brand switch compatibility verification, effectively eliminating Dead-On-Arrival defective units.
