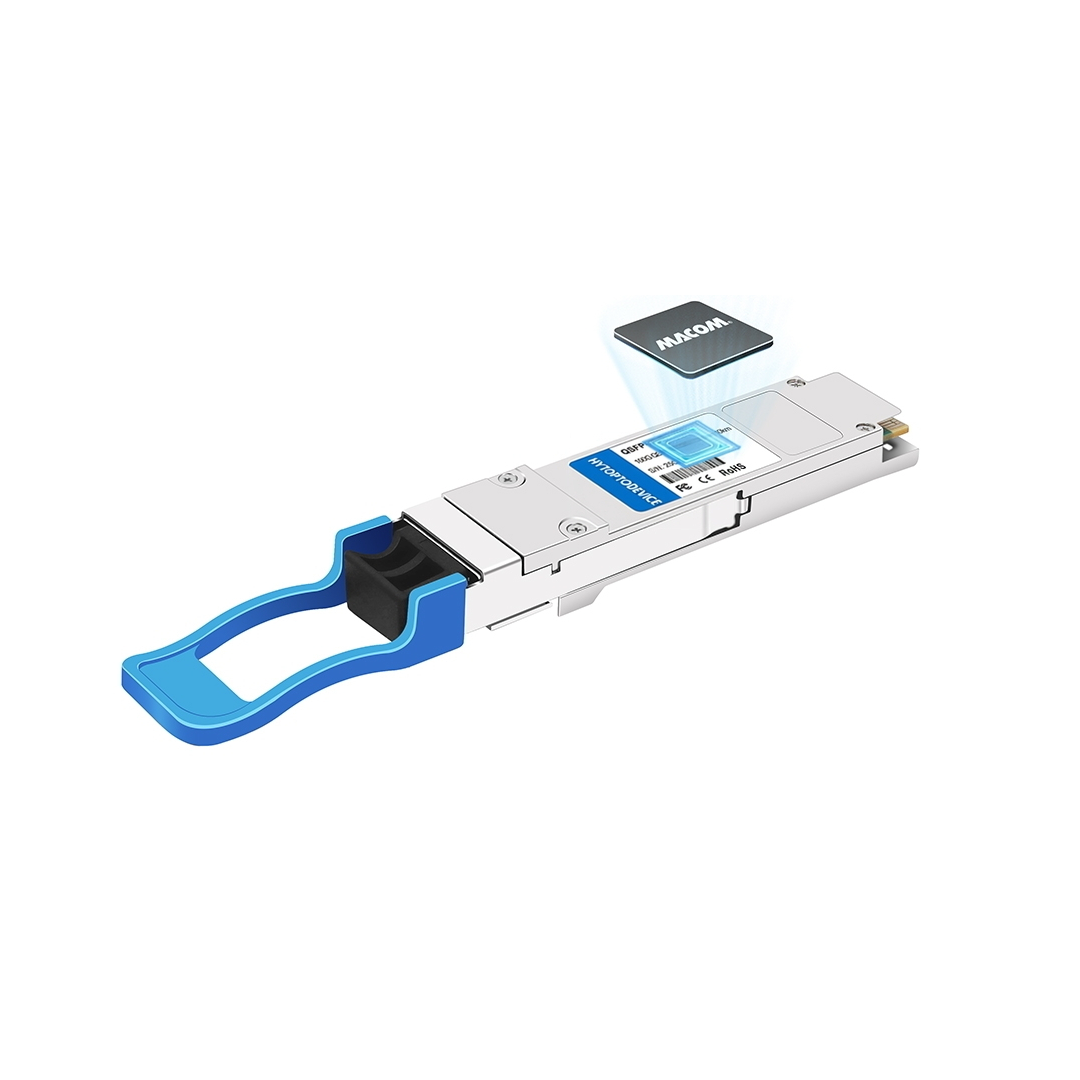

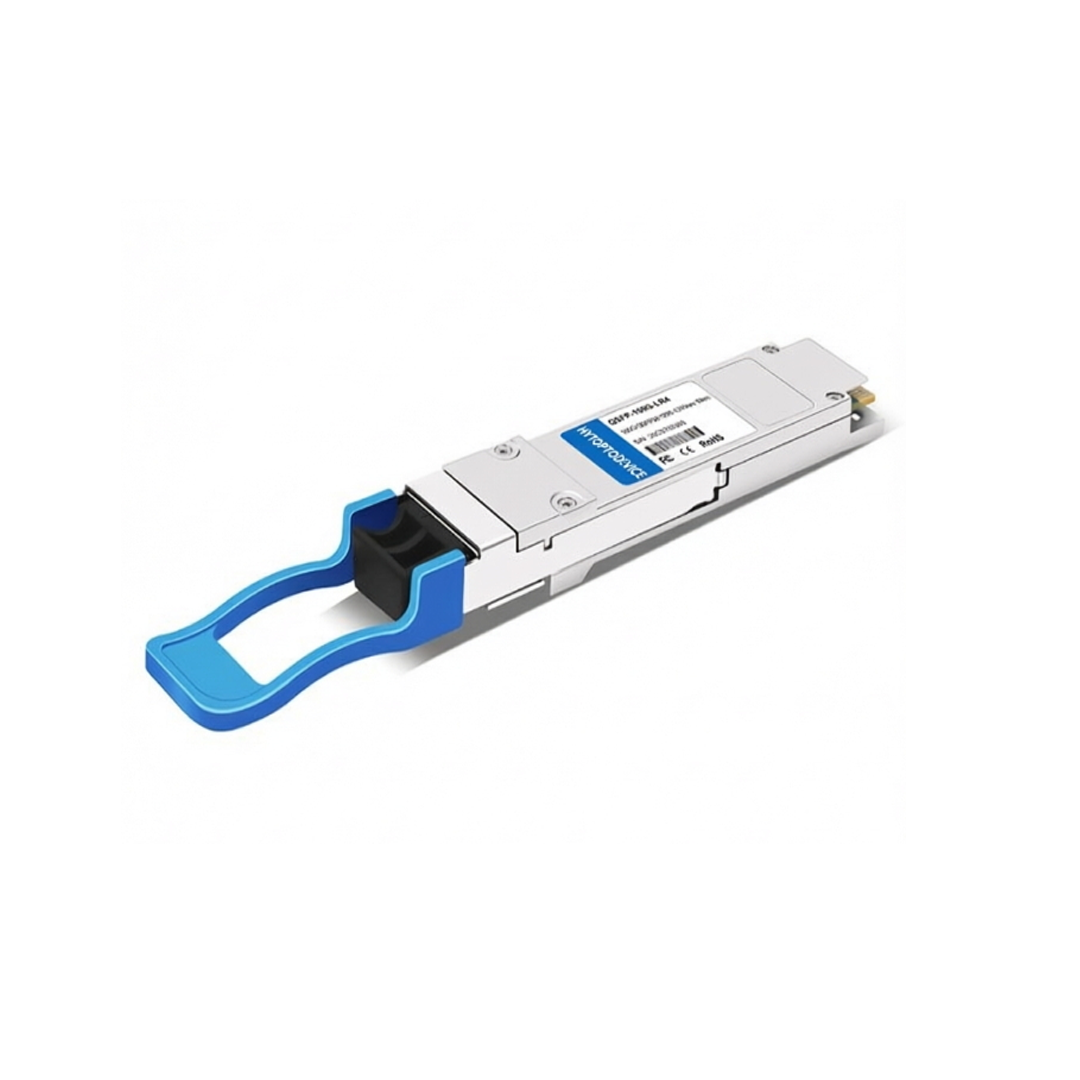

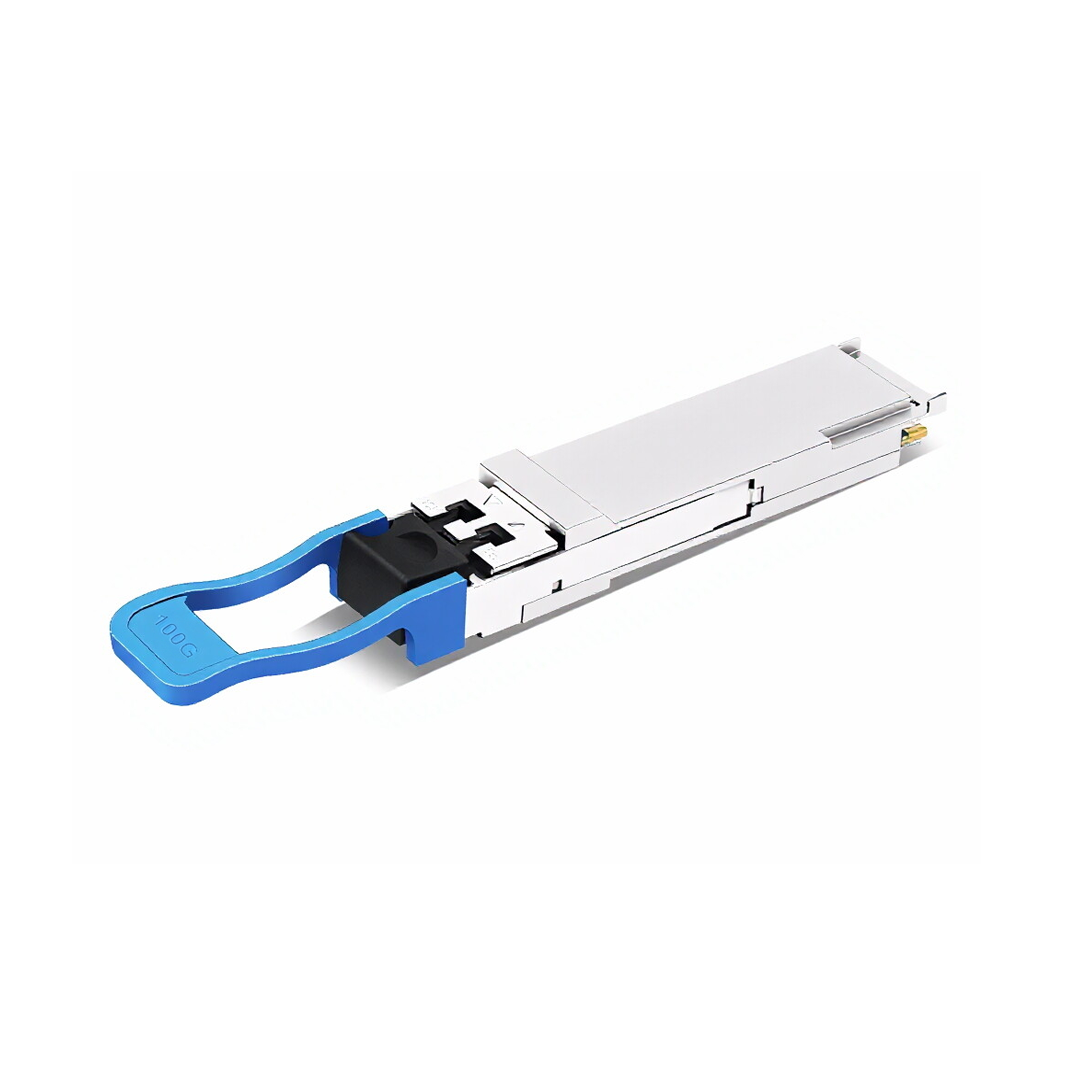

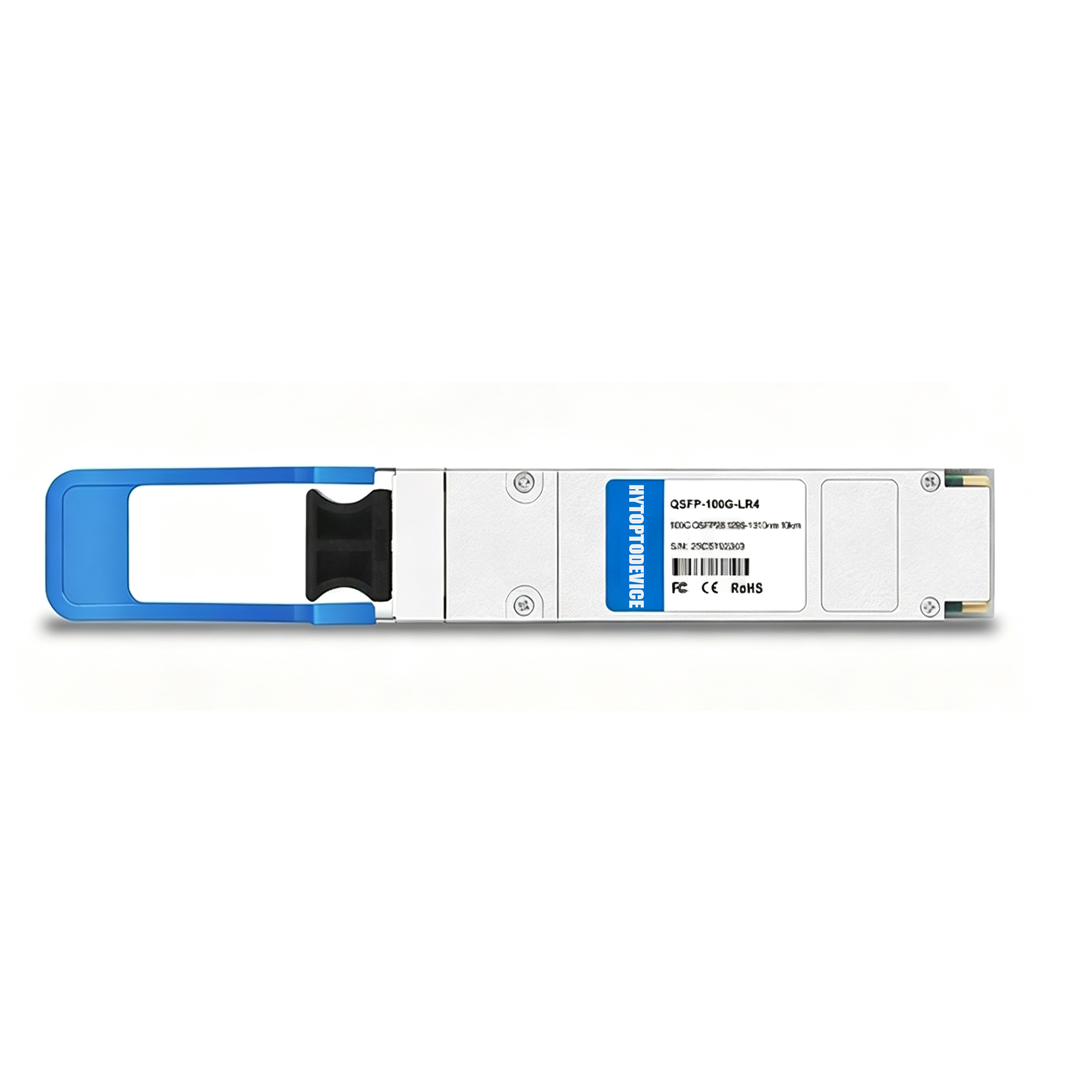

HYTOPTODEVICE H3C QSFP-100G-LR4-WDM1300 Compatible 100G QSFP28 LR4 10km Transceiver, Bulk Wholesale Available
Product Overview
The H3C Compatible QSFP-100G-LR4-WDM1300 is a premium 100G
QSFP28 LR4 10KM transceiver, designed for high-speed 100Gbps connectivity up to 10km. Optimized for high-density data centers, it utilizes Single-Mode Fiber (SMF) and LAN-WDM technology(wavelength:
1295~1310nm) to ensure superior signal integrity. Compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4, the EML laser equipped 100G QSFP28 LR4 10km Transceiver features low power consumption,low latency and operates within a commercial temperature range (0°C to 70°C) for maximum reliability. Fully hot-swappable and DOM-supported, it provides seamless, cost-effective compatibility with H3C switches, making it the ideal choice for long-reach enterprise networking.
Key Technical Specifications
| H3C Compatible |
QSFP-100G-LR4-WDM1300 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
| Wavelength |
1295.56nm,1300.05nm, 1304.58nm,1309.14nm |
Max Distance |
10km |
| Connector |

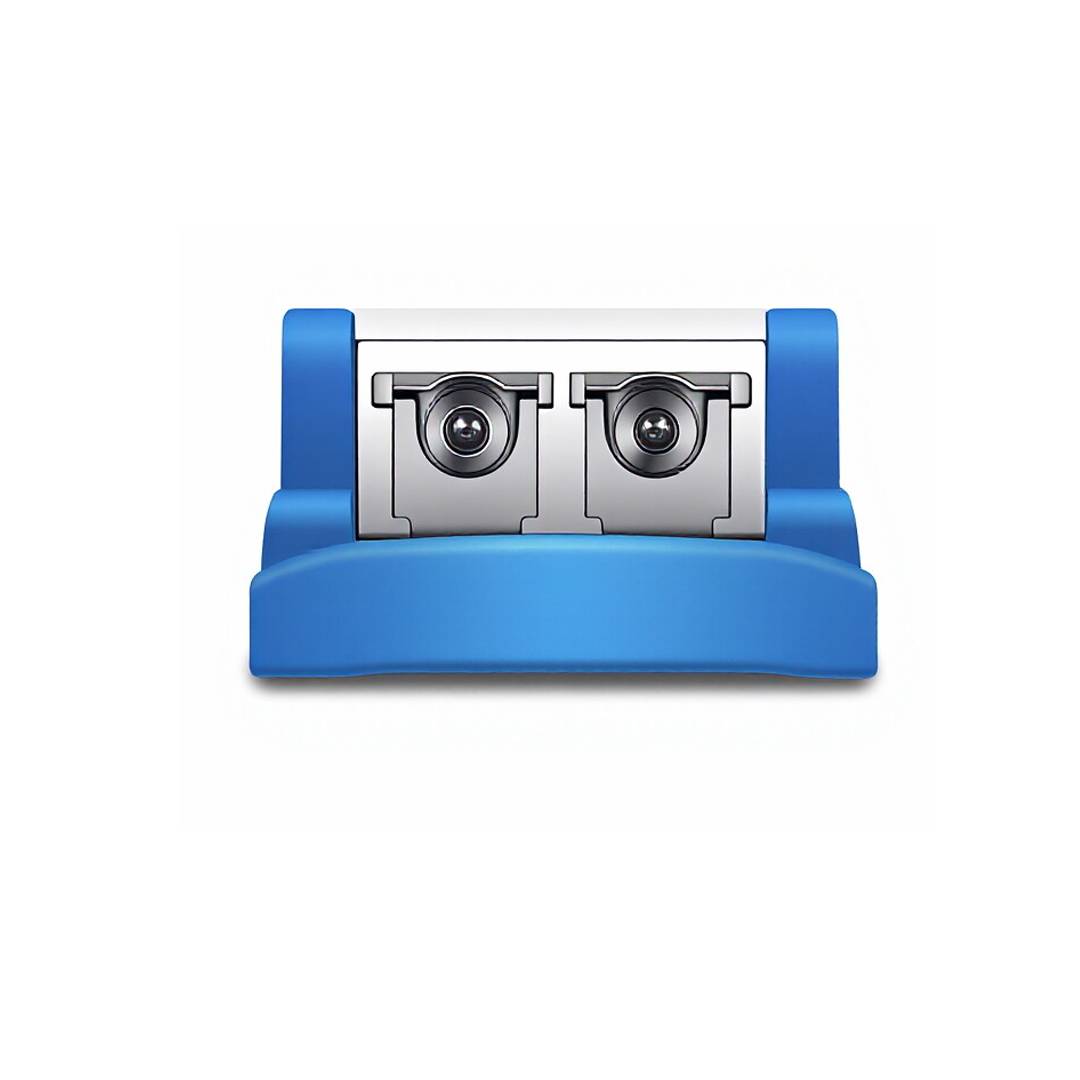

Duplex LC |
Transmitter Type |
4 x LAN WDM EML |
| Cable Type |
SMF |
Receiver Type |
PIN |
| Modulation (Electrical) |
4x 25G-NRZ |
TX Power |
-6.2~+2.5dBm |
| Power Consumption |
< 3.5W |
Receiver Sensitivity |
< -11.5dBm |
| Protocols |
100G Ethernet, MSA Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.
-
Distance Specification:Max 10km (OS2 SMF). Dirty end faces, excessive splicing and sharp bending reduce actual transmission distance.
-
Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.
-
Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.
- Mode Setting: Configure 100G port speed via switch CLI. This LR4 module does not support breakout to 4×25G.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Native H3C Compatibility
All 100G QSFP28 LR4 10km Transceiver pass long-term traffic aging testing on official H3C hardware platforms, realizing seamless hardware replacement without port identification failure. All DDM/DOM monitoring data can be normally displayed on H3C Comware OS management pages. Complete test logs and hardware verification videos can be provided for project acceptance inspection.
Compatible H3C Hardware Series:
- H3C S10500X-G Series Core Data Center Switches
- H3C S9827 / S9857 Leaf-Spine Fabric Switches
- H3C LSWM18CQMSEC QSFP28 Expansion Interface Cards
- H3C Storage & Cross-Room DCI 100G Single-Mode Uplink Ports
2.Multi-Brand Cross Compatibility
Built strictly to industry MSA standards, HYTOPTODEVICE’s QSFP-100G-LR4-WDM1300 breaks vendor lock-ins, delivering seamless interoperability across diverse network environments.
-
Open-Brand Devices (Plug-and-Play): 100% natively compatible with open-architecture brands like Ciena, Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel, and more.
-
Locked-Brand Devices (Advanced Coding): Powered by our proprietary EEPROM writing technology, our modules successfully bypass vendor encryptions to ensure 100% compatibility with Cisco, H3C, Juniper, Dell, Intel, and the latest updated Arista firmware versions.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
- 100G QSFP28 LR4 10km Transceiver bulk replacement for aging H3C QSFP-100G-LR4-WDM1300 modules during fabric bandwidth expansion
- Cross-data-center DCI interconnection using 100G QSFP28 LR4 10km Transceiver to build low-loss 10km long-haul single-mode fiber links
- Enterprise core backbone network construction deploying 100G QSFP28 LR4 10km Transceiver for stable inter-machine-room trunk transmission
- Large campus network iteration with low-jitter WDM1300 100G QSFP28 LR4 10km Transceiver for remote server room 100G uplink access
- System integrator custom coded 100G QSFP28 LR4 10km Transceiver for multi-brand long-distance data center integration projects
- ISP edge rack networking adopting standard-compliant 100G QSFP28 LR4 10km Transceiver for 100G wide-area bandwidth expansion
Connectivity Solutions(Applications)

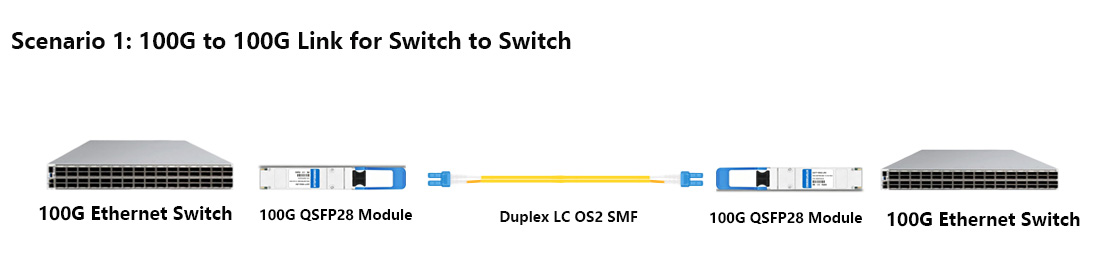

1. 100G Switch-to-Switch Interconnection

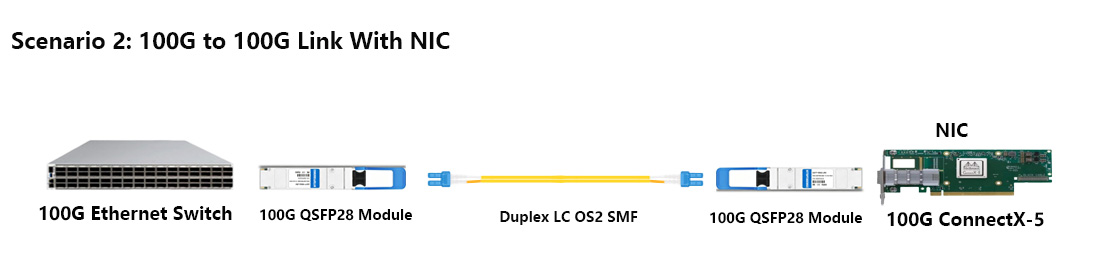

2.100G Switch-to-NIC Direct Connection

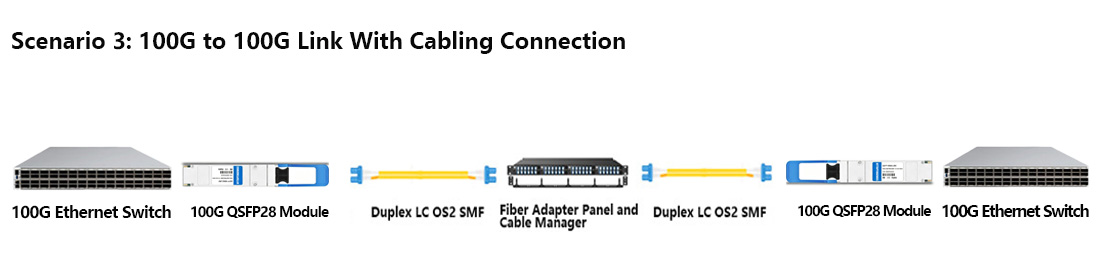

3.100G Long-haul Switch Link with Structured Cabling
The Core Features

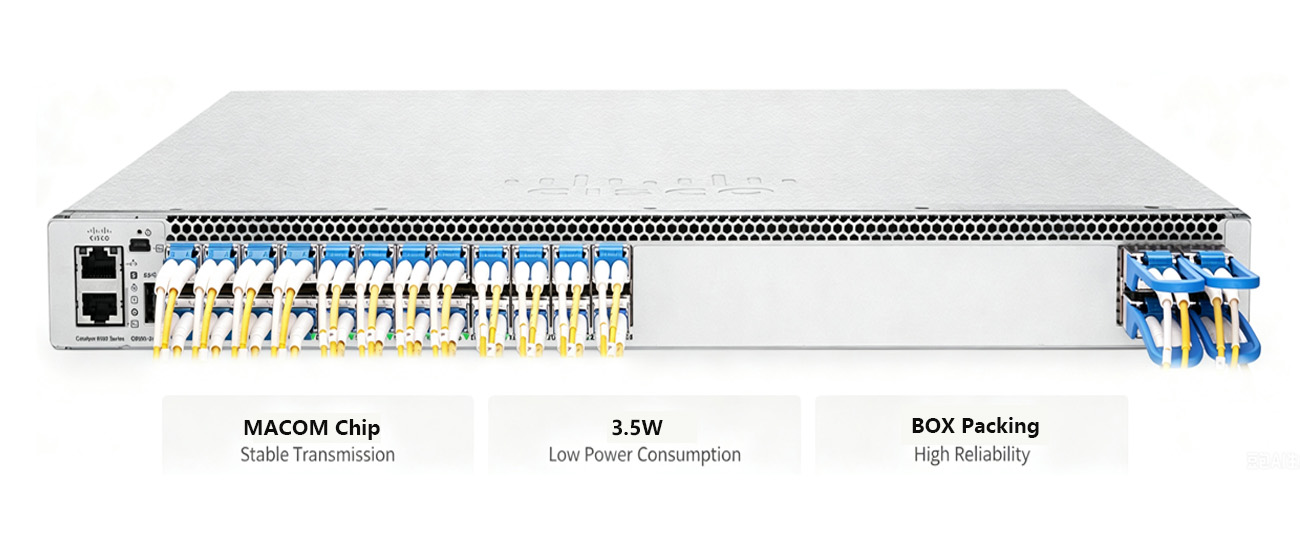

1. Low Power & High Port Density
This HYTOPTODEVICE QSFP28 100G LR4 transceiver features low power consumption and high-speed, supporting high-density port deployment. It helps data centers fit more ports per rack without excessive heat buildup.

2. Host Validated for Reliable Interoperability
Each 100G transceiver plugs into target host switches directly without unsupported transceiver alarms and reduces project debugging time. Specific Compatibility Video available upon request.

3.Rigorous Full Testing & Stable Quality
Each unit passes optical calibration, high-low temperature burn-in and DDM inspection before shipment. HYTOPTODEVICE strict factory QC helps bulk buyers lower on-site failure risks. Curious how? Tour the
Test Center.

FAQ
Q1: How to clear unknown transceiver CLI identification alarms on H3C-compatible 100G QSFP28 LR4 10km Transceiver?
A: Two feasible solutions are available. You can activate the device’s service unsupported-transceiver configuration command, or send the module back to our factory for customized EEPROM firmware re-flashing to permanently eliminate recognition failure prompts on Comware OS.
Q2: Is optical attenuation required for ultra-short 1km and 2km single-mode links deployed with factory-calibrated 100G QSFP28 LR4 10km Transceiver?
A: Judge according to the module’s maximum receiving power threshold. If the transmit optical power exceeds the rated Pin max value within short fiber spans, you have to install 3dB or 5dB fixed optical attenuators to prevent receiver chip damage.
Q3: Why do EML laser integrated 100G QSFP28 LR4 10km Transceiver generate higher operating temperature than short-reach optical transceivers?
A: Unlike low-power SR4 and CWDM4 short-distance modules, our 100G QSFP28 LR4 10km Transceiver adopts EML lasers and built-in MUX/DEMUX wavelength multiplexing components. These core optical structures consume extra power to stabilize 10km long-haul signal transmission, leading to higher surface temperature.
Q4: What extra latency will be introduced after activating RS-FEC function on long-reach 100G QSFP28 LR4 10km Transceiver fiber links?
A: Turning on RS-FEC will add about 100–250 nanoseconds transmission latency. This delay significantly affects high-frequency trading HFT scenarios, while it brings negligible performance impact on regular enterprise data center network traffic.
Q5: Is seamless optical interconnection achievable between standard LAN-WDM 100G QSFP28 LR4 10km Transceiver and 100G 4WDM-10 single-mode modules?
A: Fully compatible. The 100G 4WDM-10 specification is specially developed to realize complete optical interoperability with IEEE-standard 100G QSFP28 LR4 10km Transceiver on all 10km single-mode fiber link deployments.
Q6: What is the maximum hot-plug mating cycle lifespan of gold finger contacts on commercial 100G QSFP28 LR4 10km Transceiver?
A: Standard QSFP28 connector gold fingers of our 100G QSFP28 LR4 10km Transceiver pass industrial durability testing, rated for at least 100 plug/unplug cycles without electrical contact degradation or structural wear.
Q7: What internal laser chips are equipped inside industrial-grade long-distance 100G QSFP28 LR4 10km Transceiver for 10km fiber transmission?
A: All standard HYTOPTODEVICE 100G QSFP28 LR4 10km Transceiver adopt premium EML electro-absorption modulated lasers to guarantee stable long-span signal integrity. Low-cost DML lasers cannot meet the optical performance standards of 10km 100G long-haul links.
Q8: Why do generic aftermarket 100G QSFP28 LR4 10km Transceiver have extended delivery cycles amid global semiconductor supply shortages?
A: LR4 optical modules rely on scarce custom InP indium phosphide laser chips with tight foundry production capacity. Massive chip backlogs prolong lead times for ordinary suppliers, while HYTOPTODEVICE maintains stable in-house laser component stock to shorten order delivery time.
Q9: Does hardware Rx_LOS signal transmission function work normally on WDM1300 100G QSFP28 LR4 10km Transceiver when switch port transmit power cuts off?
A: Yes. Once the switch Tx power shuts down or the fiber link disconnects, our 100G QSFP28 LR4 10km Transceiver will immediately output Rx_LOS hardware pin signals to notify the H3C host switch of optical link loss status.
Q10: Does MSA-compliant 100G QSFP28 LR4 10km Transceiver support remote software-controlled transmit laser disable via switch CLI commands?
A: Fully supported. Our 100G QSFP28 LR4 10km Transceiver strictly follows QSFP28 MSA industry standards, allowing network administrators to remotely turn off internal transmitter lasers through switch command lines for offline fiber link debugging.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
