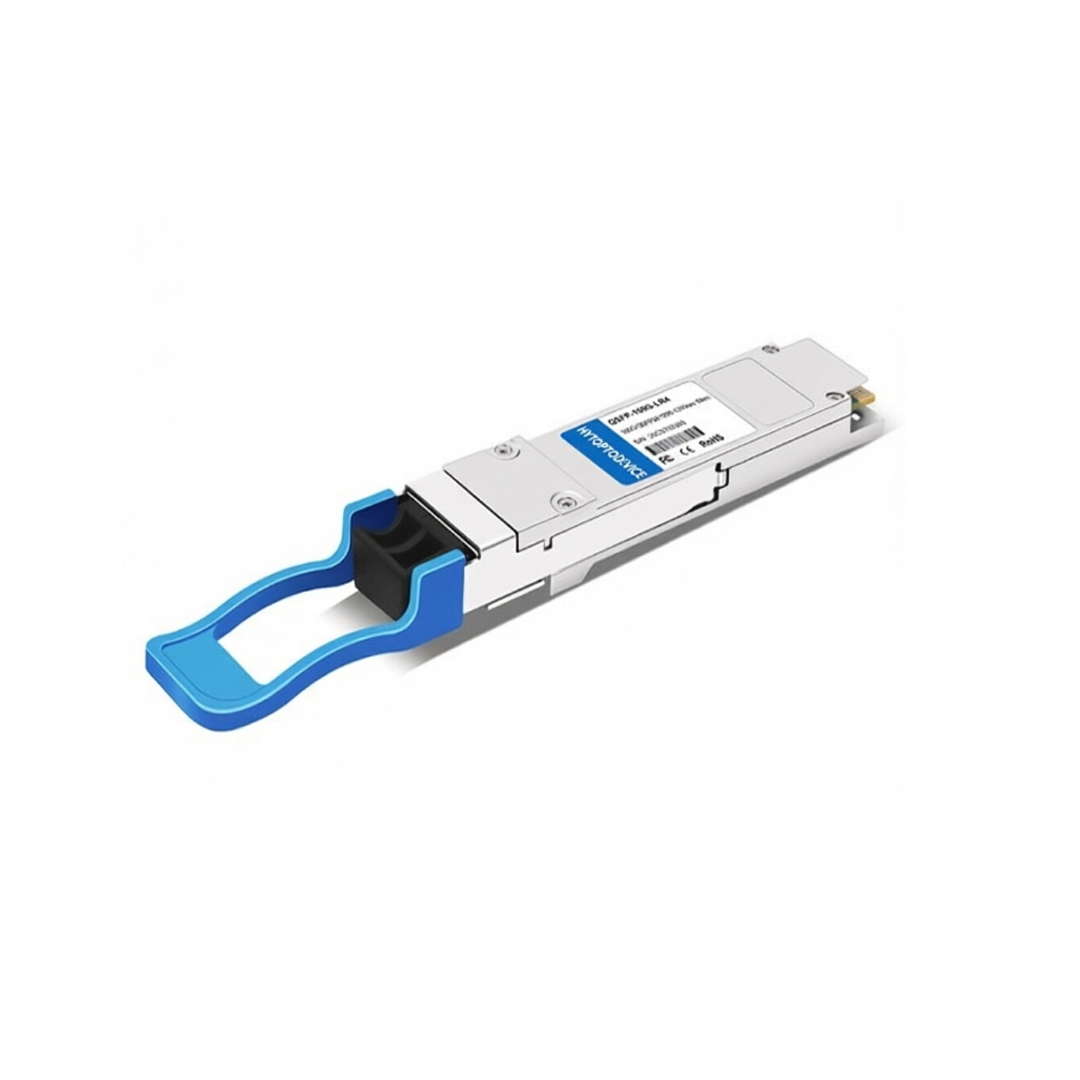

• HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE
  • HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE

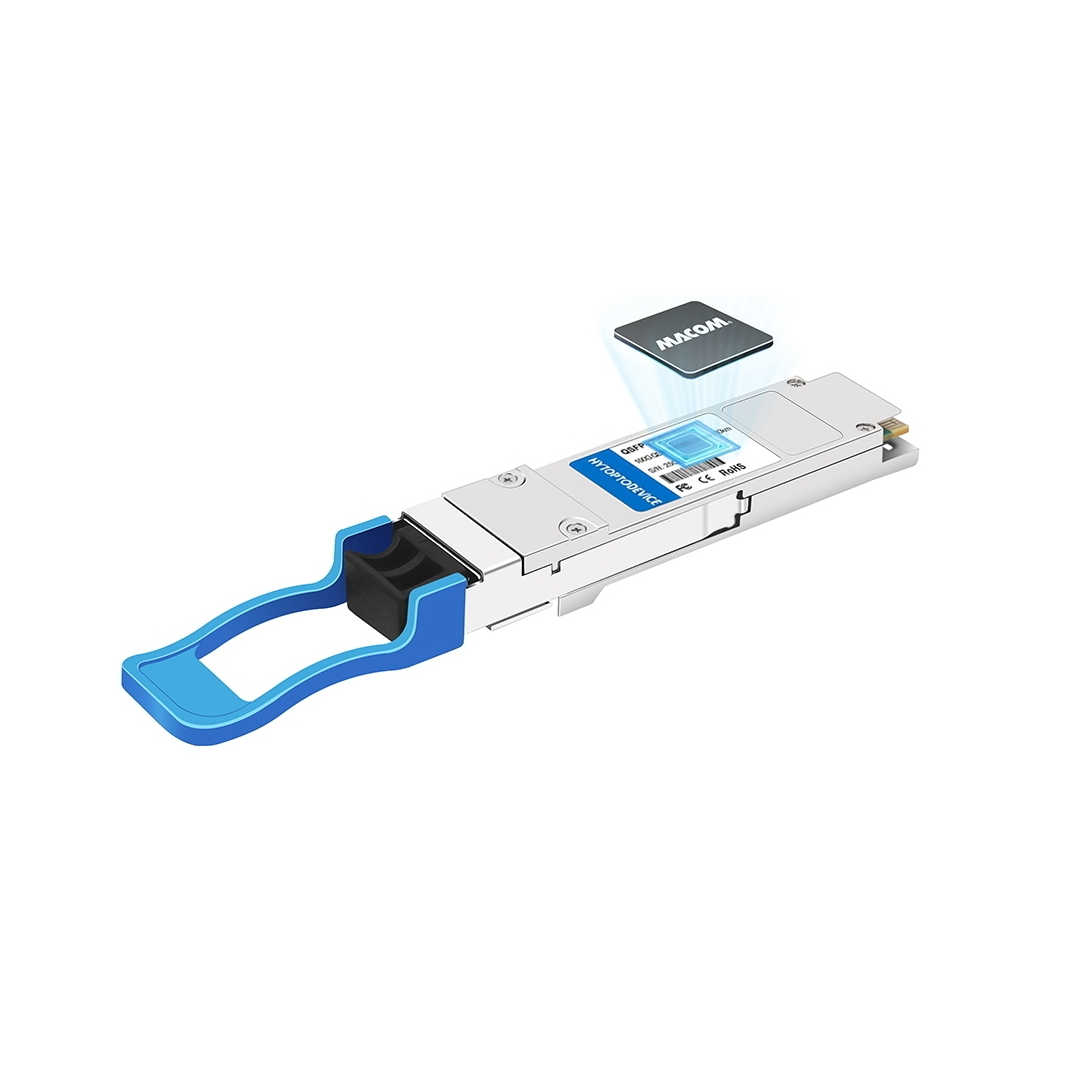

  • Side profile MSA-certified 100G LR4 QSFP28 Transceiver for large-scale Huawei CloudEngine data center bulk upgrade projects
  • HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE

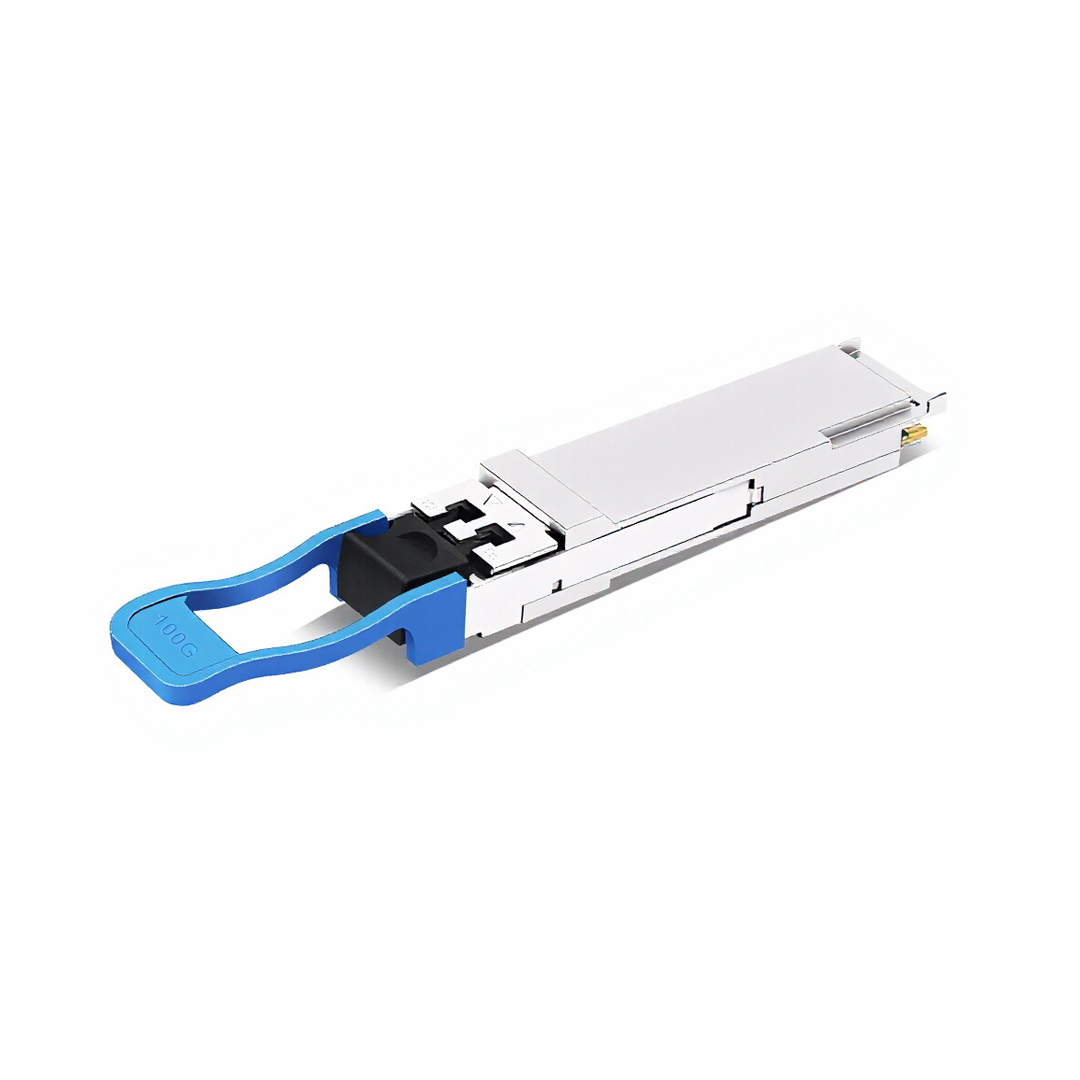

  • EML laser integrated low-loss LAN-WDM 100G LR4 QSFP28 Transceiver for multi-vendor cross-data-center DCI interconnection
  • HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE
  • HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE
  • Side profile MSA-certified 100G LR4 QSFP28 Transceiver for large-scale Huawei CloudEngine data center bulk upgrade projects
  • HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE
  • EML laser integrated low-loss LAN-WDM 100G LR4 QSFP28 Transceiver for multi-vendor cross-data-center DCI interconnection

HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver | 100GBASE-LR4 1310nm(LAN WDM) 10km Bulk Wholesale | HYTOPTODEVICE

Buy bulk 100G LR4 QSFP28 Transceiver fully compatible with HUAWEI QSFP-100G-LR4. 1295–1309nm LAN-WDM single-mode duplex LC, full DDM/DOM diagnostic monitoring, custom vendor firmware for Huawei CloudEngine & S-series VRP switches, stable 10km SMF transmission. Support small sample testing, OEM private labeling, bulk wholesale for global import distributors and enterprise end users.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-100G-LR4-S   QSFP-100G-SR4-S
2 Arista Networks  QSFP-100G-LR4 QSFP28-100G-PSM4
3 Brocade  100G-QSFP28-LR4-LP-10KM QSFP28-100G-IR4
4 Dell  Q28-100G-LR4 QSFP28-100G-ER4L
5 H3C  QSFP-100G-LR4-WDM1300 QSFP28-100G-ZR4
6 HPE Aruba  JL310A QSFP28-100G-DR
7 Huawei  QSFP-100G-LR4  QSFP28-100G-FR
8 Juniper Networks  QSFP-100G-LR4-D QSFP28-100G-LR
9 NVIDIA(Mellanox)  MMA1L10-CR
Description

HYTOPTODEVICE HUAWEI QSFP-100G-LR4 Compatible 100G LR4 QSFP28 Transceiver – 1300nm LAN-WDM Single-Mode Duplex LC Optic, Drop-In Hardware Replacement & Bulk Wholesale Available


Product Overview

 HYTOPTODEVICE 100G LR4 QSFP28 Transceiver is an IEEE 802.3ba and QSFP28 MSA standardized single-mode optical module, engineered to match original HUAWEI QSFP-100G-LR4 hardware specs. It outputs total bandwidth of 103.125Gbps via four independent 25.78Gbps NRZ optical lanes within standard LAN-WDM wavelength grid, adopting long-distance EML laser chip and duplex LC flat contact connector. It maintains stable low-bit-error 10km signal transmission on standard single-mode fiber, equipped with independent CDR clock recovery chip and full real-time DDM optical power/temperature monitoring function. Optimized for Huawei CloudEngine leaf-spine fabric interconnection, cross-data-center DCI long-haul links and enterprise core backbone 100G bandwidth upgrade. All bulk batches of 100G LR4 QSFP28 Transceiver support custom EEPROM rewriting to remove vendor lock-in warning prompts in mixed-brand network environments, fully matching Huawei QSFP-100G-LR4 electrical & optical factory calibration parameters.

Key Technical Specifications

Huawei Compatible  QSFP-100G-LR4 Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1295.56nm,1300.05nm,
1304.58nm,1309.14nm
Max Distance 10km
Connector Duplex LC Transmitter Type 4 x LAN WDM EML
Cable Type SMF Receiver Type PIN
Modulation (Electrical) 4x 25G-NRZ TX Power -6.2~+2.5dBm
Power Consumption < 3.5W Receiver Sensitivity < -11.5dBm
Protocols 100G Ethernet, MSA Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the
Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Works only with OS2 single-mode fiber. Multimode fiber is not compatible with this 1310nm CWDM4 module.

  • Distance Specification:Max 10km (OS2 SMF). Dirty end faces, excessive splicing and sharp bending reduce actual transmission distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot-swap supported. Follow ESD anti-static procedures and keep LC connectors clean for stable links.

  • Mode Setting: Configure 100G port speed via switch CLI. This LR4 module does not support breakout to 4×25G.
  • Operating Environment: 0°C–70°C commercial temperature range. Ensure cabinet ventilation to avoid optical power attenuation from overheating.

For detailed operation instructions, please refer to the User Guide.

Full Compatibility List & Supported Network Hardware

1.Native Huawei Compatibility

All 100G LR4 QSFP28 Transceiver pass long-term traffic aging testing on official Huawei VRP hardware platforms, realizing seamless hardware replacement without port identification failure. All DDM/DOM monitoring data can be normally displayed on Huawei switch web & CLI management pages. Complete test logs and hardware verification videos can be provided for project acceptance inspection.
Compatible HUAWEI Hardware Series:
  • CloudEngine Data Center Switches: CE12800, CE8800, CE7800, CE6800, CE16800 Series
  • Enterprise S-Series Switches: S12700, S7700, S6720, S6730-H, S5732-H V2
  • NetEngine Core Routers: NE8000, NE40E, NE20E Series
  • Huawei QSFP28 expansion uplink ports matching OEM PN 02311KNU / 02315HNW

2.Multi-Brand Cross Compatibility

Built strictly to industry MSA standards, HYTOPTODEVICE’s QSFP-100G-LR4 breaks vendor lock-ins, delivering seamless interoperability across diverse network environments.

  • Open-Brand Devices (Plug-and-Play): 100% natively compatible with open-architecture brands like Ciena, Fortinet, Ubiquiti, MikroTik, D-Link, Zyxel, and more.

  • Locked-Brand Devices (Advanced Coding): Powered by our proprietary EEPROM writing technology, our modules successfully bypass vendor encryptions to ensure 100% compatibility with Cisco, H3C, Juniper, Dell, Intel, and the latest updated Arista firmware versions.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support


Primary Application Scenarios

  • 100G LR4 QSFP28 Transceiver bulk replacement for aging HUAWEI QSFP-100G-LR4 modules during CloudEngine fabric bandwidth expansion
  • Cross-data-center DCI interconnection using 100G LR4 QSFP28 Transceiver to build low-loss 10km long-haul single-mode fiber links
  • Enterprise core backbone network construction deploying 100G LR4 QSFP28 Transceiver for stable inter-machine-room trunk transmission
  • Large campus network iteration with low-jitter LAN-WDM 100G LR4 QSFP28 Transceiver for remote server room 100G uplink access
  • System integrator custom coded 100G LR4 QSFP28 Transceiver for multi-brand long-distance Huawei data center integration projects
  • ISP edge MAN rack networking adopting standard-compliant 100G LR4 QSFP28 Transceiver for 100G wide-area bandwidth expansion

Connectivity Solutions(Applications)

1. 100G Switch-to-Switch Interconnection

100G LR4 QSFP28 Transceiver single-mode wiring layout for Aruba AOS-CX leaf spine fabric switch-to-switch backbone interconnection

2.100G Switch-to-NIC Direct Connection

Low-BER 100G LR4 QSFP28 Transceiver long-distance topology for remote storage server NIC high-speed uplink transmission

3.100G Long-haul Switch Link with
Structured Cabling

Calibrated LAN-WDM 100G LR4 QSFP28 Transceiver optical link design for enterprise structured single-mode cabling Aruba switch networking



The Core Features

1.  Low Power & High Port Density

This HYTOPTODEVICE QSFP28 100G LR4 transceiver features low power consumption and high-speed, supporting high-density port deployment. It helps data centers fit more ports per rack without excessive heat buildup.


2. Host Validated for Reliable Interoperability

Each 100G transceiver plugs into target host switches directly without unsupported transceiver alarms and reduces project debugging time. Specific Compatibility Video available upon request.

25G SFP28 LR 10KM Transceiver module real machine compatibility test bench

3.Rigorous Full Testing & Stable Quality

Each unit passes optical calibration, high-low temperature burn-in and DDM inspection before shipment. HYTOPTODEVICE strict factory QC helps bulk buyers lower on-site failure risks. Curious how? Tour the Test Center.

25G SFP28 LR Transceiver factory standardized production and testing process


FAQ

Q1: Can pre-coded 100G LR4 QSFP28 Transceiver achieve plug-and-play operation on Cisco, Arista and Juniper enterprise switches?

A: Ordinary third-party modules trigger unsupported transceiver CLI blocks, while all HYTOPTODEVICE 100G LR4 QSFP28 Transceiver support customized vendor-specific EEPROM coding, perfectly bypassing major brand switch restrictions for seamless cross-platform compatibility.

Q2: How to reconfigure vendor parameters of universal 100G LR4 QSFP28 Transceiver for new switch brand replacement in on-site network upgrades?
A: Our 100G LR4 QSFP28 Transceiver supports field re-programming adaptation for different switch vendors. Users only need professional coding equipment such as Flexbox tools provided by HYTOPTODEVICE to complete on-site EEPROM re-coding quickly.

Q3: What is the standard optical link budget range of factory-calibrated 100G LR4 QSFP28 Transceiver for 10km single-mode links?
A: Equipped with high-precision imported optical components, HYTOPTODEVICE 100G LR4 QSFP28 Transceiver features a standard optical power budget of 6.3dB to 8.5dB, ensuring sufficient margin for stable 10km long-distance transmission links.

Q4: How do cumulative patch panel loss and long-term fiber aging reduce the effective transmission mileage of industrial 100G LR4 QSFP28 Transceiver?
A: Each patch panel produces 0.5dB–0.75dB insertion loss, which continuously consumes the module’s optical power budget. HYTOPTODEVICE 100G LR4 QSFP28 Transceiver reserves extra power margin to offset fiber aging and wiring loss and avoid shortened transmission distance.

Q5: Why do long-haul EML-based 100G LR4 QSFP28 Transceiver run hotter than short-range SR4 and CWDM4 optical modules?
A: Different from low-power short-reach modules, HYTOPTODEVICE 100G LR4 QSFP28 Transceiver adopts professional EML lasers and built-in MUX/DEMUX components. High-power driving design supports stable 10km long-haul transmission, resulting in slightly higher normal operating temperature than short-distance optics.

Q6: What causes intermittent optical link flapping of ordinary 100G LR4 QSFP28 Transceiver under full traffic load operation?
A: Most generic modules suffer link flapping from thermal-induced optical offset or switch port voltage fluctuation under heavy load. HYTOPTODEVICE 100G LR4 QSFP28 Transceiver adopts reinforced optical alignment and anti-jitter power design to eliminate load-based intermittent link failures.

Q7: What laser chip configuration guarantees long-distance signal integrity of commercial-grade 100G LR4 QSFP28 Transceiver?
A: To meet 10km long-haul transmission standards, all HYTOPTODEVICE 100G LR4 QSFP28 Transceiver are equipped with high-performance EML electro-absorption modulated lasers. We abandon low-cost DML lasers to ensure ultra-stable long-distance signal transmission and low bit error rate.

Q8: How do premium 100G LR4 QSFP28 Transceiver avoid EEPROM checksum error reports from mainstream switches?
A: Generic modules often have EEPROM data corruption during writing or electrical spike damage. HYTOPTODEVICE 100G LR4 QSFP28 Transceiver adopts secondary verification factory writing process and anti-static protection design, completely avoiding switch-reported EEPROM checksum errors.

Q9: Why do high-stability 100G LR4 QSFP28 Transceiver resist link flapping under chassis vibration and high airflow scenarios?
A: Inferior modules have flawed latching structures and dimensional tolerances causing loose contact. HYTOPTODEVICE 100G LR4 QSFP28 Transceiver adopts precision-machined casing and reinforced locking mechanism, firmly fixed in switch ports to prevent vibration and airflow-induced link disconnection and flapping.

Q10: Is it feasible to extend transmission distance of standard 100G LR4 QSFP28 Transceiver to 20-30km via optical line amplifiers?
A: It is not applicable. LAN-WDM chromatic dispersion will severely distort signals beyond 10km, and optical amplification cannot fix signal distortion. HYTOPTODEVICE recommends matching ER4/ZR4 modules for 20km–30km long-haul scenarios to ensure error-free transmission.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
