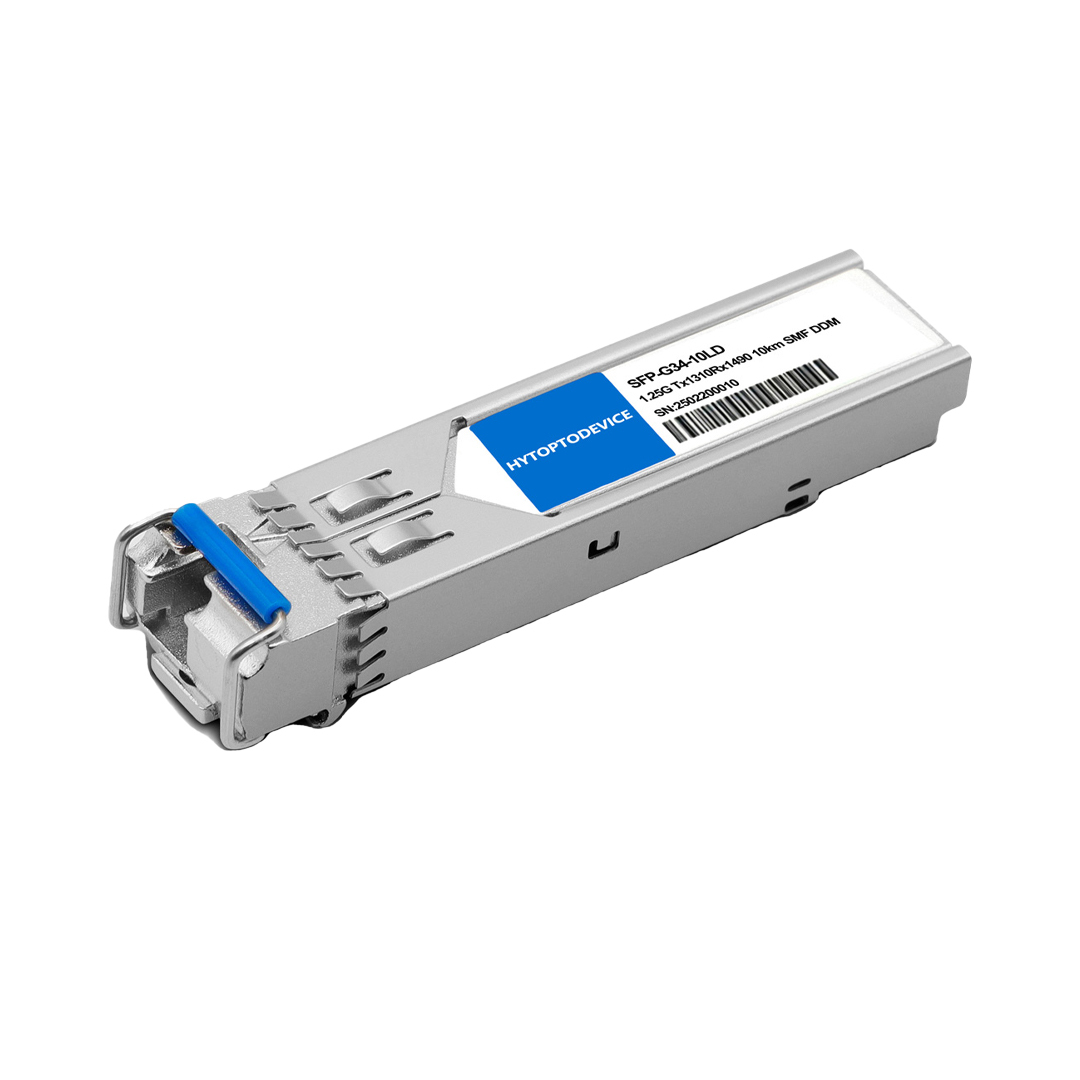

• HYTOPTODEVICE GLC-BX-U Cisco compatible 1000BASE-BX BIDI sfp module white background product photo

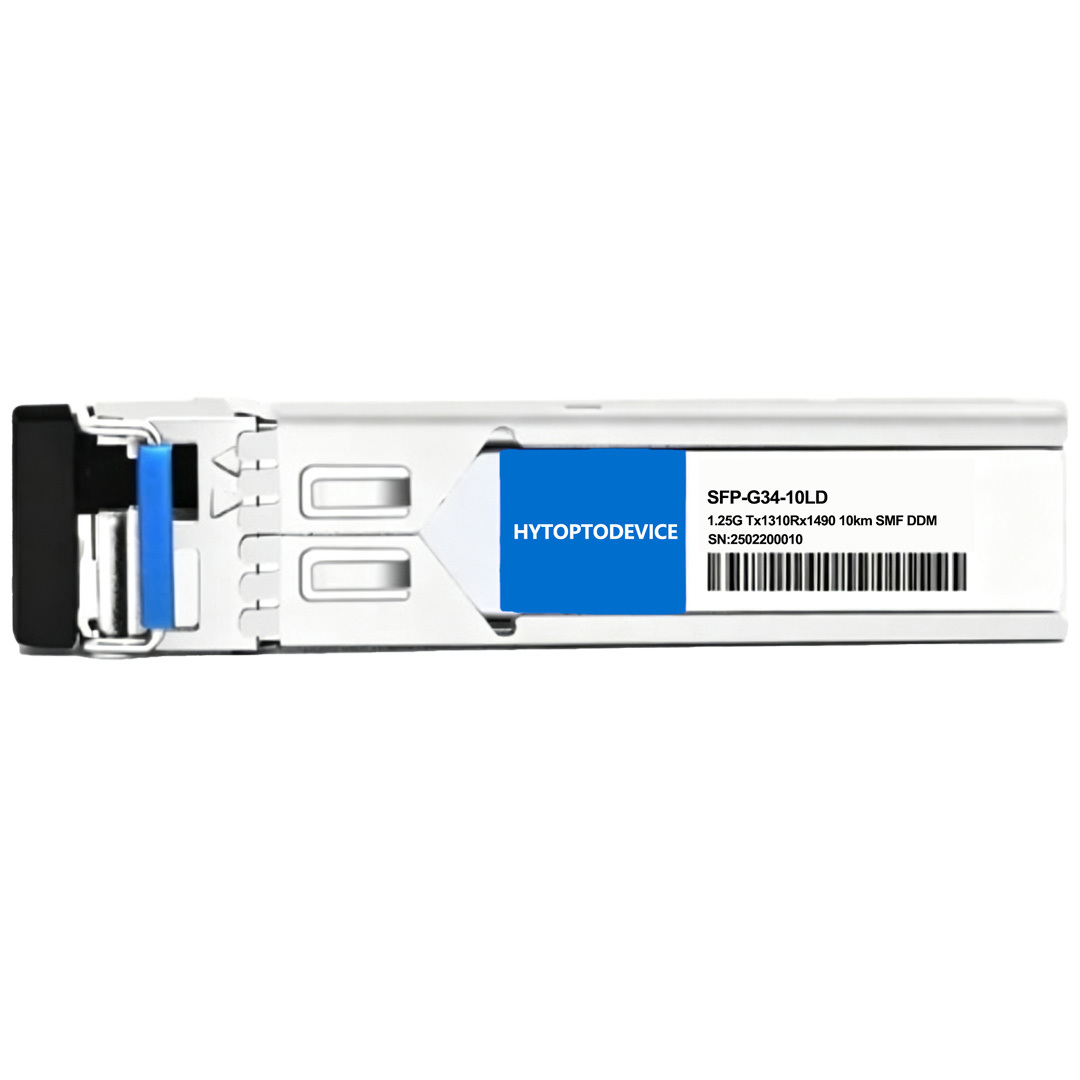

  • Simplex LC connector detail of HYTOPTODEVICE GLC-BX-U single fiber optical transceiver module white background
  • Golden finger view of HYTOPTODEVICE 1310nm/1490nm GLC-BX-U gigabit bidi SFP optic module white background
  • Brand label detail of HYTOPTODEVICE GLC-BX-U 10km single-mode BIDI optical transceiver sfp  module
  • HYTOPTODEVICE GLC-BX-U Cisco compatible 1000BASE-BX BIDI sfp module white background product photo
  • Simplex LC connector detail of HYTOPTODEVICE GLC-BX-U single fiber optical transceiver module white background
  • Golden finger view of HYTOPTODEVICE 1310nm/1490nm GLC-BX-U gigabit bidi SFP optic module white background
  • Brand label detail of HYTOPTODEVICE GLC-BX-U 10km single-mode BIDI optical transceiver sfp  module

GLC-BX-U Cisco Compatible 1000BASE-BX BIDI SFP Transceiver Module | Tx1310Rx1490 10km Simplex LC Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE GLC-BX-U BIDI SFP module features 1310nm TX/1490nm RX wavelength, 10km transmission over single-mode fiber. 100% compatible with Cisco and mainstream brands, no firmware changes required. Cost-effective OEM alternative with compatibility testing video proof to save more brand premium for your network project.support bulk wholesale,private label, bulk wholesale and custom EEPROM to global importers and distributors.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco GLC-BX-U SFP-G43-10LD
2 Cisco GLC-BX-10U SFP-G35-20LD
3 HPE H3C  JD098B  SFP-G34-20LD
4 Brocade  E1MG-BXU SFP-G34-40LD
5 H3C SFP-GE-LX-SM1310-BIDI SFP-G35-40LD
6 Juniper Networks  SFP-GE10KT13R14 SFP-G45-80LD
7 Huawei SFP-GE-LX-SM1310-BIDI SFP-G45-1BLD
8 Alcatel-Lucent 3HE00868AA
Description

Cisco GLC-BX-U Compatible 1000BASE-BX BIDI SFP  Module (SMF, 1310nm-TX/1490nm-RX, 10km, LC, DOM) | HYTOPTODEVICE

Product Overview

The HYTOPTODEVICE GLC-BX-U is a high-performance 1000BASE-BX BIDI SFP module designed for Cisco gigabit network infrastructure. It operates at 1310nm TX / 1490nm RX wavelength, delivers stable 10km transmission over standard single-mode fiber (SMF), and adopts a simplex LC fiber connector for single-fiber bidirectional communication. Fully compliant with IEEE 802.3ah and SFP MSA industry standards, this BIDI optic module greatly saves fiber resources and reduces deployment costs. It is widely used for enterprise campus uplinks, FTTH broadband access, and media converter long-distance interconnection scenarios.

Key Technical Specifications

Cisco Compatible  GLC-BX-U Vendor Name HYTOPTODEVICE
Form Factor SFP Max Data Rate 1.25Gbps
Wavelength TX1310nm/RX1490nm Max Distance 10km
Connector Simplex LC Transmitter Type 1310nm FP
Cable Type SMF Receiver Type PIN
TX Power -9.0~0dBm Receiver Sensitivity < -23.0dBm
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004 Operation Temperature 0 to 70°C (32 to 158°F)

 For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Operational Best Practices

Follow standardized operation rules to extend service life and maintain steady link performance of your BiDi SFP Transceiver:

  1. Complementary Pairing Requirement Bidirectional transceivers must be deployed in matched wavelength pairs. This TX1310/RX1490 BiDi SFP Transceiver requires a counterparty TX1490/RX1310 GLC-BX-D transceiver at the opposite fiber end; mismatched wavelength pairs cannot establish valid fiber links.
  2. Fiber Type Restriction Only use standard 9/125μm single mode fiber (SMF) with LC/UPC patch cords. This transceiver cannot operate normally on multi-mode fiber (MMF), which triggers severe attenuation and persistent random bit errors.
  3. Distance & Attenuation Control Optimized for stable 10km single-fiber links. For lab testing or field deployment under 5km, an external optical attenuator is mandatory to prevent receiver overpowering, signal saturation and permanent internal optical chip damage.
  4. Optical Port Dust Protection LC optical ports and fiber end faces are highly sensitive to dust and fingerprint contamination. Always reinstall protective dust caps on idle module ports and unused fiber connectors after disconnection.
  5. Hot-Plugging Operation Guidance This MSA-compliant BiDi SFP Transceiver supports safe hot swap. Leave several seconds between removal and reinsertion to let Cisco IOS complete full hardware recognition and avoid unexpected link flapping.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List and Supported Devices

1. Compatible Cisco Device Models

All HYTOPTODEVICE GLC-BX-U BIDI SFP modules are 100% compatible with mainstream Cisco switch, router and firewall series. Every unit passes real on-machine testing on physical Cisco devices to eliminate compatibility failures, system logs and port alarms. Plug-and-play design supports hot swapping for seamless network upgrade and expansion.
  • Cisco Catalyst Series Enterprise Switches: Fully compatible with widely deployed access and aggregation lines including the Catalyst 2960, 3650, 3750, 3850, 9200, and 9300 Series.

  • Cisco Nexus Data Center Platforms: Optimized for auxiliary or management links requiring 1G connectivity on Nexus 3000 and 9000 Series hardware.

  • Cisco Integrated Services Routers (ISR) & Aggregation Services Routers (ASR): Fully compatible with dedicated Gigabit Ethernet SFP slots on Cisco ISR 4000 and ASR 1000 Series routers.

2. Multi-Brand Cross Compatibility

This universal BiDi SFP Module supports cross-brand mixed-vendor network deployment, divided into two hardware compatibility categories:
  • Open-Brand Compatibility Works plug-and-play without custom coding for MSA standard open gear: MikroTik, TP-Link, D-Link, Fortinet, Zyxel gigabit switches & routers.
  • Locked-Brand Compatibility Adaptable to locked enterprise hardware including Cisco, Arista, HPE, Huawei, H3C, Juniper, Dell, Custom EEPROM programming eliminates system recognition warnings.

3. Free Custom EEPROM & Bulk OEM Service

We provide free EEPROM firmware rewrite, private label printing and customized packaging for all Bidirectional SFP Module bulk orders. Preload matched brand vendor ID data to remove transceiver error prompts; large-volume bulk orders enjoy exclusive discounted factory pricing with zero hidden service fees and priority production schedules.

Primary Application Scenarios

1.FTTH & FTTB Broadband Access Uplink

Ideal single-fiber BIDI solution for ISP fiber-to-home and fiber-to-building projects, saving half of fiber resources and lowering long-term operational costs.

2.Enterprise & Campus Gigabit LAN Interconnection

Perfect for core switch to access switch uplink connection in office parks, factory networks and campus LAN systems, supporting stable 10km long-distance gigabit transmission.

3.Security Monitoring & Industrial Ethernet Link

Reliable single-mode fiber connection for IP camera monitoring systems and industrial network equipment, supporting long-distance stable data transmission.


Connectivity Solutions (Applications)

1.1GbE Switch-to-Switch Connectivity
hytoptodevice 1000base-bx bidi transceiver tx1310rx1490 10km simplex LC smf
2.1GbE Switch to Media Converter Connectivity
hytoptodevice 1.25g bidi sfp module tx1310rx1490 simplex LC
3.1G Structured Cabling
HYTOPTODEVICE 1G 1000BASE-BX-U BIDI MODULE 10KM SMF

Core Product Features

1. Cut Expansion Costs by Up to 50%

Fully compatible with campus switches, this BiDi transceiver runs full-duplex over one fiber strand. No additional cabling, no extra switch ports—just plug in and scale your network at half the infrastructure cost
hytoptodevice 10km single fiber BiDi optic, reliable manufacturer for bidi transceiver module

2.Double Your Capacity, Zero Extra Cabling

Transmit and receive on a single strand. By leveraging integrated WDM technology, this BiDi transceiver eliminates redundant wiring and slashes expansion costs for Cisco campus networks.

Tx1310 Rx1490 simplex LC bidi transceiver module from hytoptodevice

3.1G BiDi SFP: High-Density, Low-Power Connectivity

Full-duplex Gigabit Ethernet in a compact SFP form factor. Lower power consumption means less cooling overhead and higher port density—perfect for scaling data center fabrics without expanding your power or fiber footprint.

hytoptodevice supply bulk wholesale BIDI transceiver MODULE with low power consumption and high-efficiency

4. Plug-and-Play Compatibility, Zero Friction

Preprogrammed EEPROM eliminates unsupported-module alerts and CLI configuration. Just insert, hot-swap, and go—compatible out of the box with leading switch platforms. Specific Compatibility Video available upon request.

HYTOPTODEVICE compatible  bidi transceiver module 10km SMF simplex lc

5. Tested to Failure. Shipped with Confidence.
Each module undergoes rigorous in-house testing—including signal integrity, bit error rate (BER), and temperature cycling—before leaving our Test Center . Built for maximum uptime, delivered with zero surprises.

HYTOPTODEVICE manufacturer offer BiDi transceiver module full aging test for stable 10km single‑fiber operation


Frequently Asked Questions

Q1: Will future Cisco IOS switch firmware upgrades break compatibility of these universal third-party BiDi SFP Module?
A1: Our HYTOPTODEVICE BiDi SFP Module follows universal MSA standards with fixed preloaded Cisco vendor ID coding. Regular Cisco IOS firmware updates will not trigger compatibility failures, and we supply free re-flashing support if rare recognition issues arise after system upgrades.

Q2: Will this BiDi SFP Module lose signal synchronization when connected to outdated legacy single fiber media converters for bulk campus monitoring projects?
A2: This transceiver uses standard gigabit WDM timing circuits to sustain consistent signal sync with most aging media converter hardware. We offer complimentary pre-deployment batch compatibility testing for legacy equipment before large bulk shipments.

Q3: Will practical transmission distance be shorter than rated 10km caused by regular fiber splice and patch cord attenuation loss?
A3: This BiDi SFP Module reserves a full 12dB optical power budget to offset cumulative fiber attenuation, splice loss and connector loss. Stable full 10km transmission performance is guaranteed under standard single-mode fiber deployment conditions.

Q4: Will low-grade internal silicon chips cause excessive jitter and higher latency on live Cisco campus business links?
A4: Every BiDi SFP Module is equipped with premium imported laser and receiver chips. Strict factory signal testing keeps jitter and latency within industrial standard ranges to maintain smooth low-delay gigabit data forwarding under full traffic loads.

Q5: How can we confirm this SFP is fitted with high-performance DFB laser instead of low-cost unstable laser components?
A5: We can supply complete component inspection and optical power test reports for any BiDi SFP Module batch upon request. Every unit undergoes full optical performance testing to verify DFB laser quality before bulk delivery.

Q6: Can this commercial BiDi SFP Module operate reliably inside unconditioned outdoor industrial cabinets with extreme temperature swings?
A6: This commercial-grade BiDi SFP Module runs steadily from 0℃ to +70℃, designed for indoor Cisco rack deployment. For uncooled outdoor industrial cabinets with wide temperature fluctuations, we provide dedicated industrial temperature optical modules as an alternative bulk solution.

Q7: Are the attached LC protective dust caps tight enough to prevent optical surface contamination during mass storage and pre-deployment handling?
A7: Each BiDi SFP Module comes with custom-fit elastic LC dust caps that fully seal the optical end face. The secure fit blocks dust, fingerprints and minor debris to avoid matching errors during mass on-site installation.

Q8: Why do bulk distributors have different prices for the same GLC-BX-U BiDi SFP Module spec?
A8: Price gaps come from chip grade, aging test standards, EEPROM customization and after-sales warranty terms. As direct factory HYTOPTODEVICE, we provide unified batch high-quality BiDi SFP Module with transparent wholesale pricing and zero hidden costs.

Q9: Will using third-party BiDi SFP Module void Cisco switch original warranty?
A9: This MSA compliant BiDi SFP Module conforms to universal industry standards. Mainstream Cisco official policies will not void device hardware warranty caused by qualified standard third-party transceivers.

Q10: Can this BiDi SFP Module provide complete official RoHS, CE and FCC certification documents to meet enterprise bulk tender, customs and environmental compliance audit standards?
A10: All HYTOPTODEVICE BiDi SFP Module fully pass RoHS hazardous substance testing, CE EMC and FCC safety testing. Complete official certification files can be provided on demand for project bidding, customs clearance and internal compliance audits.

Packaging & Custom OEM Solutions

Each module is individually sealed in ESD-safe anti-static packaging and ready for immediate shipment. For high-volume distributors, wholesalers, and system integrators, we offer flexible OEM programs—including custom logos, private labeling, and branded packaging—to help you build and protect your own brand.
HYTOPTODEVICE 1000base-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • 100% hardware-tested compatibility with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 certified manufacturing facility in Shenzhen
  • Full product range coverage:1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T
  • In-stock supply & fast global shipping, average lead time of 3–5 business days with DHL/FedEx express options
  • Dedicated pre-sales engineering support for custom configurations
  • Actual hardware,actual switches,actual results.we publish compatibility test video,eliminate compatibility anxiety. you can watch before you buy.
  • We can provide inspection and shipping videos to make you feel as if you are right here with the product.
  • Private Label support - EEPROM / firmware customization support

“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia

Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing



100% 3rd Party Compatible

Partial Test Demonstration
