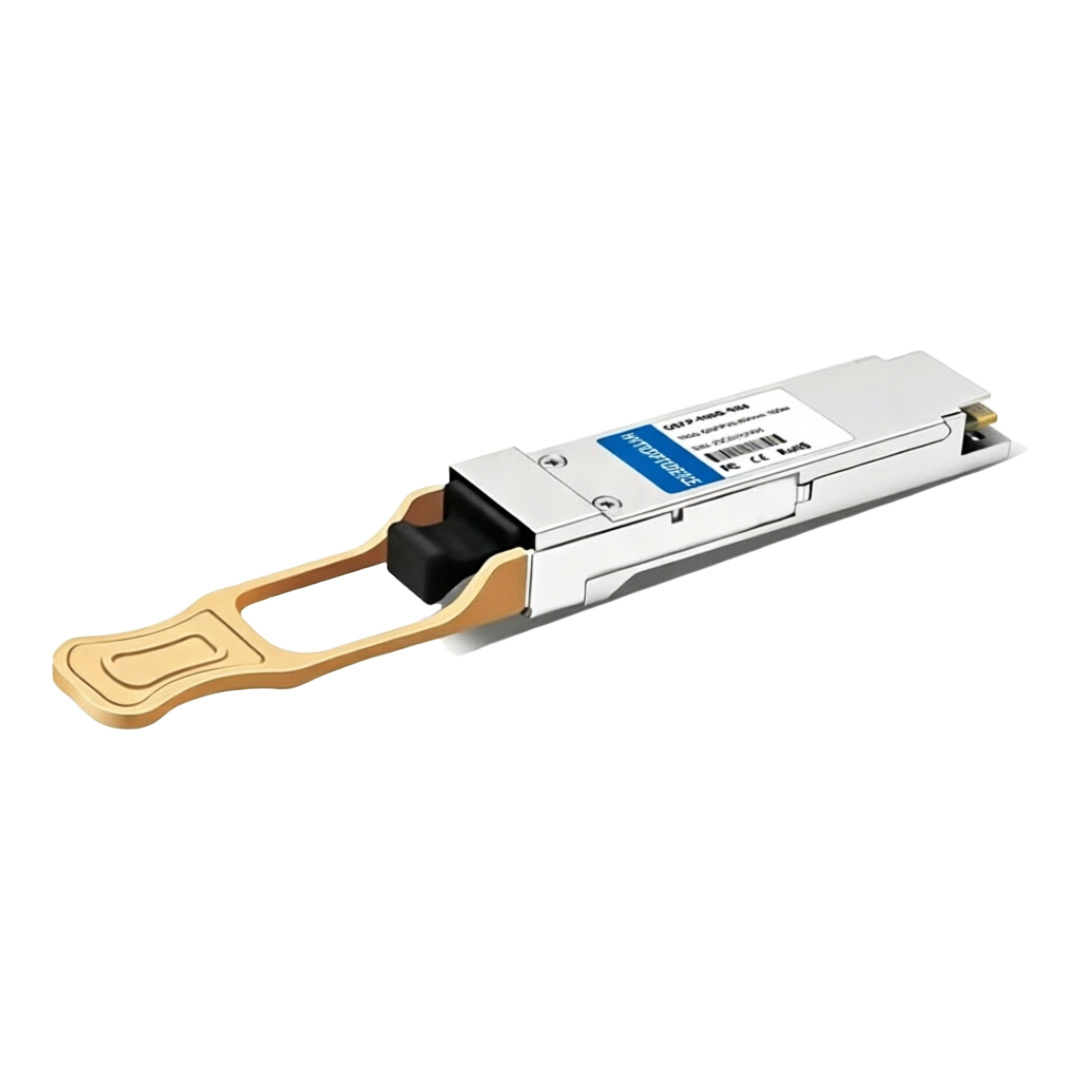

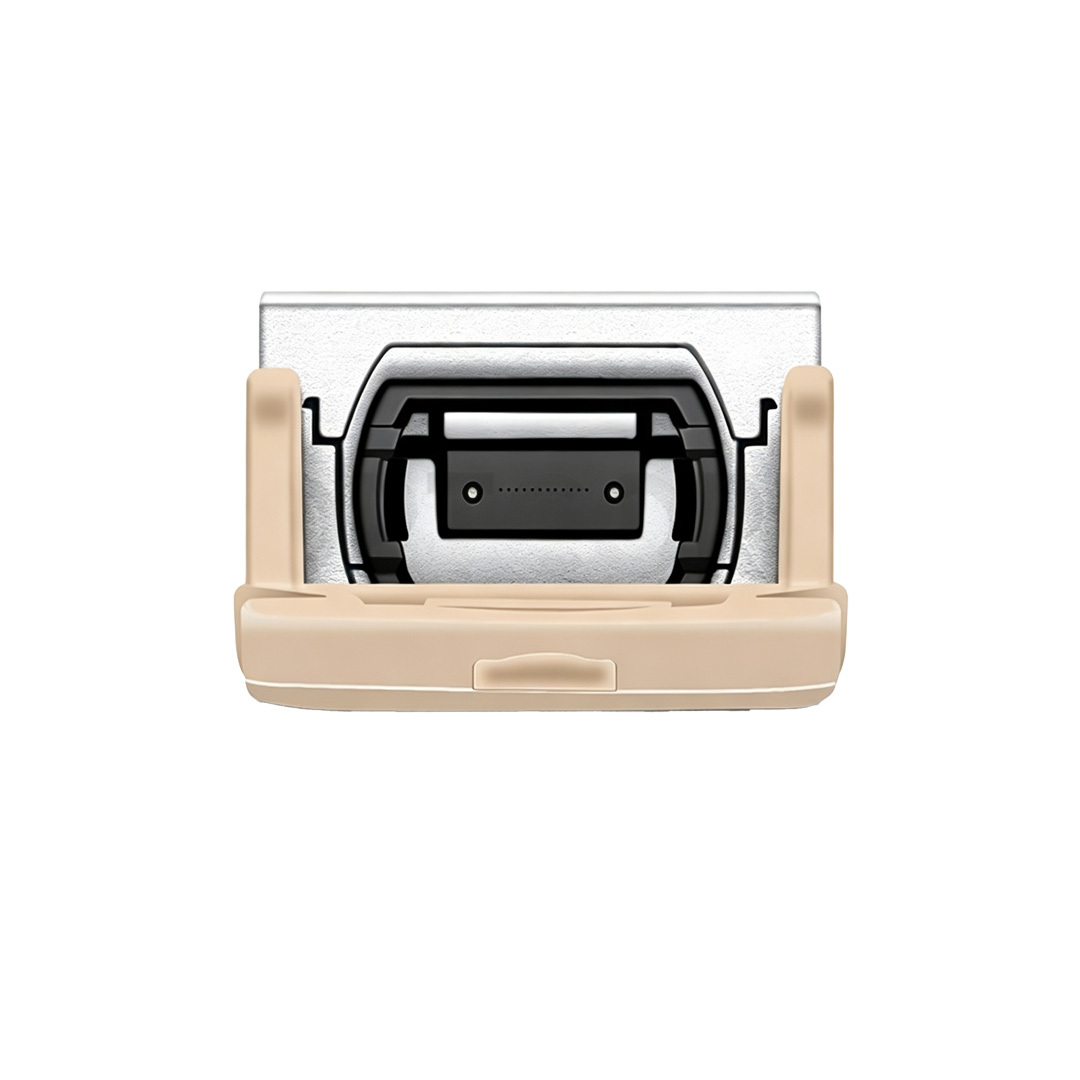

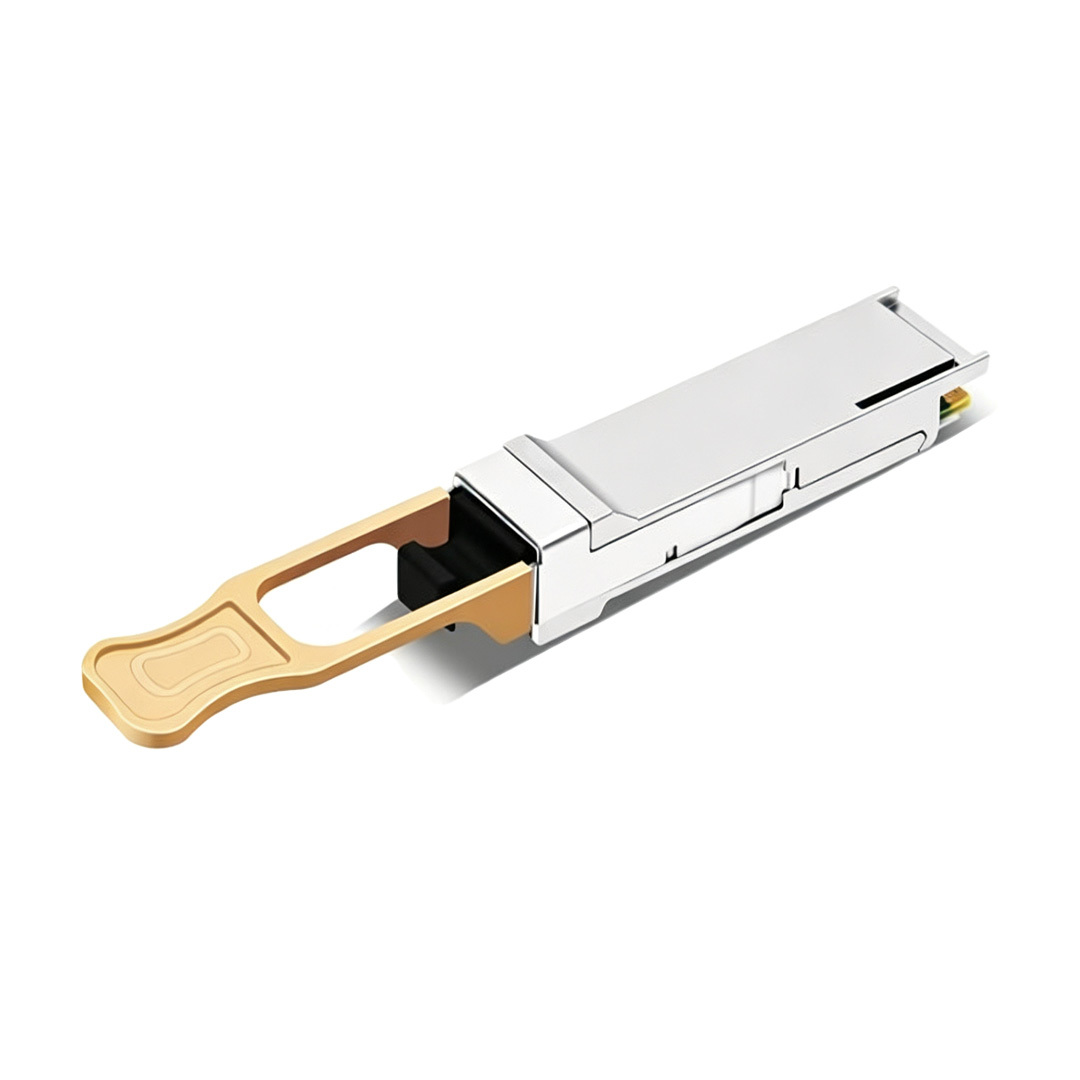

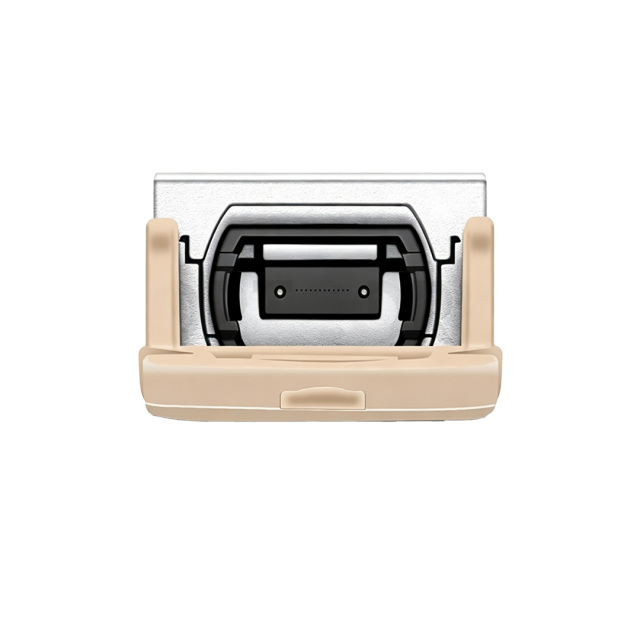

Arista QSFP-100G-SR4-S Compatible 100G QSFP28 SR4 Optical Transceiver Module | 100GBASE-SR4 850nm 100m MPO-12/UPC MMF | HYTOPTODEVICE

HYTOPTODEVICE 100G QSFP28 Transceiver SR4 fully compatible with Arista QSFP-100G-SR4-S, 850nm parallel multimode fiber, MPO-12 UPC connector, 70m OM3 / 100m OM4 reach, commercial 0–70°C operating temperature.  full DDM DOM support, 100% real-device tested with videos, zero-alarm plug-and-play on all Arista EOS leaf-spine switches and Cisco, Huawei, Juniper,  Arista. We supply bulk wholesale, OEM private labeling and custom vendor ID reprogramming for global importers, distributors and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco   QSFP-100G-SR4-S   QSFP28-100G-PSM4
2 Arista Networks QSFP-100G-SR4-S  QSFP28-100G-IR4
3 Huawei  QSFP-100G-SR4  QSFP28-100G-LR4
4 Juniper  JNP-QSFP-100G-SR4  QSFP28-100G-ER4L
5 H3C  QSFP-100G-SR4-MM850   QSFP28-100G-ZR4
6 HPE Aruba  JL309A QSFP28-100G-DR
7 HPE BladeSystem   845966-B21  QSFP28-100G-FR
8 Mellanox MMA1B00-C100D QSFP28-100G-LR
Description

Arista QSFP-100G-SR4-S Compatible 100GBASE-SR4 100G QSFP28  Transceiver SR4 | HYTOPTODEVICE
(100m, MMF, 850nm, MPO-12, DOM)

Product Overview

Our Arista QSFP-100G-SR4-S compatible transceiver is a high-precision drop-in replacement for short-reach data center interconnects.  Designed for 103.125Gbps total bandwidth via four independent 25.78Gbps NRZ optical lanes, it delivers stable low-latency 100G transmission with 850nm over OM3 and OM4 multimode fiber: up to 70 meters on OM3 MMF and extended 100 meters on OM4 MMF.Compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, and CAUI-4 standards,fully DDM/DOM support,featuring high-speed and low-latency, the 100G QSFP28 transceiver SR4 is ideal for data centres, high-performance computing networks, enterprise core and distribution layer applications.

Key Technical Specifications

Arista Compatible QSFP-100G-SR4-S Vendor Name HYTOPTODEVICE
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 850nm Max Distance 70m@OM3/100m@OM4
Connector MTP/MPO-12(UPC) Transmitter Type 850nm VCSEL
Cable Type MMF Receiver Type PIN
TX Power -8.4~+2.4dBm Receiver Sensitivity < -9.5dBm
Protocols 100G Ethernet, MSA Compliant Power Consumption < 2W

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Fiber Choice: Only works with OM3 / OM4 multi‑mode MPO‑12 trunk cable; single‑mode fiber cannot support 850nm SR4 transmission and will lead to link failure.

  • Distance Limit: Max 70m on OM3 MMF, max 100m on OM4 MMF; excessive splices, dirty end‑faces or sharp bends reduce actual working distance.

  • Cleanliness & Dust: Keep dust caps on whenever unattached. Clean fiber end-faces with a optical cleaning pen before insertion; dust causes over 80% of optical link failures.

  • Installation Specification: Hot‑plug supported; keep MPO connector end‑faces clean, observe minimum fiber‑bend radius requirements.

  • Port Configuration: Confirm host ports are set to 100G SR4 mode; do not mix SR4 with other 100G optical standards on the same link.
  • Operating Environment: Commercial temperature range 0°C‑70°C; maintain cabinet airflow to avoid module overheating.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Native Arista EOS Compatibility
This HYTOPTODEVICE 100G QSFP28 Transceiver SR4 delivers automatic, alert-free plug-and-play recognition on all Arista EOS networking hardware officially validated for the QSFP-100G-SR4-S transceiver specification. No manual port configuration tweaks, firmware patches or vendor license overrides are necessary; all embedded DDM DOM diagnostic functions operate natively via Arista CLI and eAPI web management portals. Fully compatible Arista product lines:

  • Arista 7050 Series Leaf-Spine Data Center Switches: 7050SX3, 7050CX3, 7050PX4 Series
  • Arista 7060 High-Density 100G Ethernet Switch Fabrics: 7060SX2, 7060DX4, 7060X4 Series
  • Arista 7280 Universal Metro & Campus Aggregation Switches: 7280SR3, 7280CR3, 7280PR4 Series
  • Arista Low-Latency HPC Top-of-Rack Platforms: 7130LB, 7132LB, 7135LB Ultra-Low Latency Switch Series

2. Multi-Brand Cross Compatibility

Built on universal industry MSA standards, HYTOPTODEVICE 100G QSFP28 SR4 compatible transceivers provide excellent cross‑brand interoperability. They work seamlessly with Arista, Cisco, Juniper, H3C, Dell, NVIDIA/Mellanox hardware and other more, supporting multi‑vendor hybrid networking and flexible short‑reach 100G data‑center deployment.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support


Primary Application Scenarios

  1. Hyperscale data center leaf-spine 100G multimode uplink expansion projects
  2. HPC high-performance computing low-latency server interconnections
  3. Enterprise core layer 100G aggregation MPO trunk upgrades
  4. Metro ISP central office 100G business broadband aggregation fabrics
  5. Global system integrator indoor turnkey multimode 100G bulk engineering deployments

Connectivity Solutions(Applications)

1. 100G Switch-to-Switch Interconnection

100G Switch-to-Switch interconnection diagram using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for Arista leaf-spine data center uplink deployment

2.100G Switch-to-NIC Direct Connection

100G Switch-to-NIC direct connection topology with HYTOPTODEVICE 100G QSFP28 transceiver SR4 for high-performance server cloud and storage transmission

3.
100G to 4×25G Breakout Link with Switch
 100G to 4x25G breakout link with Arista switch via MPO cable and HYTOPTODEVICE 100G QSFP28 transceiver SR4 for multi-port aggregation

4.
100G to 4×25G Breakout Link with NIC
100G to 4x25G breakout link with server NIC using HYTOPTODEVICE 100G QSFP28 transceiver SR4 for HPC and virtualization traffic distribution

The Core Feature

1. Low Power, High- Density 100G Connectivity for Data Center

HYTOPTODEVICE QSFP28 100G SR4 transceiver delivers ultra-stable 100Gbps transmission with industry-leading low power consumption. Engineered for maximum reliability in high-density data center environments.


2.Host-Device Tested for Proven Interoperability

Every transceiver is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

HYTOPTODEVICE QSFP‑40G‑SR4‑S compatible transceiver with verified Cisco multi‑generation switch interoperability

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 40G SR4 QSFP+ module comprehensive factory testing stable performance for Cisco platforms bulk wholesale orders


FAQ

Q1: Can I hot-swap this 100G QSFP28 SR4 module on active Arista switches without interrupting live traffic?

A: Yes, HYTOPTODEVICE100G QSFP28 transceiver SR4 supports full hot-swap, allowing plug-and-play replacement on active 100G ports without switch reboot or live traffic disruption.

Q2: Will third-party compatible SR4 transceivers void Arista switch hardware warranty?
A: No, protected by the Magnuson-Moss Warranty Act. HYTOPTODEVICE certified 100G QSFP28 transceiver SR4 will not invalidate original Arista device warranty and technical support services.

Q3: Why do Arista switches prompt unsupported transceiver alerts?
A: The alert is triggered by unmatched EEPROM vendor codes. Our 100G QSFP28 transceiver SR4 supports pre-flash and on-site recoding to eliminate all unsupported prompts for Arista EOS systems.

Q4: What is the transmission distance difference between OM3 and OM4 fiber for this SR4 module?
A: HYTOPTODEVICE 100G QSFP28 transceiver SR4 reaches 70m on OM3 multimode fiber and extends to 100m on high-performance OM4 MMF for longer rack-to-rack data center links.

Q5: Can two identical SR4 modules form a normal 100G link?
A: Yes, symmetric 850nm four-channel design allows two identical 100G QSFP28 transceiver SR4 modules to build stable bidirectional 100G end-to-end links without special pairing rules.

Q6: Does this SR4 module use LC duplex fiber patch cords?
A: No, HYTOPTODEVICE 100G QSFP28 transceiver SR4 adopts MPO-12 parallel multimode trunk cables to support four-channel parallel 100G transmission, incompatible with LC duplex cords.

Q7: What is the official operating temperature range of this Arista compatible SR4 module?
A: HYTOPTODEVICE 100G QSFP28 transceiver SR4 supports commercial-grade 0°C to 70°C constant-temperature operation, suitable for standard indoor data center rack environments.

Q8: Can this 100G SR4 module work with single-mode fiber?
A: No. The 850nm VCSEL parallel laser of 100G QSFP28 transceiver SR4 is dedicated to OM3/OM4 multimode fiber, and modal dispersion will cause link failure on single-mode fiber.

Q9: Is an optical attenuator required for short-distance 20m multimode links?
A: No. Built-in power regulation circuits inside HYTOPTODEVICE 100G QSFP28 transceiver SR4 automatically adapt to short-span links without additional attenuators.

Q10: Does this aftermarket SR4 module support full DDM/DOM monitoring?
A: Yes. Fully compliant with SFF-8636 standards, the 100G QSFP28 transceiver SR4 supports real-time monitoring of per-lane optical power, temperature and voltage via switch management systems.

Q11: Can this fixed 100G module auto-negotiate down to 40G or 25G speed?
A: No. HYTOPTODEVICE 100G QSFP28 transceiver SR4 is fixed-rate 100GBASE-SR4 module without multi-rate negotiation, only supporting standard 100G operation.

Q12: How is the stability of third-party SR4 modules compared with original Arista optics?
A: Our 100G QSFP28 transceiver SR4 adopts industrial-grade VCSEL laser and PIN receiver chips, with full 100G aging testing, achieving OEM-level stability and ultra-low bit error rate for long-term data center operation.

Q13: Does this SR4 module meet international safety and environmental standards?
A: Yes. HYTOPTODEVICE 100G QSFP28 transceiver SR4 passes CE, FCC, RoHS and IEC 60825-1 Class 1 eye-safe laser certification, complying with global data center deployment specifications.

Q14: Can this QSFP28 module work on legacy 40G QSFP ports?
A: No. The 100G QSFP28 transceiver SR4 relies on 4×25G high-speed circuit design, which is physically and functionally incompatible with traditional 40G QSFP ports.

Q15: Can this module realize cross-brand interconnection between Arista and Huawei/H3C/Cisco?
A: Yes. Complying with universal MSA and IEEE 802.3bm standards, the 100G QSFP28 transceiver SR4 supports stable cross-brand links between different mainstream network brands without disconnection.

Q16: What is the maximum power consumption of this 100G SR4 transceiver?
A: The optimized circuit design of HYTOPTODEVICE 100G QSFP28 transceiver SR4 ensures peak power consumption ≤2.5W, reducing rack thermal pressure for high-density 100G port deployment.

Q17: Is this SR4 module applicable to SDH/SONET telecom transmission systems?
A: No. The 100G QSFP28 transceiver SR4 is optimized for 100G Ethernet and Fiber Channel services, not suitable for synchronous telecom transmission frameworks.

Q18: Does this module support APC fiber end-face connectors?
A: No. HYTOPTODEVICE 100G QSFP28 transceiver SR4 only matches standard MPO-12 UPC connectors; APC end-face will cause severe signal attenuation and link failure.

Q19: Why link light is on but no data transmission on SR4 module?
A: Steady link light only indicates optical signal detection. Zero data packets on 100G QSFP28 transceiver SR4 are usually caused by VLAN mismatch, STP port blocking or incorrect MTU configuration.

Q20: What happens if the operating temperature exceeds 70°C?
A: Long-term over-temperature operation will cause laser wavelength drift and increased bit error rate of the 100G QSFP28 transceiver SR4, resulting in performance degradation or permanent hardware failure.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE 10Gbase-bx bidi transceiver  custom packaging


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
